911397 (LM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, Kawasaki (SN: 022466 - 029999) Wheels And Adjusters Parts Diagram

21" Self-Propelled Walk-Behind Mower, Kawasaki

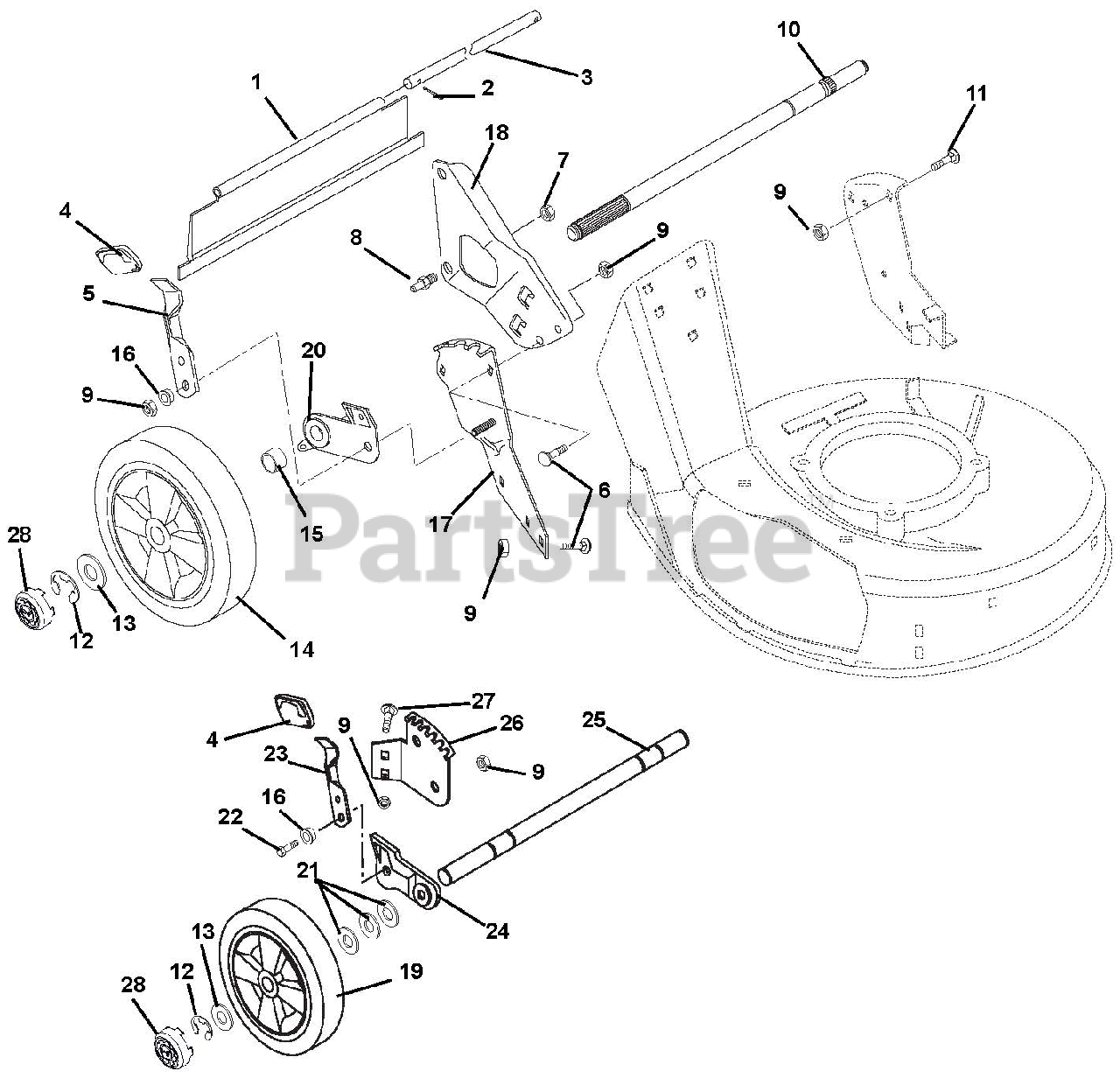

Wheels And Adjusters Parts Diagram

  • Title

1

Ariens 07522300

REAR PROTECTIVE GUARD, S.P.

$45.99

$

In Stock, only 1 left!

0

2

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

Note: (911339, 340)

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

Note: (911397)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 01140067

ROD

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 07513600

KNOB

Note: (911339)

$7.99

$

In Stock, only 2 left!

0

4

Ariens 07513600

KNOB

Note: (911397, 340)

$7.99

$

In Stock, only 2 left!

0

5

Ariens 01242000

LEVER, HEIGHT ADJUSTMENT

$25.99

$

In Stock, only 1 left!

0

6

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (911339, 340)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (911397)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 01167100

HANDLEBAR STUD

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (911339)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (911340)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (911397)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01149500

REAR AXLE,5/8 DIA

$140.99

$

Usually ships in 4-12 days

0

11

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

12

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (911340, 397)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (911339)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

Note: (911339)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

Note: (911340, 397)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07101035

WHEEL, ASSEMBLY CLASSIC LM- LH

$45.99

$

In Stock, Qty 14

0

14

Ariens 07101038

WHEEL, 10.3" O.D X 2" W RHS

$45.99

$

Usually ships in 4-12 days

0

15

Ariens 01149600

SPACER TUBE, SELF PROPEL

Note: (911339, 340)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 01149600

SPACER TUBE, SELF PROPEL

Note: (911397)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

Note: (911339)

$2.49

$

In Stock, only 1 left!

0

16

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

Note: (911340, 397)

$2.49

$

In Stock, only 1 left!

0

17

Ariens 01154251

QUADRANT, REAR LH

$62.99

$

In Stock, only 1 left!

0

17

Ariens 01154351

QUADRANT, REAR RH

$55.99

$

Usually ships in 4-12 days

0

18

Ariens 01137251

RH HANDLEBAR MTG. BRKT

$50.99

$

In Stock, only 1 left!

0

18

Ariens 01137151

LH HANDLEBAR MTG. BRKT

$55.99

$

In Stock, only 1 left!

0

19

Ariens 07100935

WHEEL, 7.5" OD X 1.75" WIDE

$25.99

$

Usually ships in 4-12 days

0

20

Ariens 04089400

REAR BRACKET & BEARING ASSY LH

$45.99

$

Usually ships in 4-12 days

0

20

Ariens 01150400

REAR BRACKET & BEARING ASSY RH

$112.99

$

Usually ships in 4-12 days

0

21

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

Note: (911339)

$2.49

$

In Stock, only 1 left!

0

22

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (911339)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

Note: (911339)

$20.99

$

In Stock, only 1 left!

0

24

Ariens 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

Note: (911339)

$83.99

$

Usually ships in 4-12 days

0

24

Ariens 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

Note: (911339)

$64.99

$

In Stock, only 1 left!

0

25

Ariens 01168900

FRONT AXLE

Note: (911339)

$64.99

$

Usually ships in 4-12 days

0

26

Ariens 01154051

FRONT QUADRANT, LH

Note: (911339)

$51.99

$

In Stock, only 1 left!

0

26

Ariens 01154151

FRONT QUADRANT, RH

Note: (911339)

$

$

Not available

27

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

Note: (911339)

$2.99

$

In Stock, Qty 20+

0

28

Ariens 07100939

HUB CAP, LM WHEEL

Note: (911339)

$4.99

$

Usually ships in 4-12 days

0

28

Ariens 07100939

HUB CAP, LM WHEEL

Note: (911340, 397)

$4.99

$

Usually ships in 4-12 days

0

29

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (911339, 340)

$1.49

$

In Stock, Qty 20+
