911397 (LM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, Kawasaki (SN: 022466 - 029999) Handlebar And Controls Parts Diagram

21" Self-Propelled Walk-Behind Mower, Kawasaki

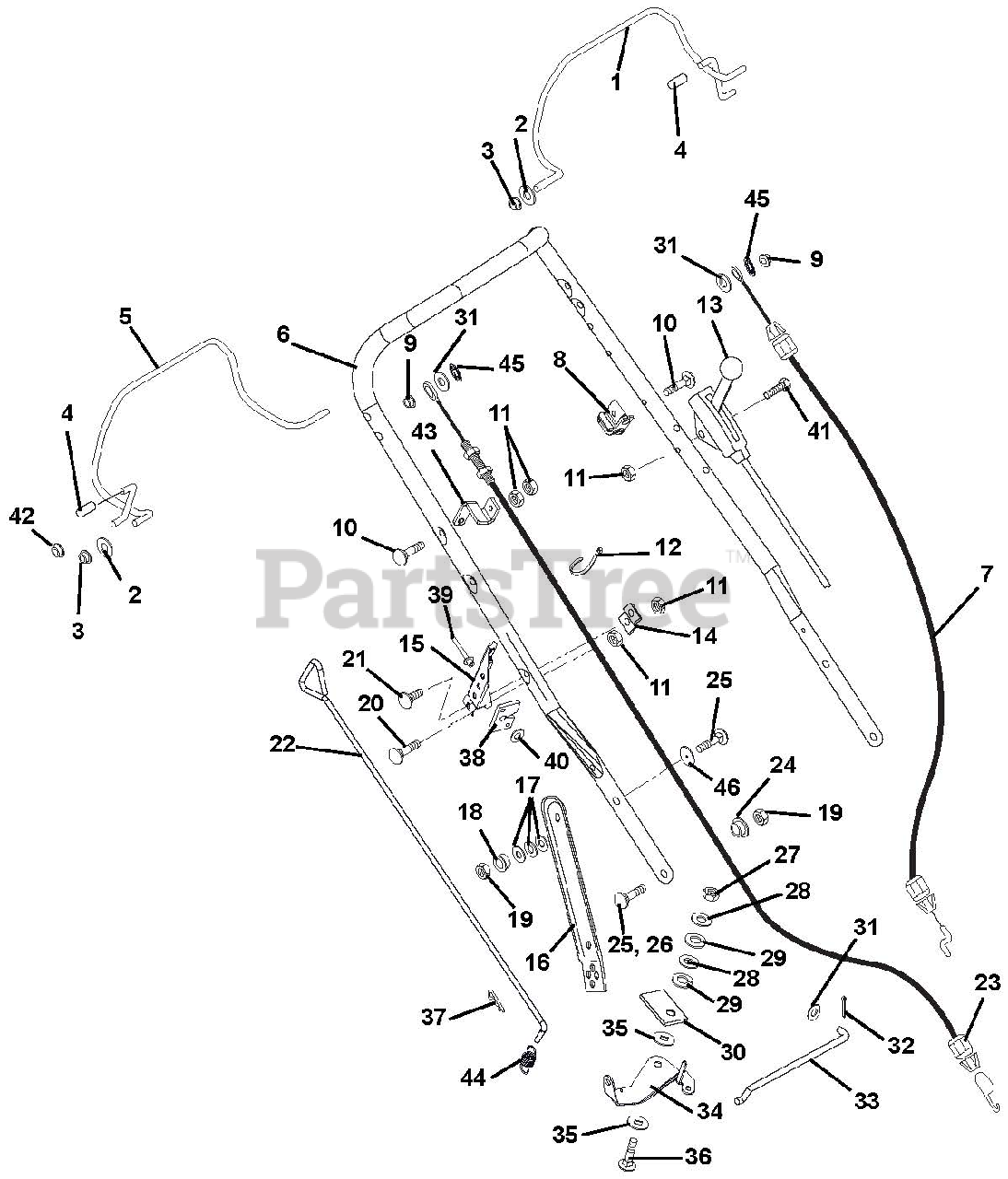

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 01245151

BAIL, WBLM ENGINE

$56.99

$

Usually ships in 4-12 days

0

2

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

4

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

5

Ariens 01245251

BAIL, WBLM TRACTION

$75.99

$

In Stock, only 1 left!

0

6

Ariens 01330051

HANDLE BAR, CLASSIC LM21

$232.99

$

Usually ships in 4-12 days

0

7

Ariens 01292500

CABLE, ENGINE - ADJUSTABLE

Note: (911397)

$42.99

$

In Stock, only 4 left!

0

7

Ariens 01290200

CABLE, OPC CLASSIC LM CE DOV

Note: (911339, 340)

$

$

Not available

8

Ariens 01245651

BRKT, ENGINE CABLE ANCHOR

$

$

Not available

9

Ariens 02215300

PUSH NUT, .25

Note: (911397)

$1.99

$

In Stock, Qty 16

0

10

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 4 left!

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (911340, 397)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (911339)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07517300

CABLE TIE LG 5-1/2

Note: (911397)

$

$

Not available

12

Ariens 07517300

CABLE TIE LG 5-1/2

Note: (911339, 340)

$

$

Not available

13

Ariens 06948100

CABLE, LOCKOUT CONTROL

Note: (911340, 397)

$68.99

$

Usually ships in 4-12 days

0

14

Ariens 01141851

BRACE, SPEED CONTROL

$21.99

$

Usually ships in 4-12 days

0

15

Ariens 04761851

BRKT, SPD CONTROL SLOTTED
(Superseded to 51119700)

$23.99

$

Usually ships in 4-12 days

0

16

Ariens 01150051

LINK, HANDLEBAR ADJUSTMENT LH

$38.99

$

Usually ships in 4-12 days

0

16

Ariens 01150151

LINK, HANDLEBAR ADJUSTMENT RH

$27.99

$

Usually ships in 4-12 days

0

17

Ariens 01178700

WASHER, BELLEVILLE YWZC

$2.49

$

In Stock, Qty 6

0

18

Ariens 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, Qty 12

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06200010

BLT-RDHDSQNK .25-20X1.38 GR5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 18

0

21

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 04732100

SPEED CONTROL ROD

$34.99

$

Usually ships in 4-12 days

0

23

Ariens 06900013

CABLE, WBLM TRACTION

$59.99

$

In Stock, only 2 left!

0

24

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

25

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

Note: (911339, 340)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

30

Ariens 01154800

PRESSURE FLANGE

$7.99

$

Usually ships in 4-12 days

0

31

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (911397)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (911339, 340)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 01126100

SHIFT LINK

$21.99

$

Usually ships in 4-12 days

0

34

Ariens 04756800

CRANK, SPEED CONTROL BELL

$

$

Not available

35

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

36

Ariens 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 04760400

PAD, RUBBER SUPPORT

$

$

Not available

39

Ariens 06815700

RVT .187X.575 DOME AL BLACK

$1.49

$

In Stock, only 2 left!

0

40

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

41

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

Note: (911340, 397)

$2.99

$

Usually ships in 4-12 days

0

42

Ariens 07008200

NUT-PUSH .312 DIA. PAL

Note: (911339, 340)

$2.49

$

In Stock, Qty 20+

0

43

Ariens 01245451

BRKT, TRACTION CABLE ANCHOR

$28.99

$

Usually ships in 4-12 days

0

44

Ariens 08300432

SPRING, EXTENSION

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 05717600

RG-RTNG-EXT .250X.010

Note: (911340)

$0.99

$

In Stock, Qty 17

0

46

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0
