911379 (LMSPE) - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru (SN: 055000 & Above) Transmission And Height Of Cut Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru

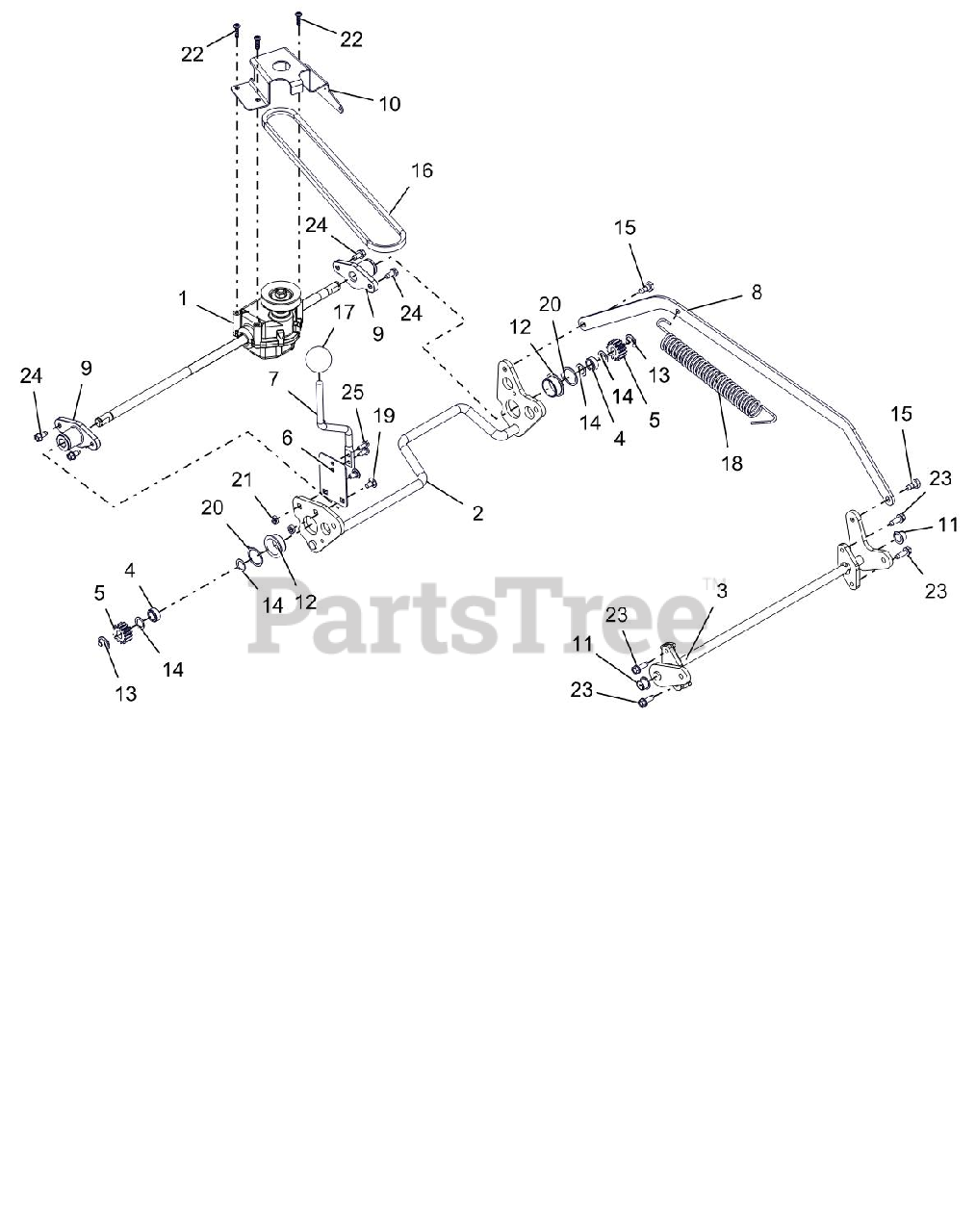

Transmission And Height Of Cut Parts Diagram

  • Title
1

Ariens 04509200

TRANSAXLE, AUTOMATIC, LM, 9:1

$79.99

$

In Stock, only 1 left!

0

2

Ariens 04742367

WLDMT, REAR AXLE

$78.99

$

Usually ships in 4-12 days

0

3

Ariens 04516067

WMT, LM FRONT AXLE

$103.99

$

In Stock, only 1 left!

0

4

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

$3.49

$

In Stock, only 3 left!

0

5

Ariens 04507500

GEAR, PINION, LM WHEEL DRIVE

$6.99

$

In Stock, Qty 20+

0

6

Ariens 04513751

PLATE, HOC SPRING

$33.99

$

In Stock, only 1 left!

0

7

Ariens 04516167

LEVER, HOC ADJUSTMENT

$146.99

$

Usually ships in 4-12 days

0

8

Ariens 04852859

LINKAGE, HOC CONNECT

$22.99

$

Usually ships in 4-12 days

0

9

Ariens 04516900

HUB, LM REAR AXLE

$17.99

$

In Stock, Qty 20+

0

10

Ariens 04732651

BRKT, TRANSMISSION BELT GUIDE

$83.99

$

Usually ships in 4-12 days

0

11

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

12

Ariens 05501124

BSHG-FLG 1.0X1.125X.50X1.375 R

$3.99

$

In Stock, Qty 20+

0

13

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07001708

BOLT, SHLDR .320X.210X.25-20

$2.99

$

In Stock, only 2 left!

0

16

Ariens 07200633

V-BELT, 3L-WRAPPED

$17.99

$

In Stock, Qty 20+

0

17

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 6

0

18

Ariens 08300625

SG-TENS .121X1.00X6.5 WLD

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 1 left!

0

21

Ariens 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

22

Ariens 07400112

SCR-TAP 10-14X.75PLSTITE BLKOX

$1.99

$

Usually ships in 4-12 days

0

23

Ariens 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

24

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0
