911379 (LMSPE) - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru (SN: 000101 - 020068) Electrical_911379 Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru

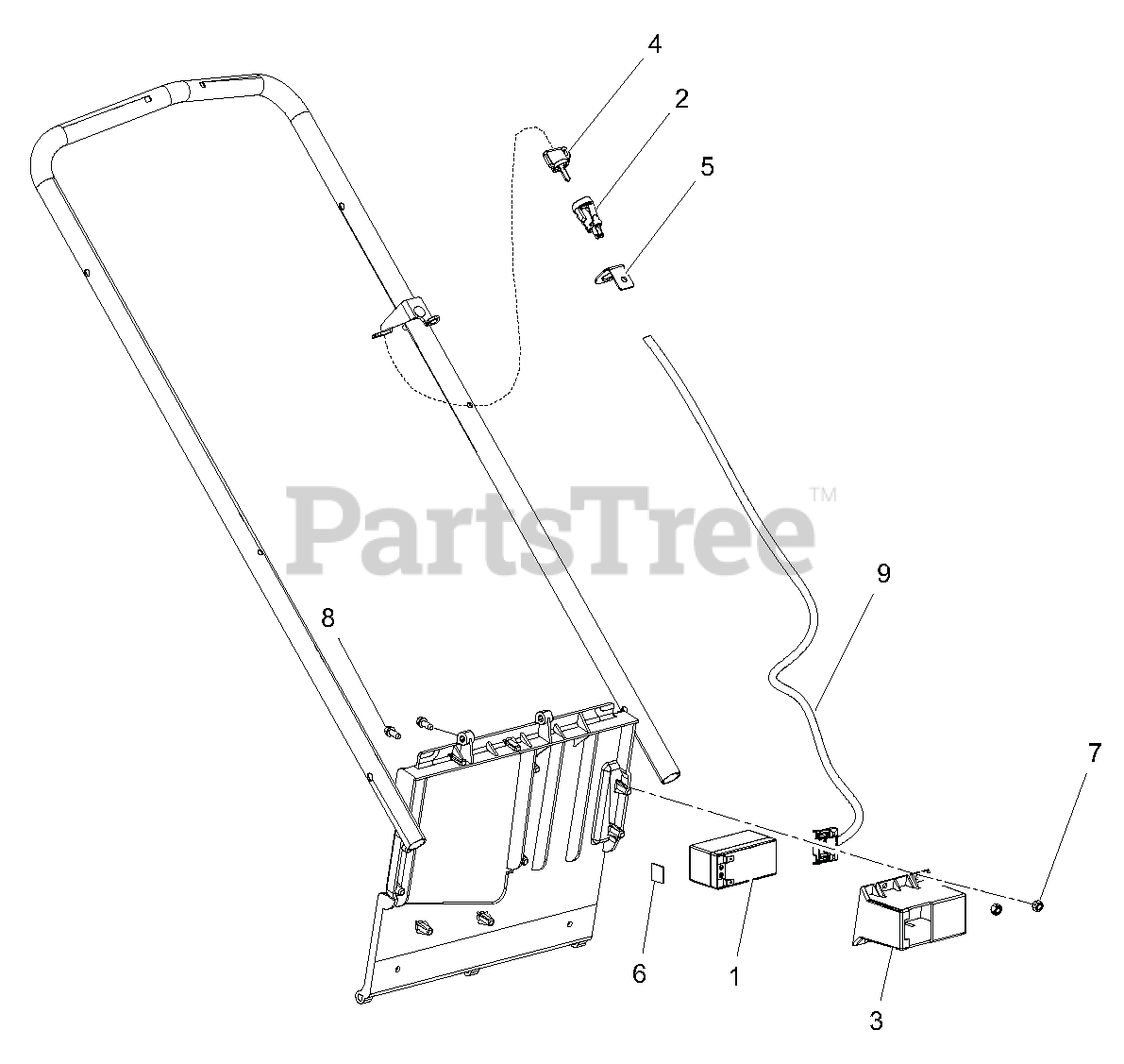

Electrical_911379 Parts Diagram

  • Title
1

Ariens 04536800

BATTERY,LM(SEE BULLETIN B2117)

$

$

Not available

2

Ariens 04536900

SWITCH, KEY

$

$

Not available

3

Ariens 04537200

COVER, BATTERY

$5.99

$

Usually ships in 4-12 days

0

4

Ariens 04556300

KEYS, IGNITION

$5.99

$

In Stock, only 3 left!

0

5

Ariens 04573351

BRKT, KEY SWITCH

$

$

Not available

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 07400103

@SCR-TAP .25-20X.62 HWH TR YWZ
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

9

Ariens 04537100

HARNESS, ELEC START - SUBARU

$34.99

$

In Stock, only 1 left!

0

10

Ariens 04676400

CHARGER, BATTERY - CE

Note: (N/S)

$

$

Not available
