911375 (LMSP) - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru (SN: 035000 - 054999) Handlebar And Controls Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru

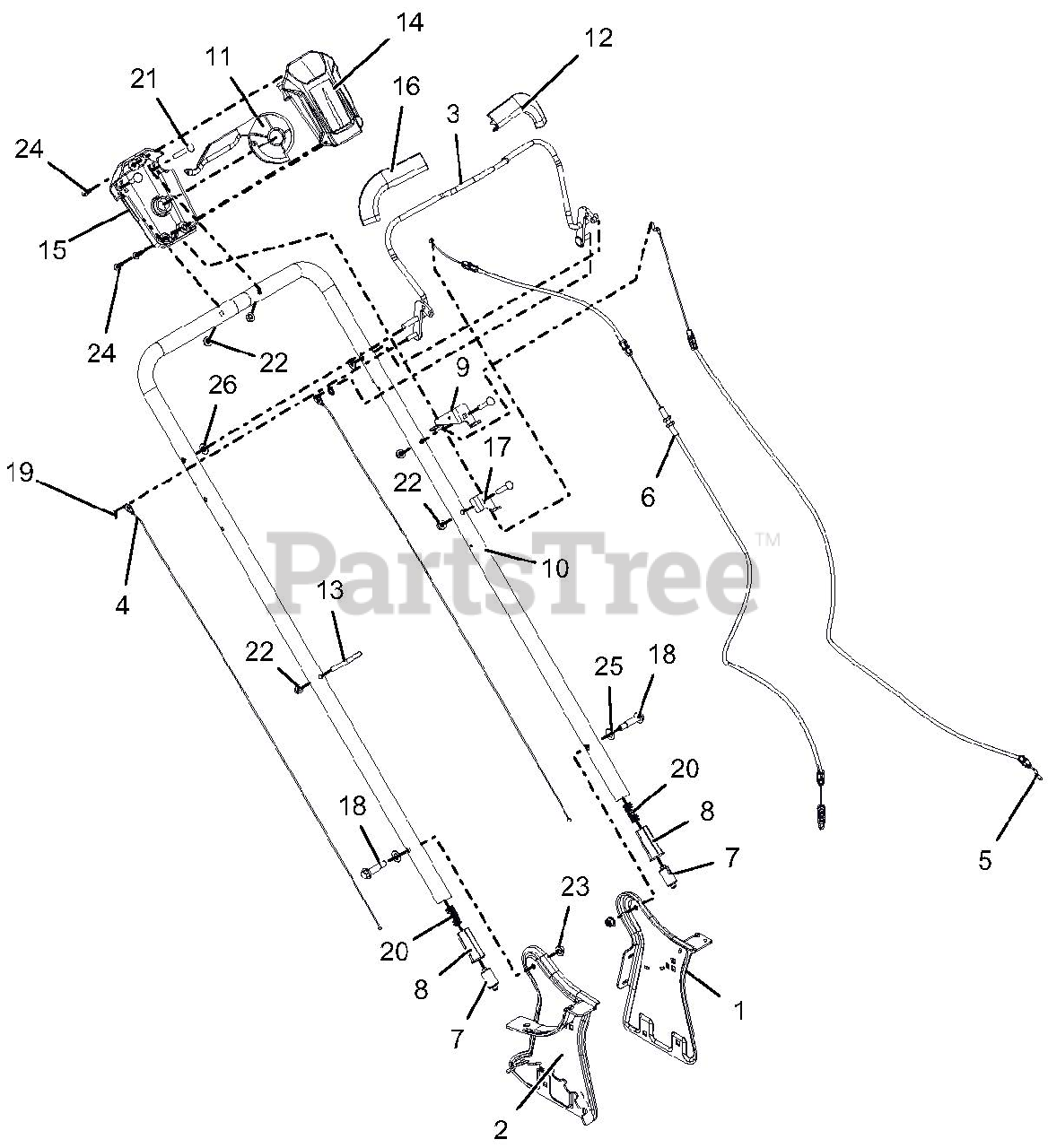

Handlebar And Controls Parts Diagram

  • Title
1

Ariens 04516451

SUPPORT, LH HANDLEBAR

$51.99

$

Usually ships in 4-12 days

0

2

Ariens 04516351

SUPPORT, RH HANDLEBAR

$190.99

$

Usually ships in 4-12 days

0

3

Ariens 04535559

WLDMT, OPC BAIL

$90.99

$

Usually ships in 4-12 days

0

4

Ariens 06900528

CABLE, LM HANDLE ADJUST

$6.99

$

In Stock, only 4 left!

0

5

Ariens 06900622

CABLE, OPC, RAZOR LM

$20.99

$

In Stock, only 1 left!

0

6

Ariens 06900535

CABLE, DRIVE CONTROL

$36.99

$

In Stock, only 2 left!

0

7

Ariens 04521400

PLUNGER, HANDLEBAR LOCKING

$7.99

$

In Stock, Qty 7

0

8

Ariens 04528600

INSERT, HANDLEBAR ADJUST

$3.99

$

In Stock, Qty 12

0

9

Ariens 04533651

BRKT, CABLE ANCHOR

$45.99

$

In Stock, only 1 left!

0

10

Ariens 04535351

HANDLEBAR, LM

$

$

Not available

11

Ariens 04535400

HANDLE, DRIVE CONTROL

$5.99

$

In Stock, Qty 20+

0

12

Ariens 04535600

GUARD, FINGER - LH

$

$

Not available

13

Ariens 04535767

HOLDER, RECOIL CORD

$17.99

$

Usually ships in 4-12 days

0

14

Ariens 04549000

HOUSING, UPPER DRIVE CONTROL

$6.99

$

Usually ships in 4-12 days

0

15

Ariens 04549100

HOUSING, LOWER DRIVE CONTROL

$11.99

$

In Stock, only 1 left!

0

16

Ariens 51117000

HAND GRIP W/ DECAL

$56.99

$

In Stock, only 1 left!

0

17

Ariens 04575351

BRKT, CABLE - DRIVE

$23.99

$

Usually ships in 4-12 days

0

18

Ariens 07001709

BLT-SHLDR, .50X1.15X.312-18GR5

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 19

0

20

Ariens 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 6

0

21

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 07400101

SCR-TAP 12-14X.75PLSTITE @BLZC

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06400840

WSHR,.385X.745X.030 STL YWZC
(Superseded to 06401107)

$2.49

$

In Stock, only 1 left!

0

26

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
