911375 (LMSP) - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru (SN: 027001 - 034999) Mower Deck And Bagger Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru

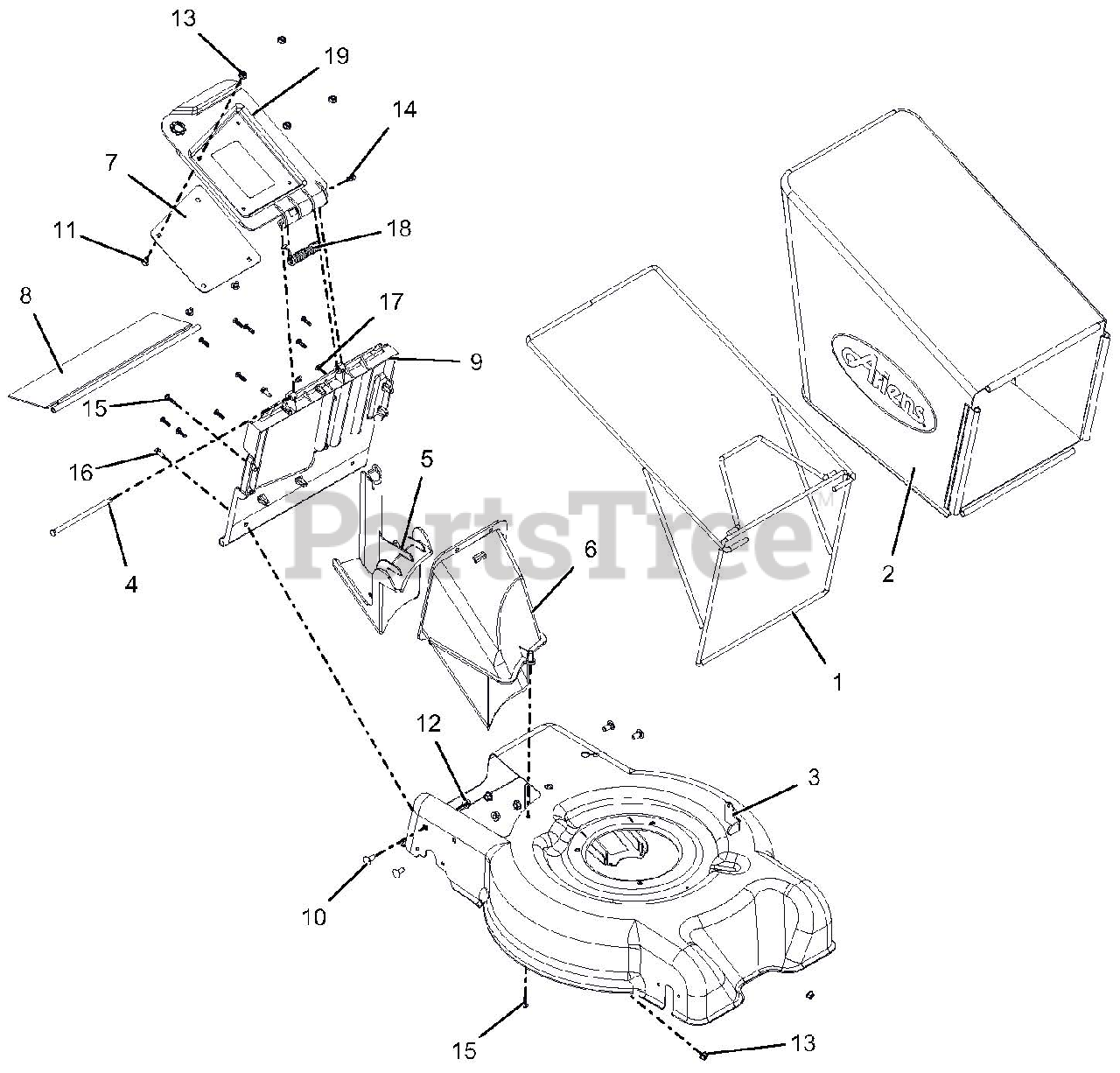

Mower Deck And Bagger Parts Diagram

  • Title

1

Ariens 04718959

FRAME, BAGGER

$139.99

$

Usually ships in 4-12 days

0

2

Ariens 04544100

BAGGER, ARIENS LM
(Superseded to 05088500)

$28.99

$

Usually ships in 4-12 days

0

3

Ariens 51116700

DECK W/ SAFETY DECAL

$

$

Not available

4

Ariens 00475800

PIN, 5/16 X 5.80"

$9.49

$

Usually ships in 4-12 days

0

5

Ariens 04534300

PLUG, MULCH

$17.99

$

In Stock, only 1 left!

0

6

Ariens 04547900

CHUTE, REAR DISCHARGE LM

$35.99

$

Usually ships in 4-12 days

0

7

Ariens 04661051

PLATE, REAR DOOR

$30.99

$

Usually ships in 4-12 days

0

8

Ariens 04835600

GUARD, REAR DECK

$

$

Not available

9

Ariens 04835700

HANGER, REAR BAG

$21.99

$

Usually ships in 4-12 days

0

10

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07400101

SCR-TAP 12-14X.75PLSTITE @BLZC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07400103

@SCR-TAP .25-20X.62 HWH TR YWZ
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

17

Ariens 07500301

PLUG,5/16 HOLE,.125 MATL PLSTC

$

$

Not available

18

Ariens 08322400

SG-TORS .120X.68X3.09

$6.99

$

Usually ships in 4-12 days

0

19

Ariens 51116900

REAR DOOR W/ SAFETY DECAL

$102.99

$

Usually ships in 4-12 days

0
