911373 (LMP) - Ariens Razor 21" Push Walk-Behind Mower, 175cc Subaru (SN: 026017 - 034999) Engine And Blade Parts Diagram

Razor 21" Push Walk-Behind Mower, 175cc Subaru

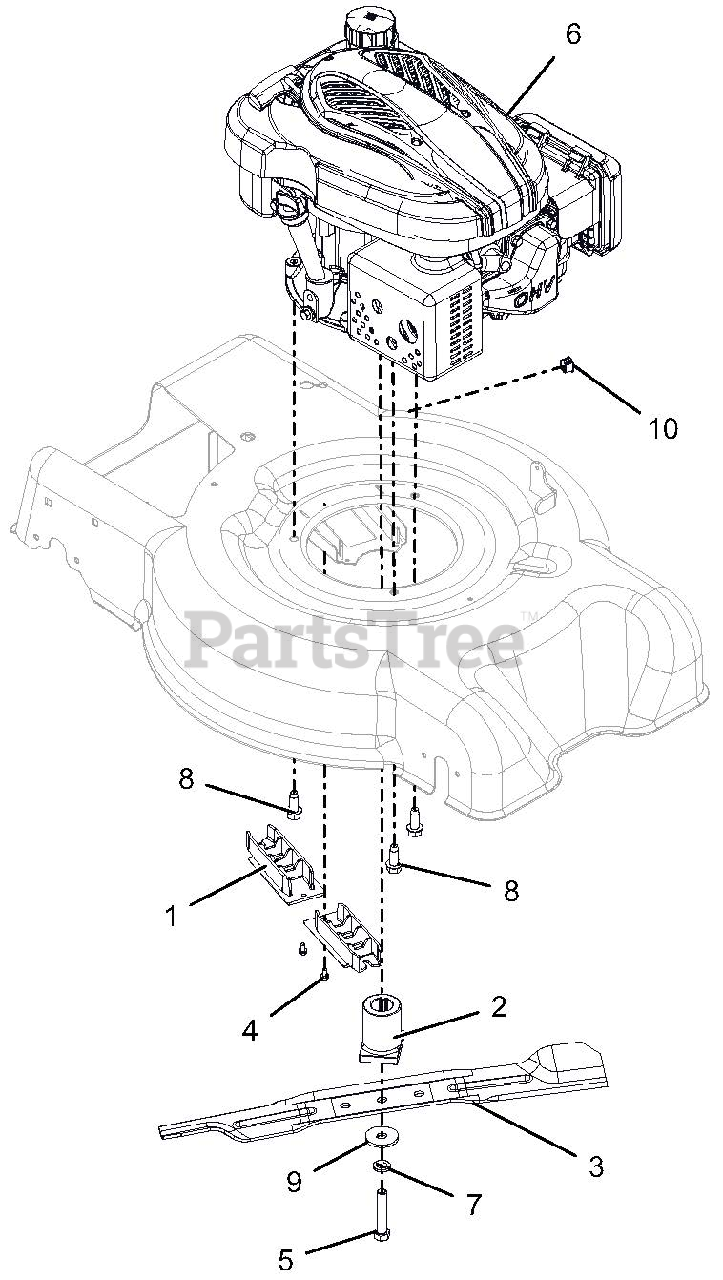

Engine And Blade Parts Diagram

  • Title
1

Ariens 04733800

GUIDE, BELT INNER

$9.49

$

In Stock, only 1 left!

0

2

Ariens 04539400

ADAPTER, BLADE

$16.99

$

Usually ships in 4-12 days

0

3

Ariens 04544400

BLADE, MOWER 21" HIGH LIFT

$25.99

$

In Stock, Qty 20+

0

4

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 05901515

@BLT-HEX .4375-20X2.25 GR8 YWZ

$4.49

$

In Stock, only 4 left!

0

6

Ariens 08200829

ENGINE, LONCIN 159CC VERT.

$

$

Not available

7

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

8

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

9

Ariens 06400925

WSHR-FL-STL .4375X1.50X.125 YZ

$

$

Not available

10

Ariens 07500339

PLUG, DOME-BLACK, .625 DIA

$

$

Not available
