911372 (WAW 34) - Gravely 34" Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999) Transmission Parts Diagram

34" Walk-Behind Mower, 14.5hp Briggs & Stratton

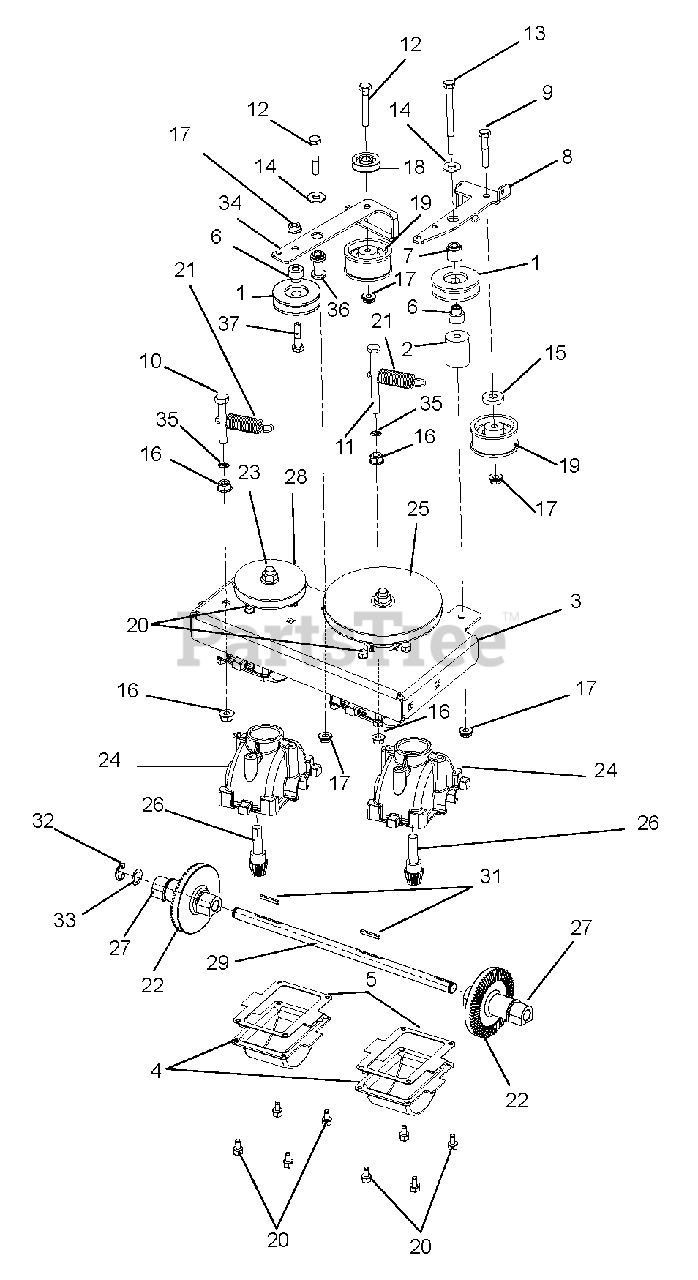

Transmission Parts Diagram

  • Title

1

Gravely 00444400

Idler, 3L Front Side .38 x 1.875

$22.99

$

In Stock, Qty 6

0

2

Gravely 01247300

Spacer, Reverse Idler

$

$

Not available

3

Gravely 04288700

Plate, Transmission Mount

$

$

Not available

4

Gravely 01255251

Sump, Gearbox

$38.99

$

Usually ships in 4-12 days

0

5

Gravely 01256400

Gasket, Transmission

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 01258900

Spacer, Idler Pulley

$3.99

$

In Stock, only 2 left!

0

7

Gravely 01259000

Spacer .390 x .75 x .189

$3.99

$

In Stock, only 1 left!

0

8

Gravely 03279300

Bracket, Transmission Idler Arm

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 05952500

Bolt, Hex .25-20 x 1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05948000

Bolt, Hex .31-18 x 3.50 Grade 5

$

$

Not available

12

Gravely 05964700

Bolt, Hex .25-20 x 1.75
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

13

Gravely 05965300

Bolt, Hex .25-20 x 3.25

$

$

Not available

14

Gravely 06435800

Washer, Flat Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

16

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07300012

Pulley, Cable

$4.99

$

In Stock, Qty 12

0

19

Gravely 07300435

Pulley, Idler .25 x 1.87 x .97

$20.99

$

In Stock, Qty 6

0

20

Gravely 07400033

Screw, Tapping 10-24 x .375 Pre-Coat
(Superseded to 07400137)

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 08300435

Spring, Tension .063 x .625 x 2.50

$

$

Not available

22

Gravely 01290400

Gear, Bevel

$55.99

$

In Stock, only 1 left!

0

23

Gravely 06542000

Nut, Top-Locking Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 01255000

Housing, WAW Gearbox

$67.99

$

Usually ships in 4-12 days

0

25

Gravely 01247500

Pulley, Reverse Input

$68.99

$

Usually ships in 4-12 days

0

26

Gravely 01255500

Pinion, Gearbox Input

$64.99

$

In Stock, only 1 left!

0

27

Gravely 01255300

Bushing, Transmission Output Shaft

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 01326500

Pulley, Transmission Input

$234.99

$

Usually ships in 4-12 days

0

29

Gravely 03294200

Shaft, Transmission Output

$

$

Not available

30

Gravely 51113600

Kit, WAW Transmission Shaft (includes 30, 32, 33 and 34)

Note: (includes 30, 32, 33 and 34)

$176.99

$

Usually ships in 4-12 days

0

31

Gravely 06600211

Key, 1/8 x 1/8 x 1.0

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 05710200

Ring, Retaining – External .500 x .042

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06400015

Washer, .500 x .750 x .020 Thrust

$1.49

$

In Stock, Qty 20+

0

34

Gravely 04273600

Arm, Double Acting Idler

$38.99

$

Usually ships in 4-12 days

0

35

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

36

Gravely 04288800

Pivot, Idler

$14.99

$

Usually ships in 4-12 days

0

37

Gravely 05947400

Bolt, Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0
