911371 - Ariens 34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear (SN: 013000 & Above) Transmission And Drive Parts Diagram

34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear

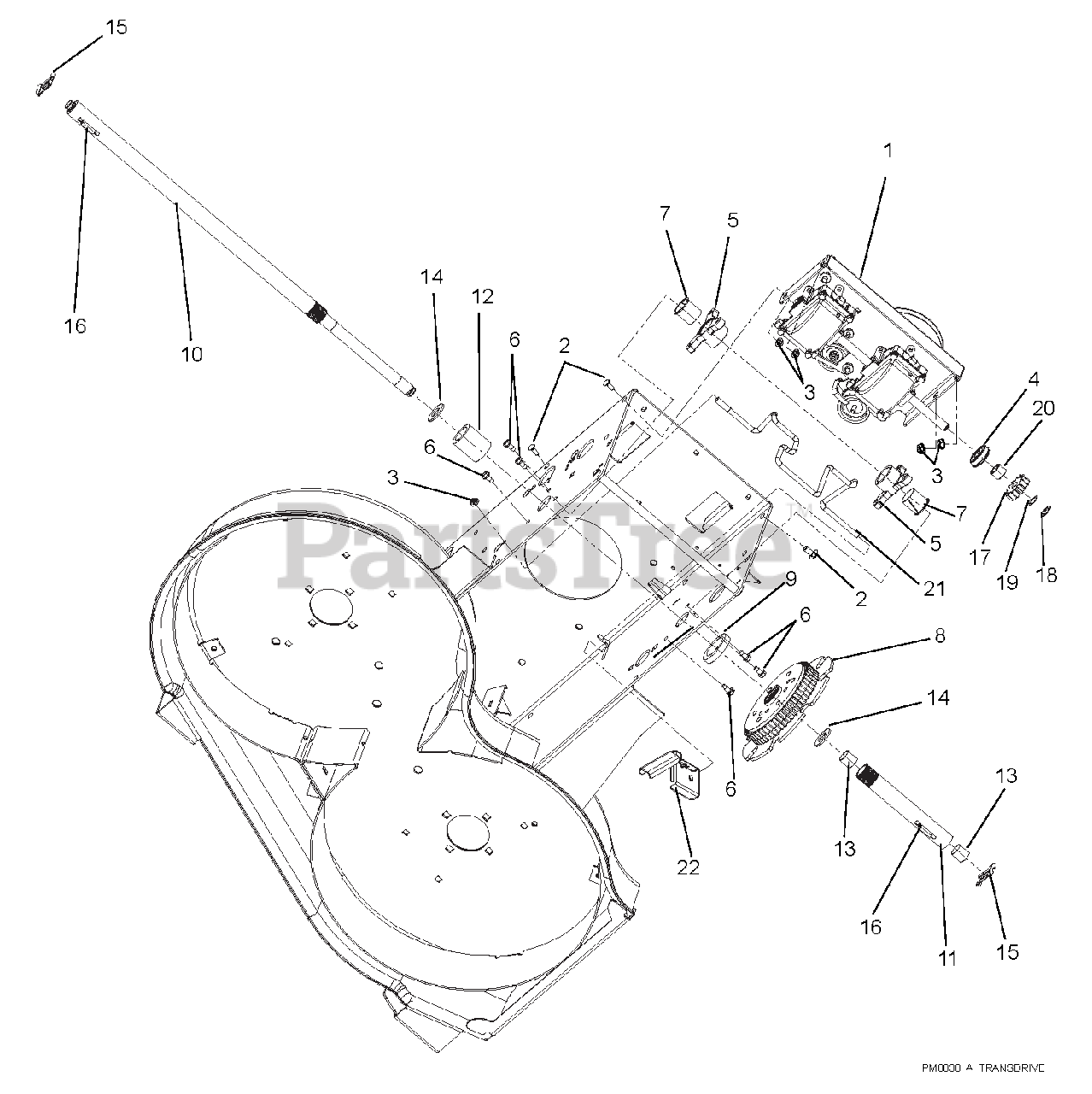

Transmission And Drive Parts Diagram

  • Title
1

Ariens 51115300

KIT, WAW TRANSMISSION

$597.99

$

Usually ships in 4-12 days

0

2

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

3

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05480000

BRG-BALL .50X1.38X.438 SEALED

$13.99

$

In Stock, Qty 20+

0

5

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 20+

0

6

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$6.99

$

In Stock, Qty 20+

0

8

Ariens 51113100

KIT, WAW DIFFERENTIAL

$271.99

$

Usually ships in 4-12 days

0

9

Ariens 06400827

WSHR-FL-NY 1.42X2.03X.35

$5.99

$

In Stock, only 4 left!

0

10

Ariens 03264700

SHAFT-AXLE LONG

$168.99

$

In Stock, only 1 left!

0

11

Ariens 03264800

SHAFT-AXLE, SHORT

$50.99

$

Usually ships in 4-12 days

0

12

Ariens 05500827

SPACER, 1.0X1.5X1.57

$15.99

$

In Stock, only 2 left!

0

13

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

14

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

16

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

17

Ariens 01247400

PINION, TRANSMISSION DRIVE

$38.99

$

In Stock, only 1 left!

0

18

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

20

Ariens 01254800

RETAINER, BEARING

$10.99

$

In Stock, only 2 left!

0

21

Ariens 01288000

BELT FINGER, WIREFORM

$36.99

$

In Stock, only 1 left!

0

22

Ariens 04273551

GUIDE, VERTICAL BELT

$42.99

$

Usually ships in 4-12 days

0
