911371 - Ariens 34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear (SN: 013000 & Above) Handlebars Parts Diagram

34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear

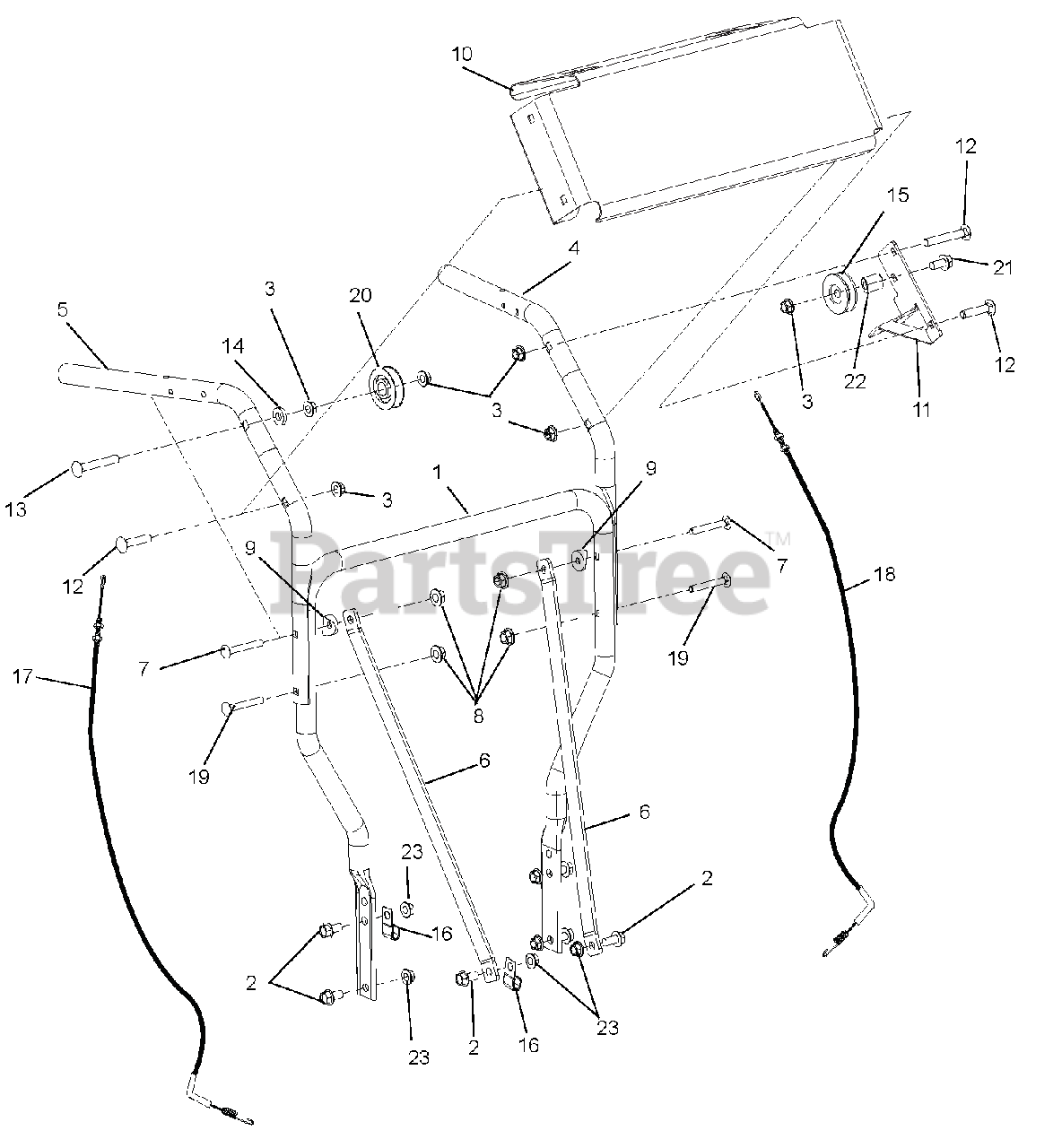

Handlebars Parts Diagram

  • Title

1

Ariens 00373251

HANDLEBAR, LOWER

$100.99

$

Usually ships in 4-12 days

0

2

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 01327251

HANDLEBAR, CE LH (WELDMENT)

$

$

Not available

5

Ariens 01246451

HANDLEBAR, UPPER RH

$142.99

$

Usually ships in 4-12 days

0

6

Ariens 03264351

BRKT-BRACE, HANDLEBARS

$64.99

$

Usually ships in 4-12 days

0

7

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

10

Ariens 03986151

DASH, WAW

$60.99

$

Usually ships in 4-12 days

0

11

Ariens 01288951

MOUNT, WAW PTO CABLE (WLDMNT)

$

$

Not available

12

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

13

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

14

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

15

Ariens 00444400

IDLER, 3L FRONT SIDE .38X1.875

$22.99

$

In Stock, Qty 6

0

16

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

17

Ariens 06900414

CABLE, WAW P-BRAKE

$68.99

$

Usually ships in 4-12 days

0

18

Ariens 06900413

CABLE, WAW PTO

$60.99

$

In Stock, only 2 left!

0

19

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, Qty 6

0

20

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

21

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 05501003

SPACER, .437X1.0X1.23

$31.99

$

Usually ships in 4-12 days

0

23

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0
