911371 - Ariens 34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear (SN: 000101 - 012999) Frame and Front Caster Parts Diagram

34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear

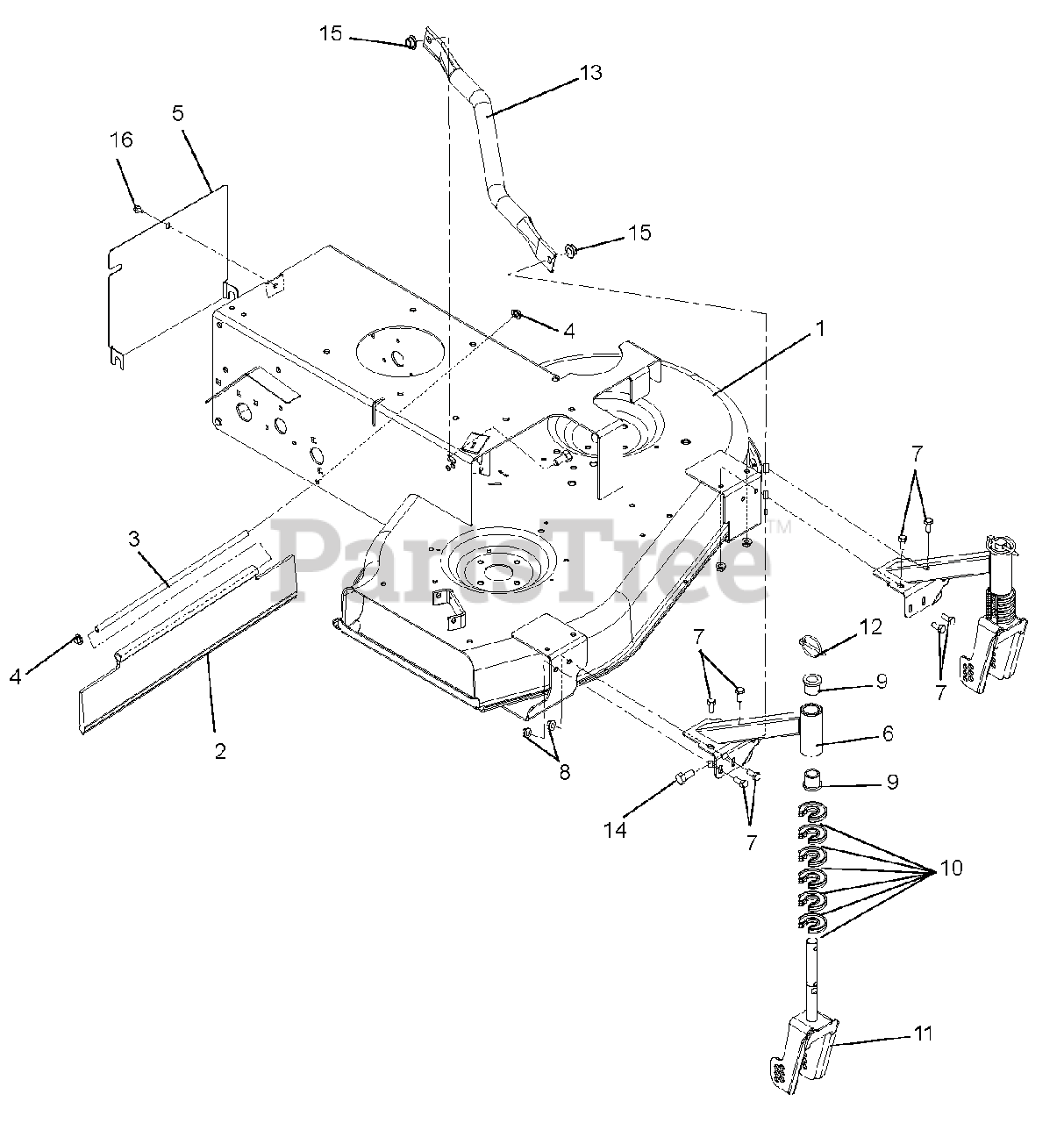

Frame and Front Caster Parts Diagram

  • Title

1

Ariens 01607459

CHASSIS, WAW CE

$

$

Not available

2

Ariens 07531500

GUARD - REAR - SWIVEL

$15.99

$

In Stock, only 1 left!

0

3

Ariens 03263700

ROD, TRAILING SHIELD

$24.99

$

Usually ships in 4-12 days

0

4

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

5

Ariens 03985959

COVER, REAR CHASSIS

$25.99

$

Usually ships in 4-12 days

0

6

Ariens 03985459

ARM, CASTER (WLDMNT)

$219.99

$

Usually ships in 4-12 days

0

7

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03985500

BUSHING, FLANGE .75X.75X1.0

$5.99

$

In Stock, only 1 left!

0

10

Ariens 03265100

CLIP-HOC FIXED

$3.49

$

In Stock, Qty 7

0

11

Ariens 03968059

FORK, WAW CASTER (WLDMNT)
(Superseded to 04059659)

$68.99

$

In Stock, only 3 left!

0

12

Ariens 06700204

PIN, LYNCH - .25 X 1.25
(Superseded to 06700226)

$3.99

$

In Stock, Qty 8

0

13

Ariens 01248551

TUBE-BRACE, DECK

$64.99

$

Usually ships in 4-12 days

0

14

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
