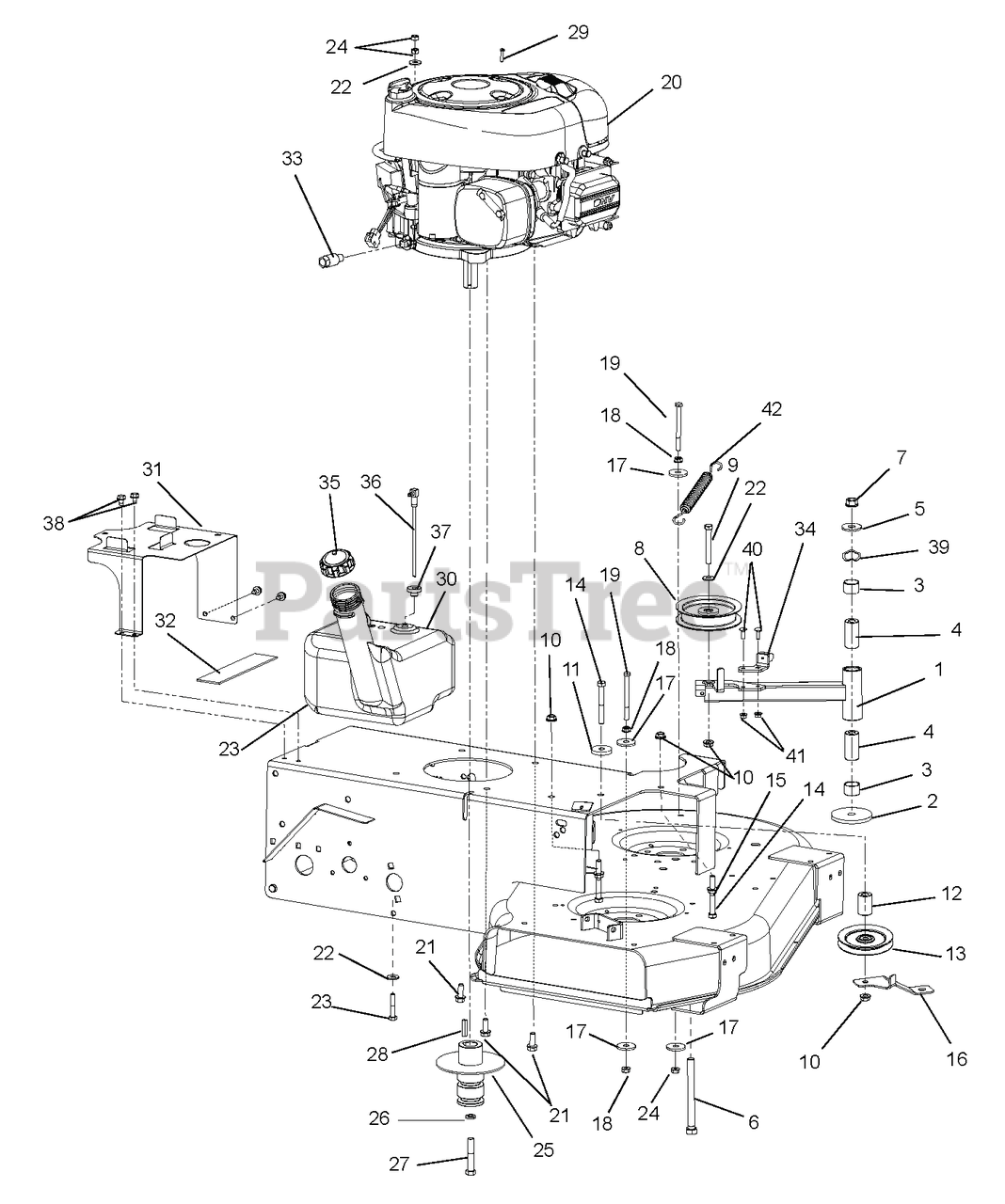

911371 - Ariens 34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear (SN: 000101 - 012999) Engine, Clutch, and Idler Parts Diagram

34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear

Engine, Clutch, and Idler Parts Diagram

  • Title

1

Ariens 03938951

WLDMT, PTO IDLER ARM

$

$

Not available

2

Ariens 06400011

WASHER, FLAT .531X3.000X.25

$17.99

$

Usually ships in 4-12 days

0

3

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 10

0

4

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

5

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

6

Ariens 05964100

@BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

9

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

10

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

12

Ariens 05501003

SPACER, .437X1.0X1.23

$31.99

$

Usually ships in 4-12 days

0

13

Ariens 07300528

SHV, .38"ID X 4.00"OD V-IDLER

$39.99

$

In Stock, only 2 left!

0

14

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

15

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 01286751

BRKT-IDLER BRACE

$64.99

$

Usually ships in 4-12 days

0

17

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

18

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

20

Ariens 08200620

ENGINE, B&S 14.5 POWERBUILT

$

$

Not available

21

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (Torque = 374 - 562 lbf-in (42.26 - 63.5 Nm))

$3.99

$

In Stock, only 2 left!

0

22

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

24

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07332500

PULLEY, PRO-GROUND DRIVE

$193.99

$

Usually ships in 4-12 days

0

26

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

27

Ariens 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

Note: (Torque = 394 - 590 lbf-in (44.52 - 66.66 Nm))

$13.99

$

In Stock, only 1 left!

0

28

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

29

Ariens 06100206

SCREW, 8-16X.87 PHPAN 3 LOBE

Note: (Use to attach 03276500 Engine Guard - Not Shown)

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 03965100

TANK, FUEL (BLACK)

$

$

Not available

31

Ariens 03985851

BRKT, GAS TANK MOUNT

$90.99

$

Usually ships in 4-12 days

0

32

Ariens 03988500

PAD, GAS TANK

$

$

Not available

33

Ariens 03943600

DRAIN, OIL

$11.99

$

In Stock, only 3 left!

0

34

Ariens 03943700

ASSY, WAW WEDGE BRAKE

Note: (Serial 000101 - 011004)

$

$

Not available

34

Ariens 04457700

BRAKE PAD ASSY WAW
(Superseded to 51115700)

Note: (Serial 011005 and up)

$56.99

$

In Stock, only 1 left!

0

35

Ariens 01538400

FUEL CAP

$15.99

$

Usually ships in 4-12 days

0

36

Ariens 03798300

ASSY-PICKUP, FUEL 6.5L
(Superseded to 04333600)

$15.99

$

In Stock, Qty 13

0

37

Ariens 07511500

GRIP

$

$

Not available

38

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 09250700

WASHER - WAVE 1.09X1.37X.016

$3.49

$

In Stock, only 1 left!

0

40

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 08000513

DECAL, ARIENS HERITAGE-LARGE

$

$

Not available

43

Ariens 21602900

SPARK PLUG, B&S MODEL 31 CE

Note: (not shown)

$

$

Not available

44

Ariens 21603000

SPRING,GOVERNOR-B&S MODEL31 CE

Note: (not shown)

$

$

Not available

45

Ariens 21603100

CAGE,MUFFLER - B&S MODEL 31

Note: (not shown)

$

$

Not available
