911371 - Ariens 34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear (SN: 000101 - 012999) Deck Parts Diagram

34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear

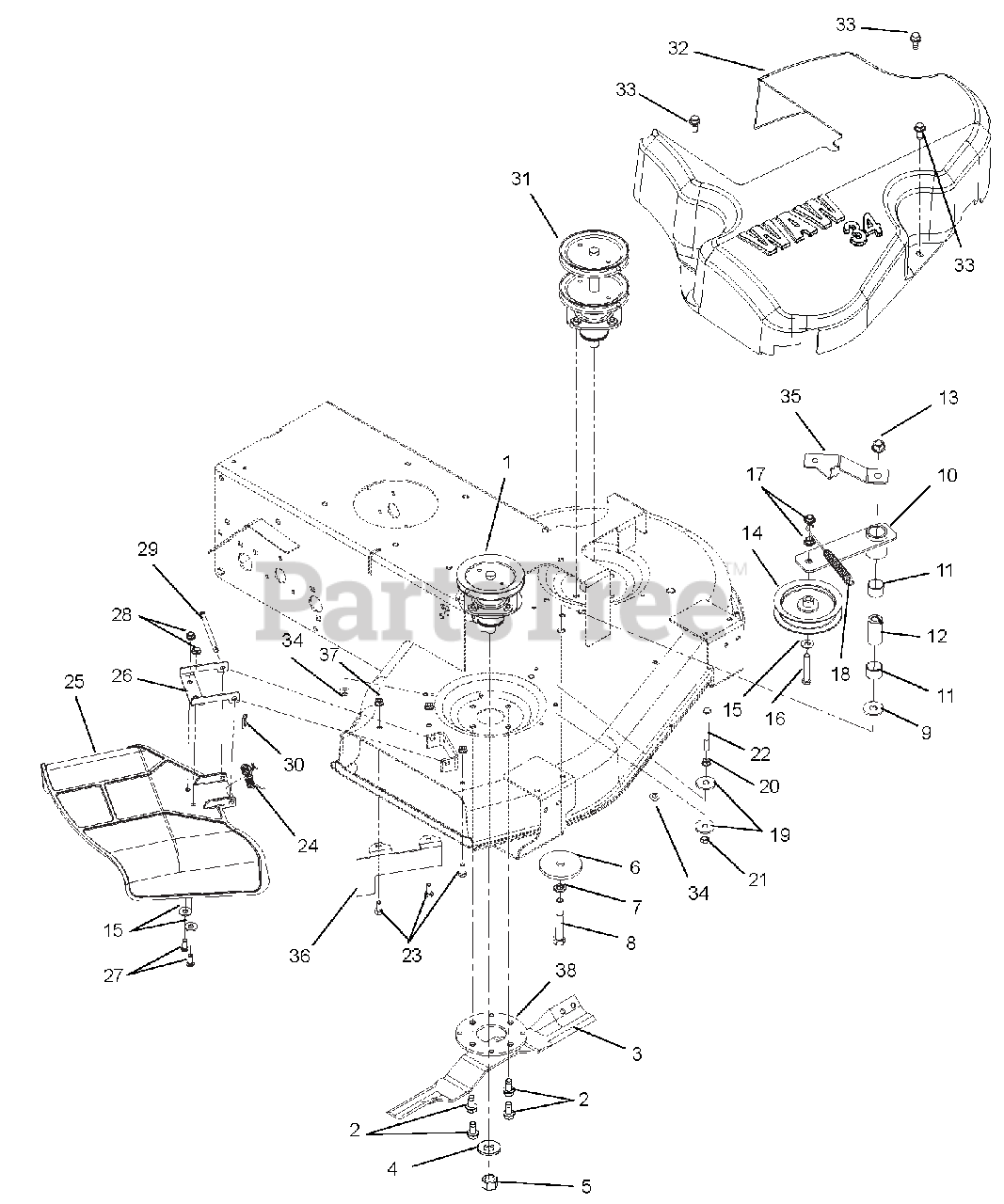

Deck Parts Diagram

  • Title

1

Ariens 51519500

KIT, DECK SPINDLE ASM (34/50)

Note: (34/50)

$156.99

$

In Stock, Qty 7

0

2

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

Note: (Torque = 324 - 420 lbf-in (36.61 - 47.45 Nm))

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03797300

BLADE-17.34 OS MULCH

$26.99

$

In Stock, only 2 left!

0

4

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

5

Ariens 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

Note: (Torque = 100-120 lbf-ft (135.6-162.7 Nm))

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06400011

WASHER, FLAT .531X3.000X.25

$17.99

$

Usually ships in 4-12 days

0

7

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

8

Ariens 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

9

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

10

Ariens 01248251

ARM, WAW DECK IDLER (WLDMNT)

$

$

Not available

11

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 6

0

12

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

13

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

15

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

17

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 08334900

SPRING - ENGINE - TRANS.

$28.99

$

In Stock, Qty 8

0

19

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

20

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

23

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 01258100

SPRING, TORSION

$9.49

$

In Stock, Qty 8

0

25

Ariens 03994300

CHUTE, SIDE DISCHARGE

$54.99

$

In Stock, only 1 left!

0

26

Ariens 00662651

CHUTE REINFORCEMENT

$22.99

$

Usually ships in 4-12 days

0

27

Ariens 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$3.99

$

In Stock, only 2 left!

0

28

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06800002

PIN, 5/16 X 3.88"

$9.49

$

Usually ships in 4-12 days

0

30

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 51112300

KIT, WAW DECK INPUT PULLEY

$105.99

$

Usually ships in 4-12 days

0

32

Ariens 01246900

COVER, WAW BELT

$203.99

$

Usually ships in 4-12 days

0

33

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 00548400

RETAINER, .38 PUSH-ON

$1.49

$

In Stock, only 2 left!

0

35

Ariens 01286751

BRKT-IDLER BRACE

$64.99

$

Usually ships in 4-12 days

0

36

Ariens 03779200

BRKT-BAFFLE, DISCHARGE 34"

$

$

Not available

37

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 03839051

PLATE-REINF, SPINDLE

$27.99

$

Usually ships in 4-12 days

0
