911345 (XD 21 CE) - Gravely 21" Walk-Behind Mower (SN: 000101 & Above) Mower Deck and Bagger Parts Diagram

21" Walk-Behind Mower

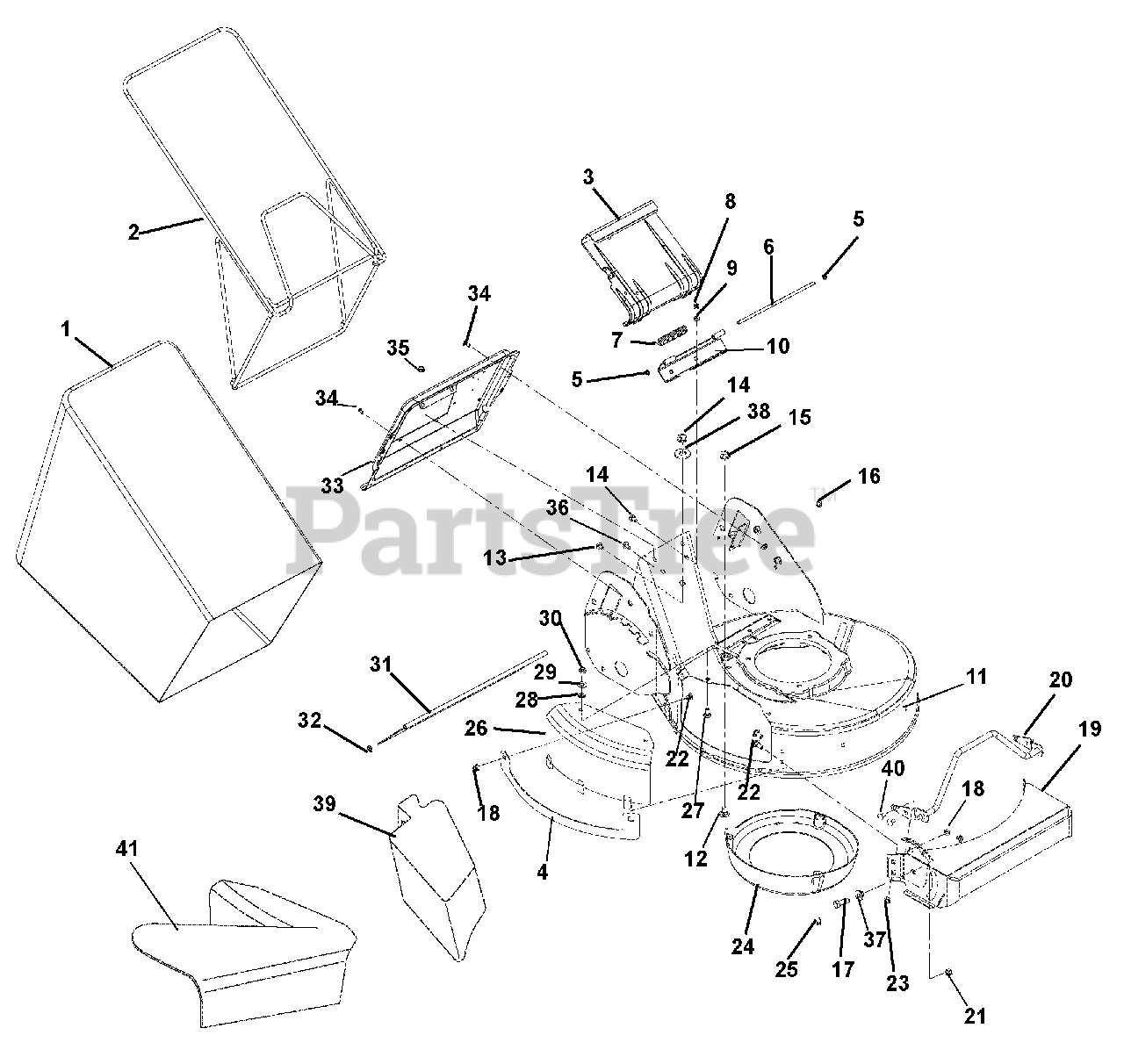

Mower Deck and Bagger Parts Diagram

  • Title

1

Gravely 01180500

Bag, Consumer Black 15 OZ/YD2

$116.99

$

In Stock, only 1 left!

0

2

Gravely 01241851

Frame, WBLM Bagger

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 01136553

Catcher Plate Door

$

$

Not available

4

Gravely 04142753

Bracket, Discharge Guard

$39.99

$

Usually ships in 4-12 days

0

5

Gravely 02215300

Push Nut, .25

$1.99

$

In Stock, Qty 16

0

6

Gravely 01141000

Door Pin

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 08322400

Spring, Torsion .120 x .68 x 3.09

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

9

Gravely 06308000

Washer, Locking .250 x .077 Heavy

$

$

Not available

10

Gravely 01138253

Hinge

$8.99

$

Usually ships in 4-12 days

0

11

51114953

Kit, XD21 Deck with Decals

$

$

Not available

12

Gravely 05947900

Bolt-Hex .25-20X.50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05967000

Bolt-Hex .38-16X.50 Grade 5

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

15

Gravely 06530100

Nut-Locking-Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 07507600

Plastic Grommet

$0.99

$

In Stock, Qty 10

0

17

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03983453

Weldment, Commercial 21 Bumper

$

$

Not available

20

Gravely 01325351

Angle, Support

$

$

Not available

21

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06530400

Nut, Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 01173700

Center Baffle

$45.99

$

Usually ships in 4-12 days

0

25

Gravely 07415000

Screw, Tapping 10-16 x .62 SLPH AB

$

$

Not available

26

Gravely 01180351

Cover, Side Discharge

$38.99

$

In Stock, only 4 left!

0

27

Gravely 06214100

Bolt, Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 06514900

Nut-Push .312

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06530200

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 00677800

Trailing Shield

$35.99

$

Usually ships in 4-12 days

0

32

Gravely 00548400

Retainer, .38 Push-On

$1.49

$

In Stock, only 2 left!

0

33

Gravely 01159753

Catcher Plate

$93.99

$

Usually ships in 4-12 days

0

34

Gravely 07430000

Screw, Tapping 1/4-20 x 3/4 LPAN

$0.99

$

Usually ships in 4-12 days

0

35

Gravely 06530100

Nut, Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 05514800

Bushing, Flange .32 x .500 x .344 x .880

$2.49

$

In Stock, only 3 left!

0

38

Gravely 06436400

Washer, Flat-Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

39

Gravely 71102700

Plug, Mulchmaster Mulcher

$51.99

$

In Stock, only 1 left!

0

40

Gravely 06212200

Bolt, Round Head Square Neck .31-18 x .62 Grade 5
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 01180200

Side Discharge Assembly

$35.99

$

In Stock, only 1 left!

0
