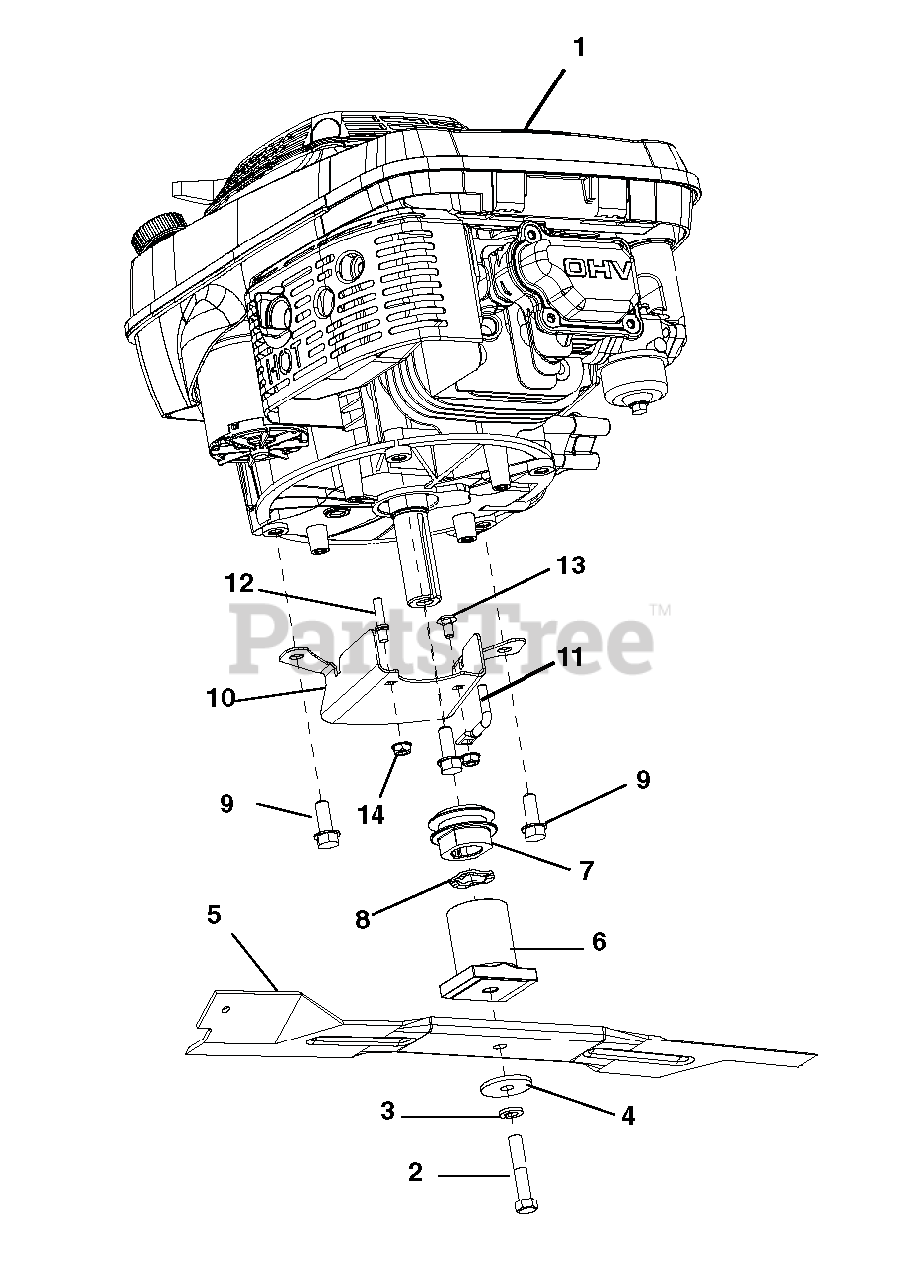

911345 (PRO 21 XD) - Ariens 21" Self-Propelled Walk-Behind Mower, Kawasaki (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Self-Propelled Walk-Behind Mower, Kawasaki

Engine, Blade And Belt Parts Diagram

  • Title

1

Ariens 08200532

ENGINE, KAWI FJ180V COMMERCIAL

$

$

Not available

2

Ariens 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, only 4 left!

0

3

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 1 left!

0

5

Ariens 01176700

BLADE, 21" LM MULCHING

$28.99

$

In Stock, only 1 left!

0

6

Ariens 09735100

ADAPTER, CE BLADE

$45.99

$

Usually ships in 4-12 days

0

7

Ariens 09733100

PULLEY-SINTERED IRON LM
(Superseded to 04851300)

$16.99

$

Usually ships in 4-12 days

0

8

Ariens 01192900

WASHER-WAVE .885X1.311X.125

$4.99

$

In Stock, Qty 6

0

9

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

10

Ariens 01279751

CHANNEL, XD21 FRONT BELT

$

$

Not available

11

Ariens 01265700

FINGER, BELT

$19.99

$

Usually ships in 4-12 days

0

12

Ariens 01265600

FINGER, BELT

$

$

Not available

13

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0
