911342 (BRSP 21) - Ariens 21" Self-Propelled Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 & Above) Mower Deck Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6.5hp Briggs & Stratton

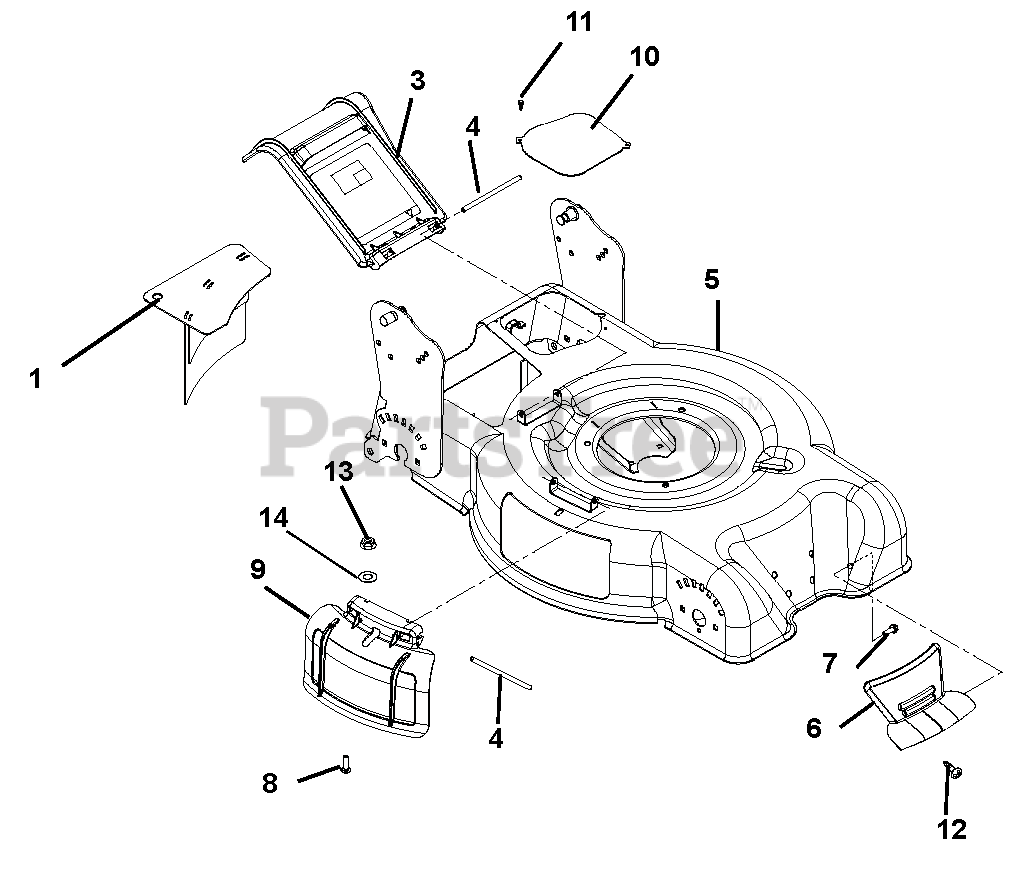

Mower Deck Parts Diagram

  • Title
1

Ariens 01268051

PLUG, MULCH (STEEL)

$83.99

$

Usually ships in 4-12 days

0

2

Ariens 01253400

BAGGER DOOR

$23.99

$

Usually ships in 4-12 days

0

3

Ariens 01251400

REAR DISCHARGE COVER

$

$

Not available

4

Ariens 01260900

PIN, HINGE

$19.99

$

Usually ships in 4-12 days

0

5

Ariens 01253059

21" DECK WELDMENT

$

$

Not available

6

Ariens 01264100

GRILL INSERT

$

$

Not available

7

Ariens 07400011

SCR-TAP 12-12X.75 HI-LOW YZ

$

$

Not available

8

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 01260500

MULCH COVER

$35.99

$

Usually ships in 4-12 days

0

10

Ariens 01262351

COVER, TRANSMISSION ACCESS

$19.99

$

Usually ships in 4-12 days

0

11

Ariens 07412100

@SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 07400012

SCREW, SELF DRILL/TAP

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
