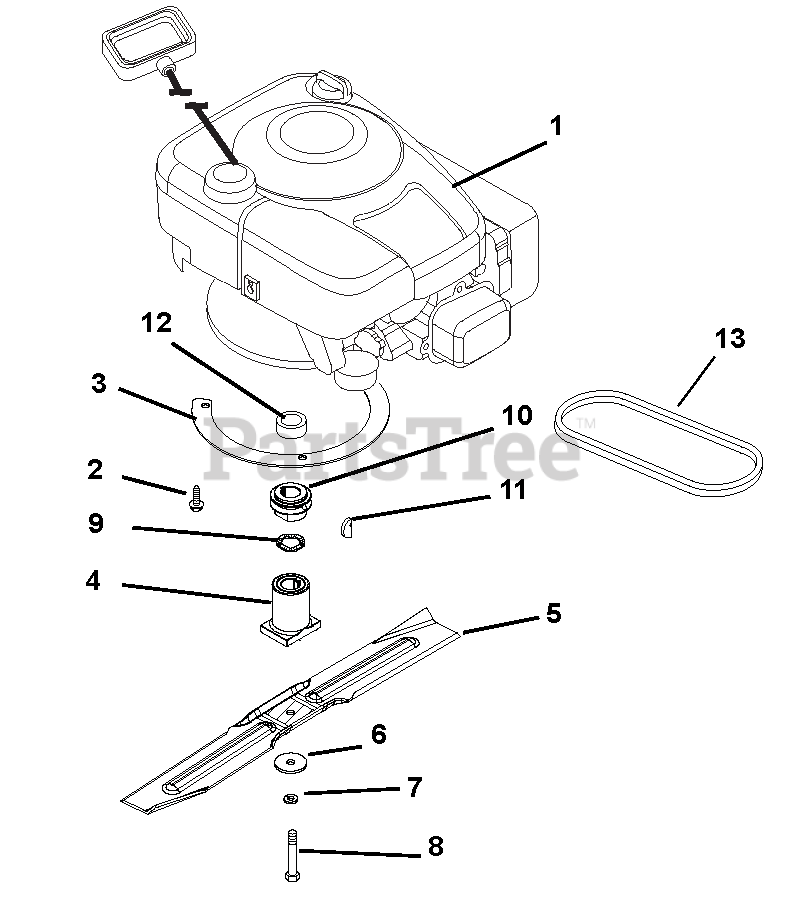

911342 (BRSP 21) - Ariens 21" Self-Propelled Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6.5hp Briggs & Stratton

Engine, Blade And Belt Parts Diagram

  • Title

1

Ariens 08200205

B&S - 6.5 HP DOV

$

$

Not available

2

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

3

Ariens 01268100

RING, ENGINE BOLT

$

$

Not available

4

Ariens 09734700

ADAPTER, BLADE HUB

$

$

Not available

5

Ariens 01252100

21" MOWER BLADE

$

$

Not available

6

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 1 left!

0

7

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05900029

BOLT, 3/8-24X2.5 G8

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 01192900

WASHER-WAVE .885X1.311X.125

$4.99

$

In Stock, Qty 6

0

10

Ariens 09733100

PULLEY-SINTERED IRON LM
(Superseded to 04851300)

$16.99

$

Usually ships in 4-12 days

0

11

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, Qty 12

0

12

Ariens 05500002

SPACER, .875X1.125X.551

$9.99

$

Usually ships in 4-12 days

0

13

Ariens 07200505

V-BELT, 3L-WRAPPED

$34.99

$

In Stock, only 1 left!

0
