911341 (PRO 21 XD) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 001000 & Above) Handlebar And Controls Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki

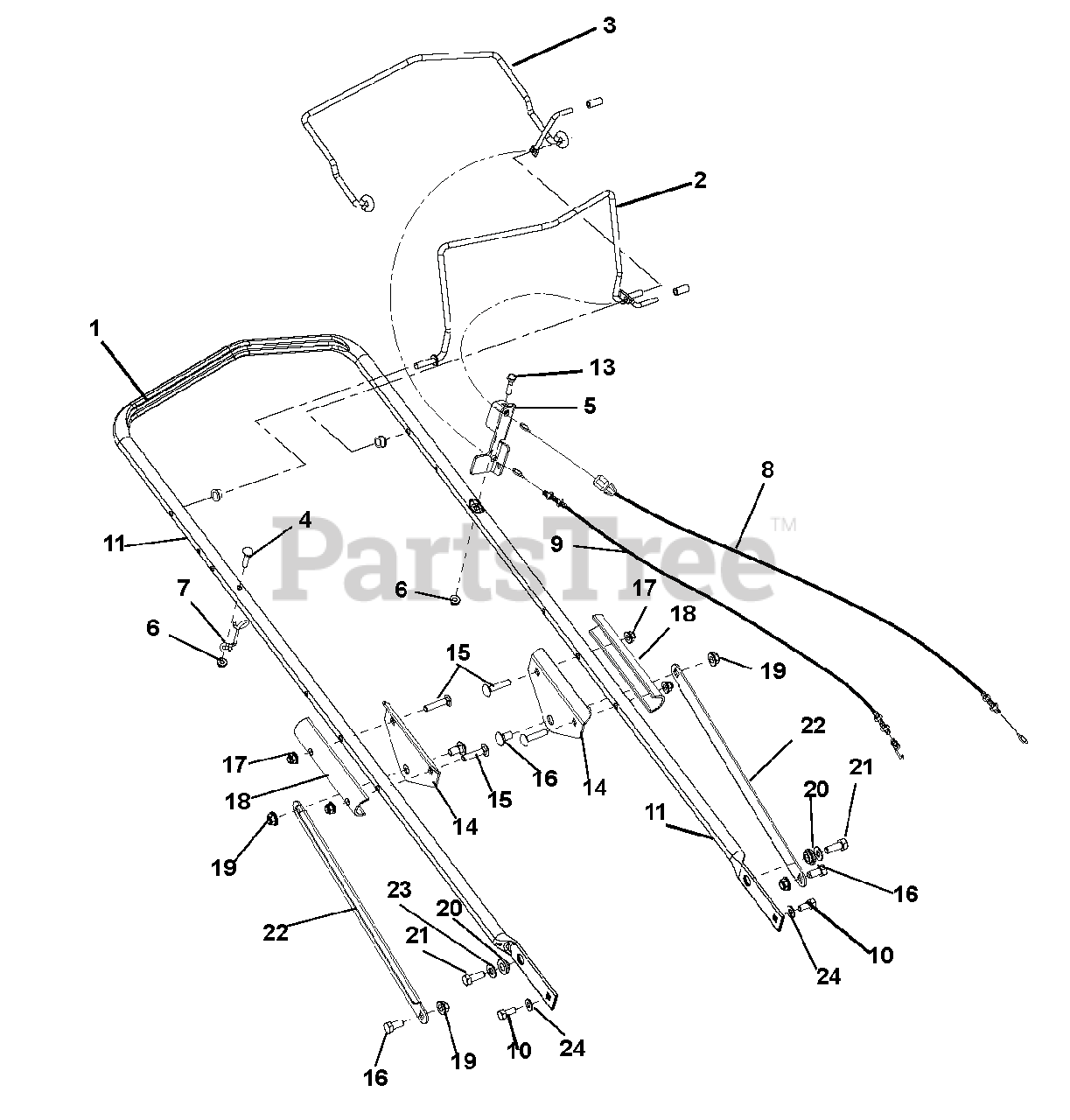

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 00612551

HANDLEBAR,PRO 21

$

$

Not available

2

Ariens 01263751

BAIL, OPERATOR PRESENCE

$60.99

$

Usually ships in 4-12 days

0

3

Ariens 01263851

BAIL, CLUTCH

$

$

Not available

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 1 left!

0

5

Ariens 01250651

ANCHOR, CABLE - THUMB ADJUST

$13.99

$

Usually ships in 4-12 days

0

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 04642100

GUIDE - PULLCORD

$51.99

$

Usually ships in 4-12 days

0

8

Ariens 01283500

CABLE, TO BE REPLACED 12925
(Superseded to 51113800)

$65.99

$

In Stock, only 1 left!

0

9

Ariens 01246500

CABLE, XD DOUBLE BAIL DRIVE

$64.99

$

Usually ships in 4-12 days

0

10

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07539300

CONDUIT CLIP

$3.49

$

Usually ships in 4-12 days

0

Ariens 07539300

CONDUIT CLIP

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 00581051

PLATE,HINGE

$

$

Not available

13

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

14

Ariens 00612651

PLATE,HANDLEBAR

$

$

Not available

15

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

16

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 02722751

SERVICE BAR BRACE

$14.99

$

Usually ships in 4-12 days

0

19

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05515800

BSHG-FLG .406X.88X.270X.140

$9.49

$

In Stock, only 4 left!

0

21

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 00612751

STRAP,HANDLEBAR

$19.99

$

Usually ships in 4-12 days

0

23

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
