911341 (PRO 21 XD) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 000101 - 000999) Transmission And Height Of Cut Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki

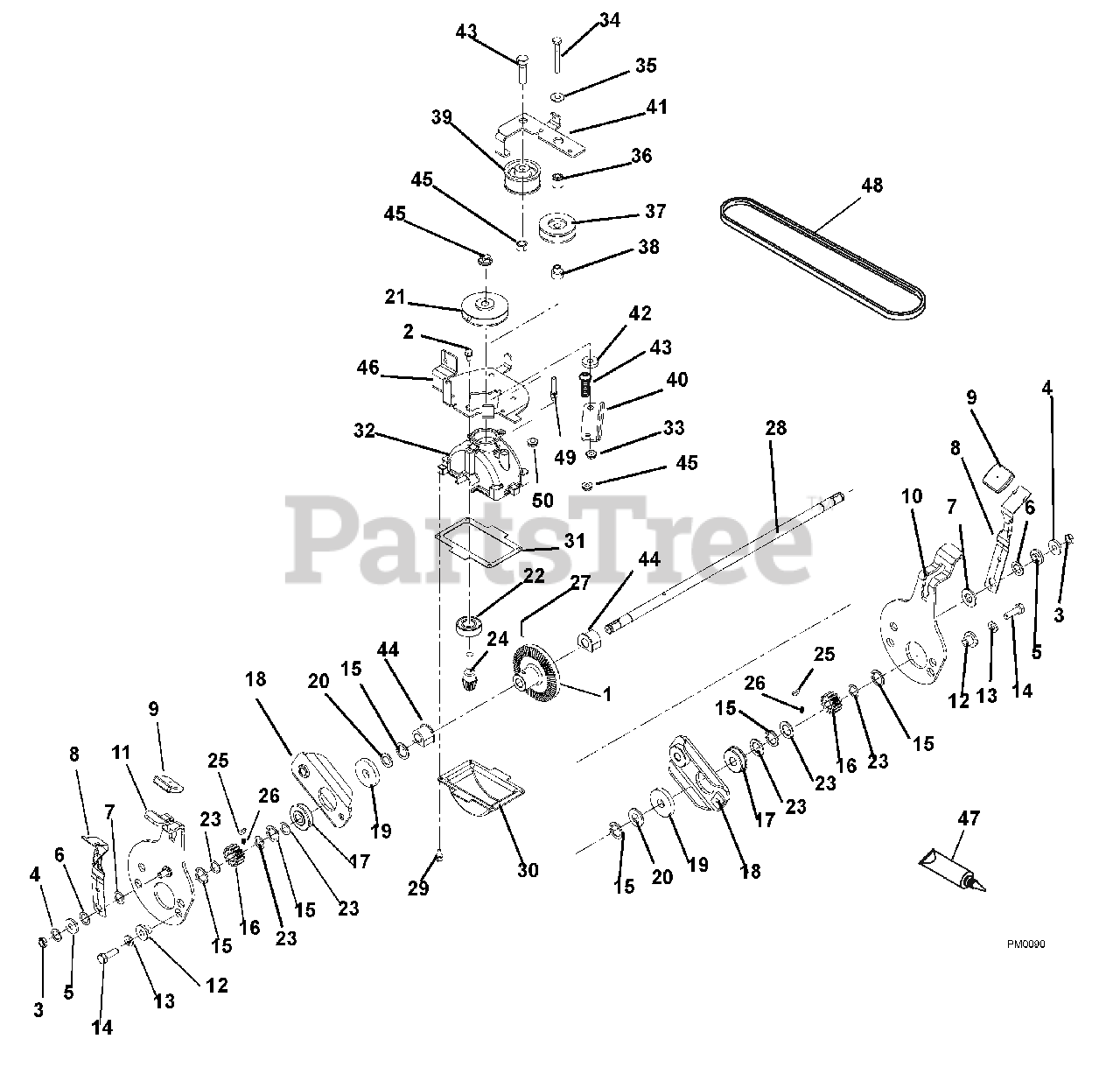

Transmission And Height Of Cut Parts Diagram

  • Title

1

Ariens 01255400

GEAR, REDUCTION

$

$

Not available

2

Ariens 07412100

@SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

3

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 3 left!

0

6

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 01242000

LEVER, HEIGHT ADJUSTMENT

$25.99

$

In Stock, only 1 left!

0

9

Ariens 07513600

KNOB

$7.99

$

In Stock, only 2 left!

0

10

Ariens 00675400

WELDMT-DETENT SUPPORT RIGHT

$

$

Not available

11

Ariens 00675500

WELDMT-DETENT SUPPORT LEFT

$

$

Not available

12

Ariens 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, Qty 12

0

13

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05715600

RG-RTNG-EXT.50 X .034

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 00670700

PINION-WBLM DRIVE

$9.49

$

In Stock, only 2 left!

0

17

Ariens 05480000

BRG-BALL .50X1.38X.438 SEALED

$13.99

$

In Stock, Qty 20+

0

18

Ariens 00661600

ARM,WHEEL MOUNT

$

$

Not available

19

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

20

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 01255100

PULLEY, TRANS INPUT

$

$

Not available

22

Ariens 05435100

BRG-BALL .625X1.375X.43

$14.99

$

In Stock, Qty 20+

0

23

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

24

Ariens 01255500

PINION, GEARBOX INPUT

$64.99

$

In Stock, only 1 left!

0

25

Ariens 06600004

KEY-WDRF .125X.50X.20 (HRDEND)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 08300016

SPRING, .134X.180X.144 COMP.

$3.49

$

In Stock, Qty 14

0

27*

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 20+

0

28

Ariens 00619700

SHAFT - TRANSMISSION OUTPUT

$

$

Not available

29

Ariens 07412100

@SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

30

Ariens 01255251

SUMP, GEARBOX

$38.99

$

Usually ships in 4-12 days

0

31

Ariens 01256400

GASKET, TRANSMISSION

$15.99

$

Usually ships in 4-12 days

0

32

Ariens 01255000

HOUSING, WBLM GEAR BOX

$67.99

$

Usually ships in 4-12 days

0

33

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 01259000

SPACER, IDLER ARM

$3.99

$

In Stock, only 1 left!

0

37

Ariens 00444400

IDLER, 3L FRONT SIDE .38X1.875

$22.99

$

In Stock, Qty 6

0

38

Ariens 01258900

SPACER, V-IDLER PULLEY

$3.99

$

In Stock, only 2 left!

0

39

Ariens 07326500

IDLER - FLAT 1.875OD X .75WIDE

$25.99

$

In Stock, only 1 left!

0

40

Ariens 00613551

STRAP,TRANSMISSION

$

$

Not available

41

Ariens 01280500

ARM-TRANS IDLER

$103.99

$

Usually ships in 4-12 days

0

42

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 01255300

BUSHING, TRANS OUTPUT SHAFT

$5.99

$

Usually ships in 4-12 days

0

45

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 01257600

BRACKET, TRANSMISSION CONTROL

$

$

Not available

47

Ariens 00902700

LUBRICATE

$

$

Not available

48

Ariens 07200114

V-BELT, 3L-WRAPPED

$23.99

$

In Stock, Qty 6

0

49

Ariens 01265600

FINGER, BELT

$

$

Not available

50

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0
