911341 (PRO 21 XD) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 000101 - 000999) Handlebar And Controls Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki

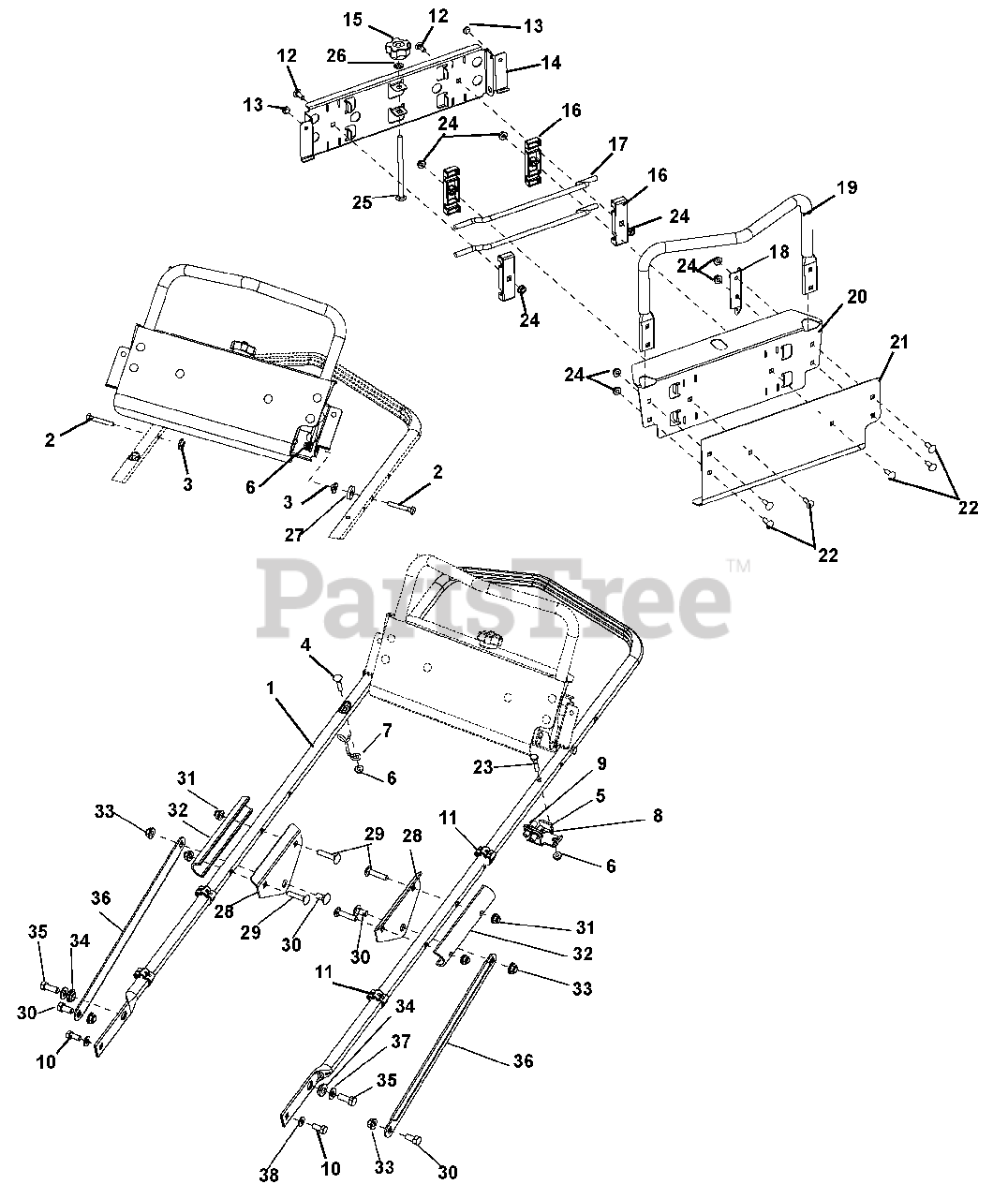

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 00612551

HANDLEBAR,PRO 21

$

$

Not available

2

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

3

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 3 left!

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 4 left!

0

5

Ariens 00589051

BKT,CABLE ANCHOR

$

$

Not available

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 04642100

GUIDE - PULLCORD

$51.99

$

Usually ships in 4-12 days

0

8

Ariens 00616200

CABLE,OPC (DLX) KAWASAKI

$45.99

$

Usually ships in 4-12 days

0

9

Ariens 00674600

CABLE-DRIVE

$68.99

$

Usually ships in 4-12 days

0

10

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07539300

CONDUIT CLIP

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

13

Ariens 07511800

BUMPER

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 00581051

PLATE,HINGE

$

$

Not available

15

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.49

$

In Stock, Qty 20+

0

16

Ariens 00587100

CLAMP,4-BAR

$

$

Not available

17

Ariens 00581200

ROD,4-BAR

$

$

Not available

18

Ariens 00582251

CABLE ANCHOR

$

$

Not available

19

Ariens 00584651

BAIL .750 TUBE

$

$

Not available

20

Ariens 00581351

COVER,OP CONTROL
(Superseded to 51112100)

$

$

Not available

21

Ariens 00598651

COVER,SHEETMETAL

$

$

Not available

22

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

23

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

24

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06226200

BLT-RDHDSQNKFTH.31-18X5 GR5YZC

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

28

Ariens 00612651

PLATE,HANDLEBAR

$

$

Not available

29

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

30

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 02722751

SERVICE BAR BRACE

$14.99

$

Usually ships in 4-12 days

0

33

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 05515800

BSHG-FLG .406X.88X.270X.140

$9.49

$

In Stock, only 4 left!

0

35

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 00612751

STRAP,HANDLEBAR

$19.99

$

Usually ships in 4-12 days

0

37

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
