911330 (LM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, Briggs & Stratton (SN: 001965 - 004999) Wheels And Adjusters Parts Diagram

21" Self-Propelled Walk-Behind Mower, Briggs & Stratton

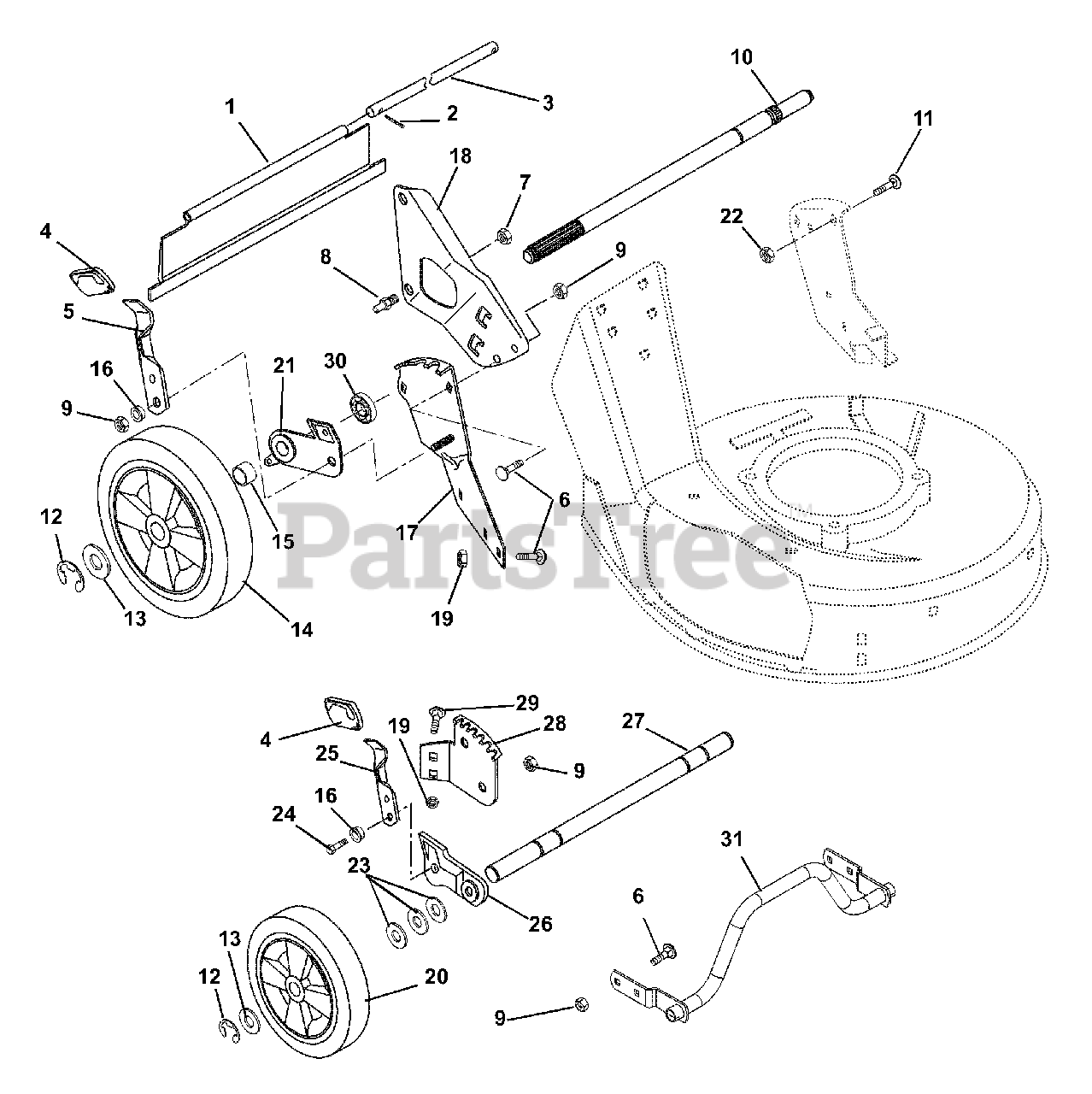

Wheels And Adjusters Parts Diagram

  • Title

1

Ariens 07522300

REAR PROTECTIVE GUARD, S.P.

$45.99

$

In Stock, only 1 left!

0

2

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 01140000

ROD
(Superseded to 01140067)

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 07513600

KNOB

$7.99

$

In Stock, only 2 left!

0

5

Ariens 01242000

LEVER, HEIGHT ADJUSTMENT

$25.99

$

In Stock, only 1 left!

0

6

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (911086, 330, 514, 525, 531, 532, 533, 534)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (911102, 396)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 01167100

HANDLEBAR STUD

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (911086, 330, 514, 525, 531, 532, 533, 534)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (911102, 396)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01149500

REAR AXLE,5/8 DIA

Note: (911330, 396, 514, 525, 531, 533, 534)

$140.99

$

Usually ships in 4-12 days

0

10

Ariens 01171900

REAR AXLE-PUSH MOWER MM

Note: (911086, 532)

$50.99

$

Usually ships in 4-12 days

0

11

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

12

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (911330, 396, 525, 534)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (911086, 102, 514, 525, 531, 532, 533)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

Note: (911086, 102, 514, 525, 531, 532, 533)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

Note: (911330, 396, 525, 534)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07151200

WHL, LH 10.50"
(Superseded to 51115900)

Note: (911330, 396, 514, 525, 531, 533, 534)

$116.99

$

In Stock, only 1 left!

0

14

Ariens 07151500

WHL, RH 10.50"
(Superseded to 51115900)

Note: (911330, 396, 514, 525, 531, 533, 534)

$116.99

$

In Stock, only 1 left!

0

14

Ariens 07103900

10 1/2 TIRE SKIN
(Superseded to 51115900)

Note: (911330, 396, 514, 525, 531, 533, 534)

$116.99

$

In Stock, only 1 left!

0

14

Ariens 07152500

TIRE, REAR 10X1.75 #6 GRAY
(Superseded to 51116200)

Note: (911086, 532)

$101.99

$

In Stock, only 1 left!

0

15

Ariens 01149600

SPACER TUBE, SELF PROPEL

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

Note: (911086, 102, 514, 525, 531, 532, 533)

$2.49

$

In Stock, only 1 left!

0

16

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

Note: (911330, 396, 525, 534)

$2.49

$

In Stock, only 1 left!

0

17

Ariens 01154251

QUADRANT, REAR LH

$62.99

$

In Stock, only 1 left!

0

17

Ariens 01154351

QUADRANT, REAR RH

$55.99

$

Usually ships in 4-12 days

0

18

Ariens 01137251

RH HANDLEBAR MTG. BRKT

Note: (911086, 330, 514, 525, 531, 532, 533, 534)

$50.99

$

In Stock, only 1 left!

0

18

Ariens 01137151

LH HANDLEBAR MTG. BRKT

Note: (911086, 330, 514, 525, 531, 532, 533, 534)

$55.99

$

Usually ships in 4-12 days

0

18

Ariens 01177451

RH HANDLEBAR MOUNT WELDMENT

Note: (911102, 396)

$

$

Not available

18

Ariens 01177551

LH HANDLEBAR MOUNT WELDMENT

Note: (911102, 396)

$155.99

$

Usually ships in 4-12 days

0

19

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: (911330, 396, 525, 534)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: (911086, 102, 514, 525, 531, 532, 533)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07149900

WHL 7.50" .50 BORE, 1.50 HUB

Note: (911330, 396, 514, 525, 531, 533, 534)

$25.99

$

In Stock, Qty 20+

0

20

Ariens 07152400

TIRE, FRONT 7X1.50

Note: (911086, 532)

$39.99

$

In Stock, Qty 6

0

21

Ariens 01130700

REAR ADJUSTMENT BRACKET L.H.

$

$

Not available

21

Ariens 01150400

REAR BRACKET & BEARING ASSY RH

Note: (911086, 330, 514, 525, 531, 532, 533, 534)

$112.99

$

Usually ships in 4-12 days

0

21

Ariens 01130800

REAR ADJUSTMENT BRACKET R.H.

Note: (911102, 396)

$45.99

$

Usually ships in 4-12 days

0

21

Ariens 01130700

REAR ADJUSTMENT BRACKET L.H.

Note: (911102, 396)

$

$

Not available

22

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

Note: (911086, 102, 514, 525, 531, 532, 533)

$2.49

$

In Stock, only 1 left!

0

24

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (911086, 102, 514, 525, 531, 532, 533)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

Note: (911086, 102, 514, 525, 531, 532, 533)

$20.99

$

In Stock, only 1 left!

0

26

Ariens 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

$83.99

$

Usually ships in 4-12 days

0

26

Ariens 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

$64.99

$

In Stock, only 1 left!

0

27

Ariens 01168900

FRONT AXLE

Note: (911086, 102, 514, 525, 531, 532, 533)

$64.99

$

Usually ships in 4-12 days

0

28

Ariens 01154051

FRONT QUADRANT, LH

Note: (911086, 102, 514, 525, 531, 532, 533)

$51.99

$

In Stock, only 1 left!

0

28

Ariens 01154151

FRONT QUADRANT, RH

Note: (911086, 102, 514, 525, 531, 532, 533)

$

$

Not available

29

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

Note: (911086, 102, 514, 525, 531, 532, 533)

$2.99

$

In Stock, Qty 20+

0

30

Ariens 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: (911102)

$17.99

$

Usually ships in 4-12 days

0

31

Ariens 01242751

GUARD, LM VALVE COVER

Note: (911102)

$170.99

$

In Stock, only 1 left!

0
