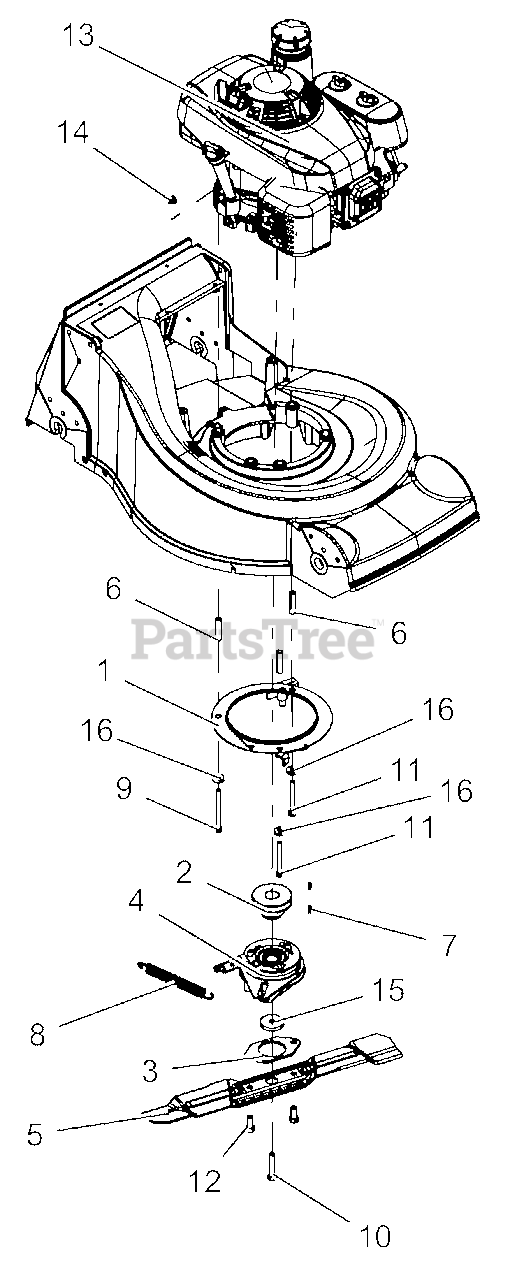

911288 - Gravely 21" Walk-Behind Mower, Honda (SN: 000101 & Above) Engine And Blade Parts Diagram

21" Walk-Behind Mower, Honda

Engine And Blade Parts Diagram

  • Title

1

Gravely 04667900

WLDMT, PLATE -BBC

$

$

Not available

2

Gravely 07341800

PULLEY, GROUND DRIVE-WLDMT

$

$

Not available

3

Gravely 04668800

SPCR, BBC BLADE

$

$

Not available

4

Gravely 04695800

HONDA, BBC

$

$

Not available

5

Gravely 04711200

BLADE, MOWER 21" HIGH-LIFT

$27.99

$

In Stock, only 1 left!

0

6

Gravely 05501212

BSHG, SLV .322 X .438 X 1.824

$

$

Not available

7

Gravely 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, Qty 12

0

8

Gravely 08300608

SPRG, EXTENSION BBC

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 05948000

BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

10

Gravely 05976600

BLT-HEX .38-24X2.00 YWZC GR8

$2.99

$

In Stock, only 4 left!

0

11

Gravely 05937200

BLT-HEX .31-24X2.75 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 05943000

BLT-HEX M10 X 1.5X20 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 08200937

ENGINE, HONDA BBC-CARB

$

$

Not available

14

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06400932

WSHR-FL-STL .400X1.75X.250

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0
