911286 - Gravely 21" Walk-Behind Mower, Honda (SN: 000101 & Above) Mower Deck Parts Diagram

21" Walk-Behind Mower, Honda

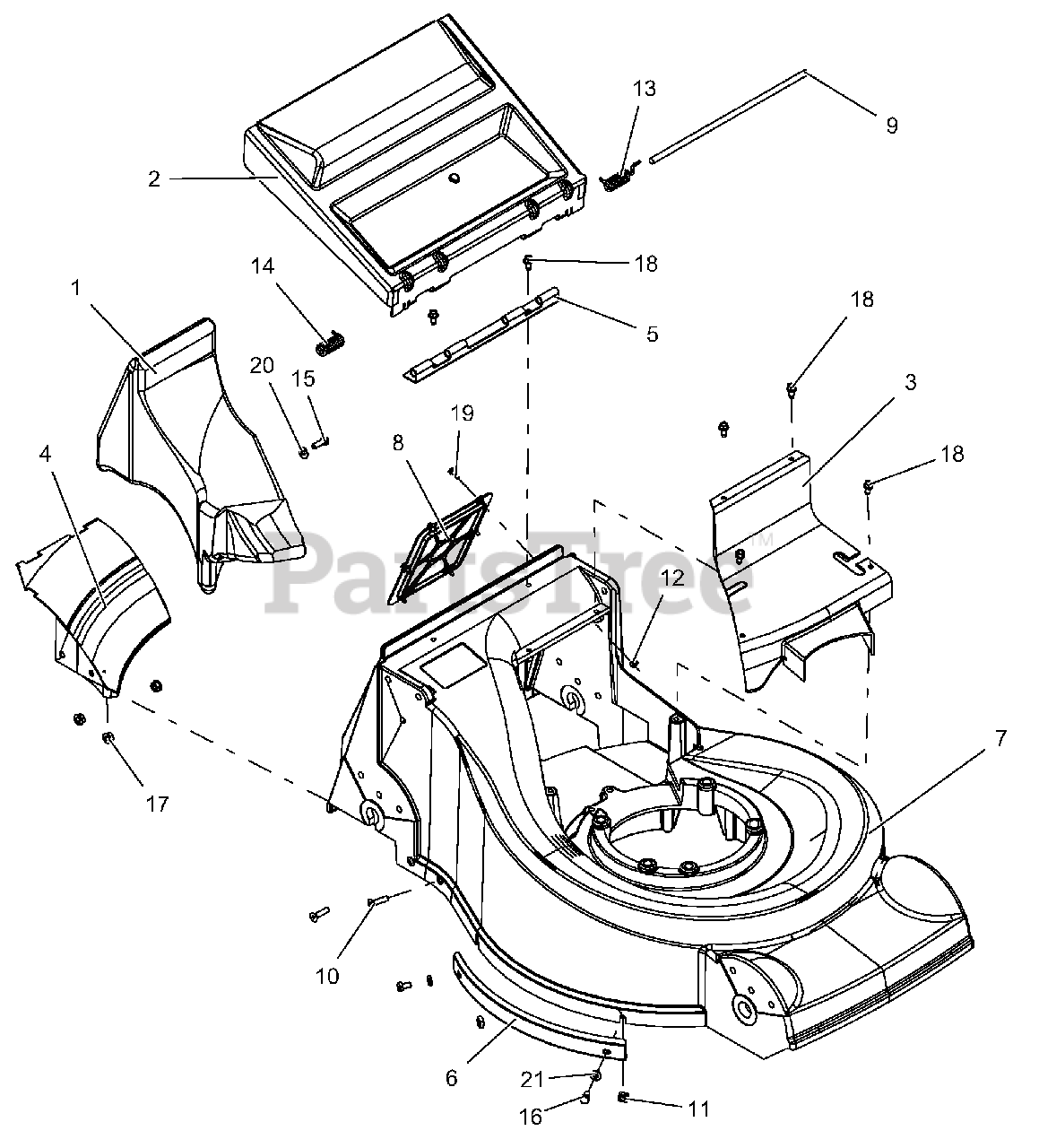

Mower Deck Parts Diagram

  • Title

1

Gravely 04664500

PLUG, MULCH

$55.99

$

Usually ships in 4-12 days

0

2

Gravely 51117500

DOOR, DISCHARGE

$

$

Not available

3

Gravely 04664700

COVER, FRONT

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 04664800

CHUTE, DISCHARGE

$9.99

$

Usually ships in 4-12 days

0

5

Gravely 04664951

HINGE, DISCHARGE DOOR

$

$

Not available

6

Gravely 04665251

GUARD, EDGE

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 51117400

DECK, MOWER 21"

$

$

Not available

8

Gravely 04667800

PANEL, ACCESS

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 04674200

PIN, DISCHARGE DOOR

$4.49

$

Usually ships in 4-12 days

0

10

Gravely 06100218

SCR, MACHINE .25-20 X .875 FLATHD

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 06500718

NUT, SQUARE - .25-20 YWZC

$

$

Not available

12

Gravely 06531300

NUT-LK-NYL #8-32 YWZC

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 08300602

SPRG, TORSION - DOOR LH

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 08300603

SPRG, TORSION - DOOR RH

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07400034

SCR-TAP .25-20X.50 HWH TRZ YW
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 07415600

SCR-TAP 8-32X.50 HWH TR YWZC

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06442300

WSHR-FL-STL.250X.562X.049YWZC

$1.99

$

Usually ships in 4-12 days

0
