911284 - Gravely 21" Walk-Behind Mower, Kawasaki (SN: 000101 - 000153) Transmission Parts Diagram

21" Walk-Behind Mower, Kawasaki

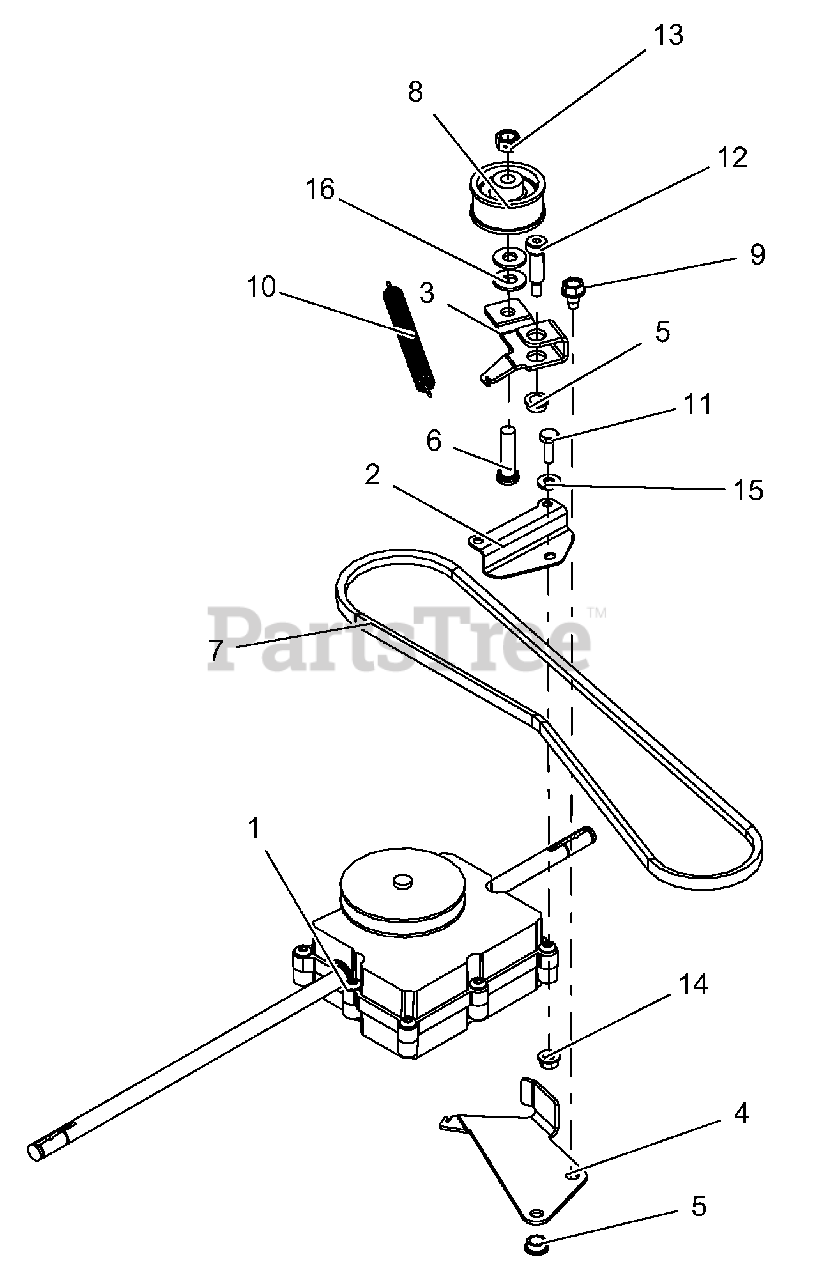

Transmission Parts Diagram

  • Title

1

Gravely 04667100

TRANS, 21" MOWER, 3 SPD

$448.99

$

Usually ships in 4-12 days

0

2

Gravely 04667200

BRKT, TRANS

$

$

Not available

3

Gravely 04669100

ARM, IDLER

$

$

Not available

4

Gravely 04669200

BRKT, IDLER

$

$

Not available

5

Gravely 05501203

BSHG, IDLER ARM

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 07001719

BOLT, STUD

$

$

Not available

7

Gravely 07200637

V-BELT, 3L SECTION

$35.99

$

In Stock, only 1 left!

0

8

Gravely 07326500

IDLER, FLAT 1.875 OD X .75 WIDE

$25.99

$

In Stock, only 1 left!

0

9

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 08300607

SPRG, EXTENSION

$3.49

$

In Stock, only 1 left!

0

11

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 07001720

BLT-SHLDR .375X1.00X.25-20

$

$

Not available

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
