911284 - Gravely 21" Walk-Behind Mower, Kawasaki (SN: 000101 - 000153) Engine And Blade Parts Diagram

21" Walk-Behind Mower, Kawasaki

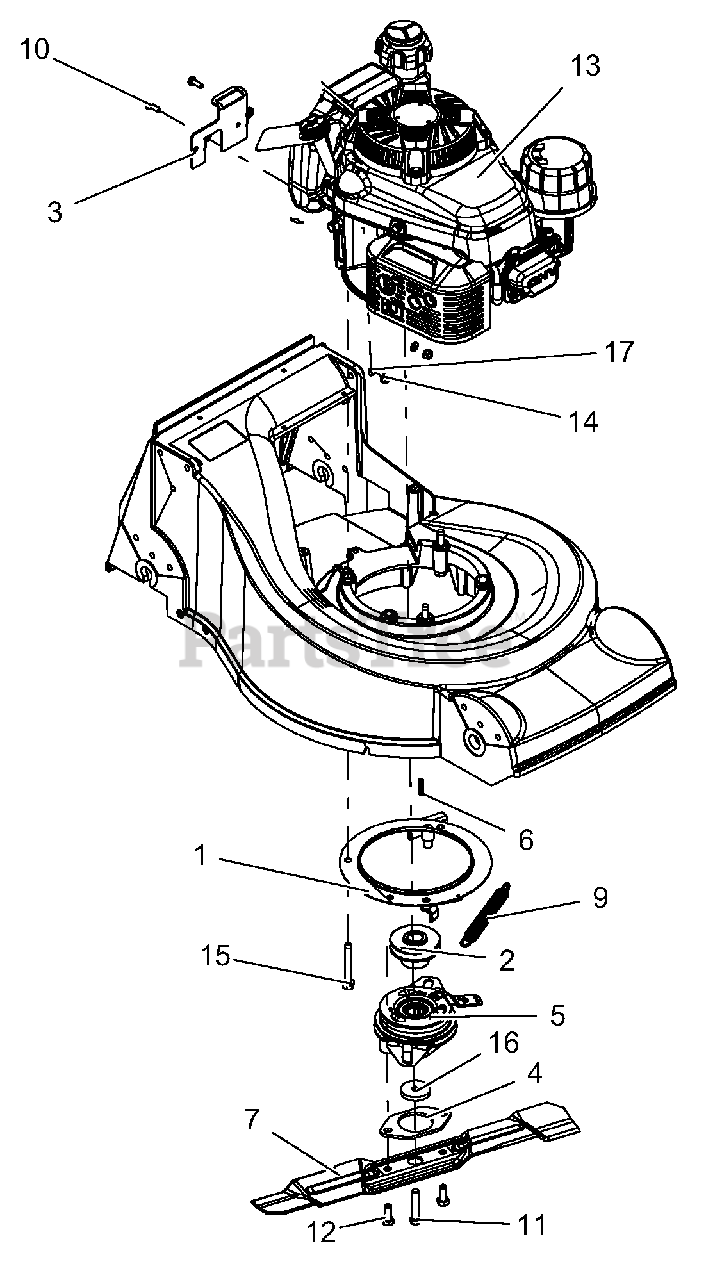

Engine And Blade Parts Diagram

  • Title

1

Gravely 04667900

WLDMT, PLATE -BBC

$

$

Not available

2

Gravely 07341900

PULLEY, SP, KAWI, BBC

$

$

Not available

3

Gravely 04668651

BRKT, FUEL TANK

$

$

Not available

4

Gravely 04668800

SPCR, BBC BLADE

$

$

Not available

5

Gravely 04695700

KAWASAKI, BBC

$168.99

$

In Stock, only 1 left!

0

6

Gravely 04701500

KEY 3/16 X 3/16 X 1

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 04711200

BLADE, MOWER 21" HIGH-LIFT

$27.99

$

In Stock, only 1 left!

0

9

Gravely 08300608

SPRG, EXTENSION BBC

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05976600

BLT-HEX .38-24X2.00 YWZC GR8

$2.99

$

In Stock, only 4 left!

0

12

Gravely 05943000

BLT-HEX M10 X 1.5X20 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 08200934

ENGINE, KAWASAKI BBC CARB

$

$

Not available

14

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07416100

SCR-TAP.375-16X2.75 HWH TR YZ

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 06400932

WSHR-FL-STL .400X1.75X.250

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 06442300

WSHR-FL-STL.250X.562X.049YWZC

$1.99

$

Usually ships in 4-12 days

0
