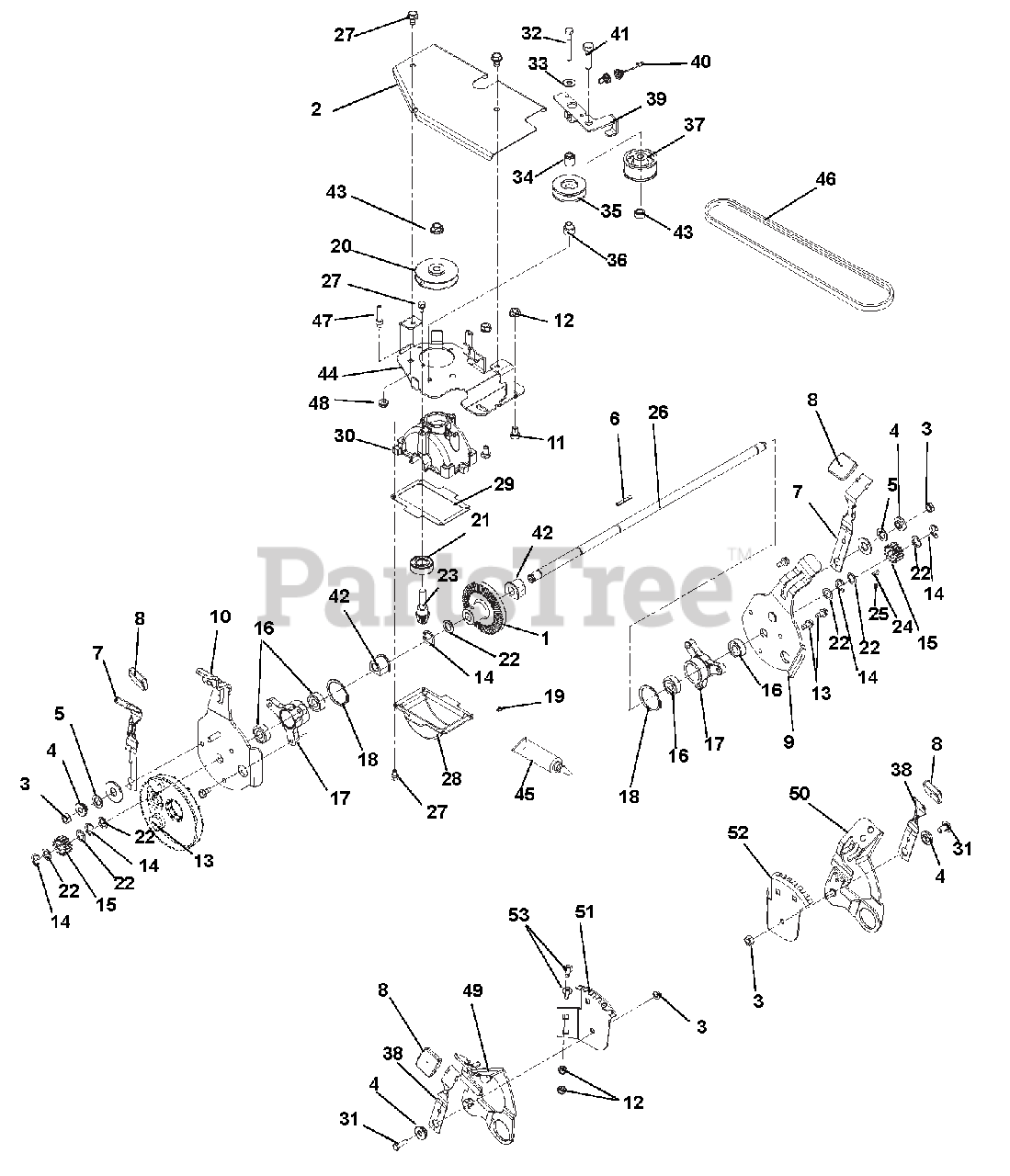

911281 (PRO 21) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 000101 & Above) Transmission And Height Of Cut Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki

Transmission And Height Of Cut Parts Diagram

  • Title

1

Ariens 01290400

GEAR, BEVEL (CU INFL, KEYWAY)

$55.99

$

In Stock, only 1 left!

0

2

Ariens 01291851

COVER, TRANSMISSION

$30.99

$

Usually ships in 4-12 days

0

3

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

5

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

6

Ariens 06600211

KEY, 1/8 X 1/8 X 1.0

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 01242000

LEVER, HEIGHT ADJUSTMENT

$25.99

$

In Stock, only 1 left!

0

8

Ariens 07513600

KNOB

$7.99

$

In Stock, only 2 left!

0

9

Ariens 00979700

WLDMT, HEIGHT ADJUSTER RHS

$79.99

$

Usually ships in 4-12 days

0

10

Ariens 00979600

WLDMT, HEIGHT ADJUSTER LHS

$79.99

$

Usually ships in 4-12 days

0

11

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05715600

RG-RTNG-EXT.50 X .034

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 00670700

PINION-WBLM DRIVE

$9.49

$

In Stock, only 2 left!

0

16

Ariens 05400007

BEARING, .500X1.125X.375

$9.49

$

Usually ships in 4-12 days

0

17

Ariens 00979800

BUSHING, HEIGHT ADJUSTER PIVOT

$25.99

$

Usually ships in 4-12 days

0

18

Ariens 05713200

RG-RTNG-EXT 1.387X.050

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

20

Ariens 01255100

PULLEY, TRANS INPUT

$

$

Not available

21

Ariens 05435100

BRG-BALL .625X1.375X.43

$14.99

$

In Stock, Qty 20+

0

22

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

23

Ariens 01255500

PINION, GEARBOX INPUT

$64.99

$

In Stock, only 1 left!

0

24

Ariens 06600004

KEY-WDRF .125X.50X.20 (HRDEND)

$2.49

$

In Stock, Qty 20+

0

25

Ariens 08300016

SPRING, .134X.180X.144 COMP.

$3.49

$

In Stock, Qty 14

0

26

Ariens 01325200

SHAFT, TRANS COMMERCIAL 21

$90.99

$

Usually ships in 4-12 days

0

27

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 04051951

SUMP, GEARBOX - XD

$12.99

$

Usually ships in 4-12 days

0

29

Ariens 01256400

GASKET, TRANSMISSION

$15.99

$

Usually ships in 4-12 days

0

30

Ariens 01255000

HOUSING, WBLM GEAR BOX

$67.99

$

Usually ships in 4-12 days

0

31

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 05952700

BLT-HEX .25-20X2.25 GR8 YWZC
(Superseded to 05901638)

$3.99

$

In Stock, only 2 left!

0

33

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 01259000

SPACER, IDLER ARM

$3.99

$

In Stock, only 1 left!

0

35

Ariens 00444400

IDLER, 3L FRONT SIDE .38X1.875

$22.99

$

In Stock, Qty 6

0

36

Ariens 01258900

SPACER, V-IDLER PULLEY

$3.99

$

In Stock, only 2 left!

0

37

Ariens 07326500

IDLER - FLAT 1.875OD X .75WIDE

$25.99

$

In Stock, only 1 left!

0

38

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

$20.99

$

In Stock, only 1 left!

0

39

Ariens 01280500

ARM-TRANS IDLER

$103.99

$

Usually ships in 4-12 days

0

40

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$5.99

$

In Stock, only 1 left!

0

41

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 01255300

BUSHING, TRANS OUTPUT SHAFT

$5.99

$

Usually ships in 4-12 days

0

43

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 03997651

BRKT, TRANSMISSION MOUNT

$38.99

$

Usually ships in 4-12 days

0

45

Ariens 00902700

LUBRICATE

$

$

Not available

46

Ariens 07200114

V-BELT, 3L-WRAPPED

$23.99

$

In Stock, Qty 6

0

47

Ariens 01265600

FINGER, BELT

$

$

Not available

48

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 01176800

RH ADJUSTER BRACKET

$64.99

$

Usually ships in 4-12 days

0

50

Ariens 01176900

LH ADJUSTER BRACKET

$48.99

$

Usually ships in 4-12 days

0

51

Ariens 01154100

FRONT QUADRANT, R.H.
(Superseded to 01154151)

$

$

Not available

52

Ariens 01154000

FRONT QUADRANT, L.H.
(Superseded to 01154051)

$51.99

$

In Stock, only 1 left!

0

53

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0
