911280 (XD 21) - Gravely 21" Walk-Behind Mower, 5.5hp Kawasaki (SN: 000101 & Above) Transmission and Height of Cut Parts Diagram

21" Walk-Behind Mower, 5.5hp Kawasaki

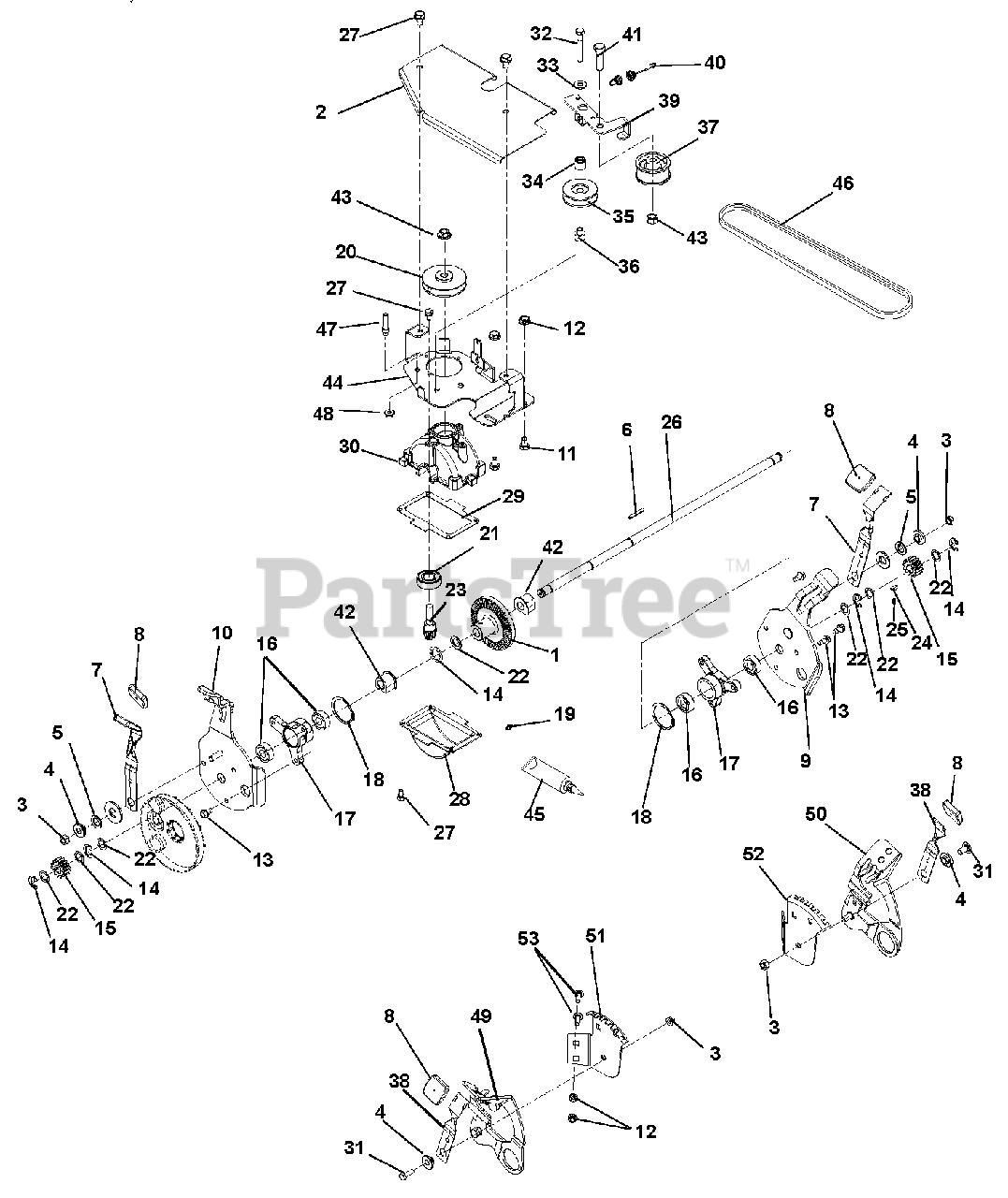

Transmission and Height of Cut Parts Diagram

  • Title

1

Gravely 01290400

Gear, Reduction

$55.99

$

In Stock, only 1 left!

0

2

Gravely 01291851

Cover, Transmission

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 06529800

Nut, Locking, Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05514800

Bushing, Flange .265 x .437 x .250 x .750

$2.49

$

In Stock, only 3 left!

0

5

Gravely 06441100

Washer, Flat, Steel .52 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 06600211

Key, 1/8 x 1/8 x 1.0

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 01242000

Lever, Height Adjustment

$25.99

$

In Stock, only 1 left!

0

8

Gravely 07513600

Knob

$7.99

$

In Stock, only 2 left!

0

9

Gravely 00979700

Weldment, Height Adjuster RHS

$79.99

$

Usually ships in 4-12 days

0

10

Gravely 00979600

Weldment, Height Adjuster LHS

$79.99

$

Usually ships in 4-12 days

0

11

Gravely 05947200

Bolt, Hex .31-18 x .50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

12

Gravely 06543100

Nut, Locking, Top, Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05715600

Ring, Retaining, Internal .50 x .049

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 00670700

Pinion, WBLM Drive

$9.49

$

In Stock, only 2 left!

0

16

Gravely 05400007

Bearing, .375 x .875 x .281

$9.49

$

Usually ships in 4-12 days

0

17

Gravely 00979800

Bushing, Height Adjuster Pivot

$25.99

$

Usually ships in 4-12 days

0

18

Gravely 05713200

Ring, Retaining External 1.387 x .050

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 07012600

Fitting, Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

20

Gravely 01255100

Half, Transmission Input Pulley

$

$

Not available

21

Gravely 05435100

Bearing, Ball .625 x 1.375 x .43

$14.99

$

In Stock, Qty 20+

0

22

Gravely 06400015

Washer, .500 x .750 x .020 Thrust

$1.49

$

In Stock, Qty 20+

0

23

Gravely 01255500

Pinion, Gearbox Input

$64.99

$

In Stock, only 1 left!

0

24

Gravely 06600004

Key, Woodruff .125 x .50 x .20

$2.49

$

In Stock, Qty 20+

0

25

Gravely 08300016

Spring, .134 x .186 x .144 Compression

$3.49

$

In Stock, Qty 14

0

26

Gravely 01325200

Shaft, Transmission Output

$90.99

$

Usually ships in 4-12 days

0

27

Gravely 07400033

Screw, Tapping 10-24 x .375 Hex Washer Head
(Superseded to 07400137)

$3.49

$

In Stock, only 2 left!

0

28

Gravely 04051951

Sump, Gearbox

$12.99

$

Usually ships in 4-12 days

0

29

Gravely 01256400

Gasket, Transmission

$15.99

$

Usually ships in 4-12 days

0

30

Gravely 01255000

Casting, WBLM Gear Box

$67.99

$

Usually ships in 4-12 days

0

31

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05952700

Bolt, Hex .25-20 x 2.25 Grade 8
(Superseded to 05901638)

$3.99

$

In Stock, only 2 left!

0

33

Gravely 06435800

Washer, Flat Steel .328 x 1.0 x .094
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 01259000

Spacer, .390 x .75 x .189

$3.99

$

In Stock, only 1 left!

0

35

Gravely 00444400

Idler, 3L Front Side .38 x 1.875

$22.99

$

In Stock, Qty 6

0

36

Gravely 01258900

Spacer, Idler Pulley

$3.99

$

In Stock, only 2 left!

0

37

Gravely 07326500

Idler, Flat 1.875OD x .75 Wide

$25.99

$

In Stock, only 1 left!

0

38

Gravely 01120000

Front Height Adjustment Lever

$20.99

$

In Stock, only 1 left!

0

39

Gravely 01280500

Arm, Transmission Idler

$103.99

$

Usually ships in 4-12 days

0

40

Gravely 08325200

Spring, Tension .051 x .60 x 2.25

$5.99

$

In Stock, only 1 left!

0

41

Gravely 05958000

Bolt, Hex .38-16 x 1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 01255300

Bushing, Transmission Output Shaft

$5.99

$

Usually ships in 4-12 days

0

43

Gravely 06542000

Nut, Locking, Top, Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 03997651

Bracket, Transmission Control

$38.99

$

Usually ships in 4-12 days

0

45

Gravely 00902700

Lubricate

$

$

Not available

46

Gravely 07200114

V-Belt 3L 35.98

$23.99

$

In Stock, Qty 5

0

47

Gravely 01265600

Finger, Belt

$

$

Not available

48

Gravely 06530100

Nut, Locking, Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

49

Gravely 01176800

Right Hand Adjuster Bracket

$64.99

$

Usually ships in 4-12 days

0

50

Gravely 01176900

Left Hand Adjuster Bracket

$48.99

$

Usually ships in 4-12 days

0

51

Gravely 01154100

Front Quadrant, Right Hand
(Superseded to 01154151)

$

$

Not available

52

Gravely 01154000

Front Quadrant, Left Hand
(Superseded to 01154051)

$51.99

$

In Stock, only 1 left!

0

53

Gravely 06200007

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0
