911270 (XD 21) - Gravely 21" Walk-Behind Mower 6hp Kawasaki (SN: 000101 & Above) Handlebar and Controls Parts Diagram

21" Walk-Behind Mower 6hp Kawasaki

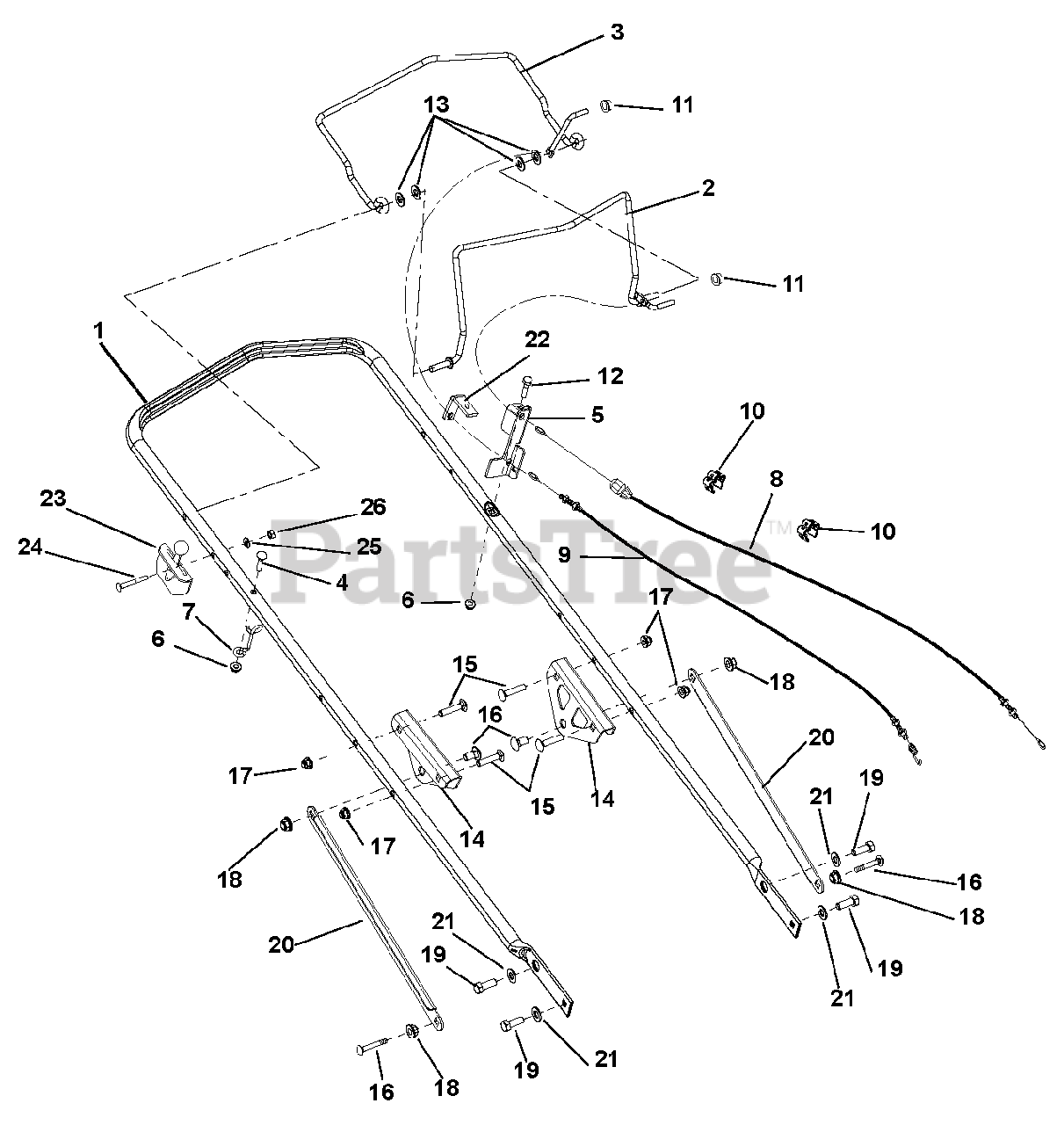

Handlebar and Controls Parts Diagram

  • Title

1

Gravely 04057851

Handlebar

$

$

Not available

2

Gravely 03997851

Bail, Operator Presence

$54.99

$

Usually ships in 4-12 days

0

3

Gravely 03997951

Bail, Clutch

$60.99

$

Usually ships in 4-12 days

0

4

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 1 left!

0

5

Gravely 01256251

Anchor, Cable Thumb Adjustment
(Superseded to 03882351)

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 06543500

Nut, Locking, Top, Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 04642100

Guide, Pullcord

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 01292500

Cable, Operator Presence Control

$42.99

$

In Stock, only 4 left!

0

9

Gravely 04061100

Cable, Commercial 21 Traction

$60.99

$

Usually ships in 4-12 days

0

10

Gravely 07539300

Clip, Conduit

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 02215300

Push Nut, .25

$1.99

$

In Stock, Qty 16

0

12

Gravely 05947400

Bolt, Hex .25-20 x 1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

13

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00980051

Bracket, Handlebar Reforcement

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

16

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05959400

Bolt, Hex .38-16 x .75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 00612751

Strap, Handlebar

$19.99

$

Usually ships in 4-12 days

0

21

Gravely 06436200

Washer, Flat, Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

04320851

Bracket, PTO Cable, Honda XD (911273)

Note: (911273)

$

$

Not available

23

Gravely 06900101

Throttle Control, Honda (911273)

Note: (911273)

$59.99

$

Usually ships in 4-12 days

0

24

Gravely 06220000

Bolt, Round Head Square Neck .25-20 x 1.75 (911273)
(Superseded to 06200404)

Note: (911273)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 06442300

Washer, Flat, Steel .25 x .562 x .049 (911273)

Note: (911273)

$1.99

$

Usually ships in 4-12 days

0

26

Gravely 06529700

Nut, Locking, Center .25-20 (911273)
(Superseded to 06500812)

Note: (911273)

$0.99

$

In Stock, Qty 20+

0
