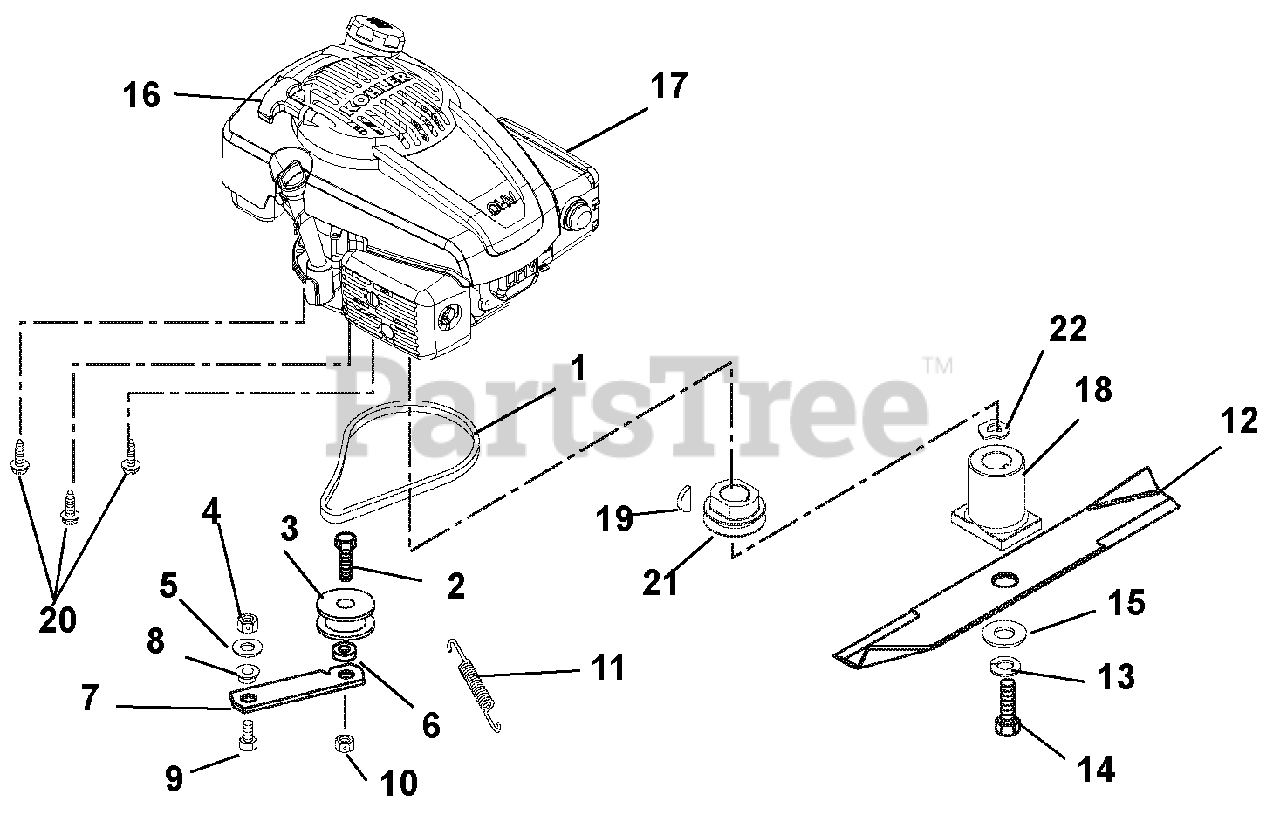

911264 (LM 21 SW) - Gravely 21" Walk-Behind Mower, Swivel Wheels, Kohler (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Walk-Behind Mower, Swivel Wheels, Kohler

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 07217100

V-Belt 3L Section

$34.99

$

In Stock, Qty 6

0

2

Gravely 05962800

Bolt, Hex .44-14 x 1.50 Grade 5
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

3

Gravely 07313300

Idler, Flat 1.75 x .47

$35.99

$

In Stock, Qty 7

0

4

Gravely 06529800

Nut, Locking Center .31 -18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05533300

Bushing, Sleeve .469 x .75 x .43

$3.99

$

In Stock, Qty 11

0

7

Gravely 01141200

Idler Arm

$22.99

$

In Stock, only 2 left!

0

8

Gravely 05515400

Bushing, Flange .325 x .501 x .250 x 1.120

$3.99

$

In Stock, only 2 left!

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06536400

Nut, Locking Center .44-14
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

11

Gravely 08321100

Spring, Tension .043 x .44 x 3.31

$6.49

$

In Stock, Qty 6

0

12

Gravely 01137000

Blade, 21" Mower

$25.99

$

In Stock, Qty 20+

0

13

Gravely 06308800

Washer, Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05976600

Bolt, Hex .38-24 x 2.00 Grade 8

$2.99

$

In Stock, only 4 left!

0

15

Gravely 06441700

Washer, Flat Steel .390 x 1.50 x .125

$3.99

$

In Stock, only 1 left!

0

16

Gravely 01157100

Recoil Start Handle

$7.99

$

In Stock, only 1 left!

0

17

Gravely 08200312

Engine, Kohler XT-7 (911260, 262, 264)

Note: (911260, 262, 264)

$

$

Not available

17

00820313

Engine, Kohler XT-7 CARB (911261, 263, 265)

Note: (911261, 263, 265)

$

$

Not available

17

00200026

Engine, Kawasaki 6.0hp Consumer (911136, 137)

Note: (911136, 137)

$

$

Not available

18

Gravely 09735100

Adapter, Blade

$45.99

$

Usually ships in 4-12 days

0

19

Gravely 06600900

Key, Woodruff .156 x .625 x .25 SAE #6 (911136, 137, 262, 263, 264, 265)

Note: (911136, 137, 262, 263, 264, 265)

$2.49

$

In Stock, Qty 12

0

20

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 09733100

Pulley, Sintered Iron (911136, 137, 262, 263, 264, 265)
(Superseded to 04851300)

Note: (911136, 137, 262, 263, 264, 265)

$16.99

$

Usually ships in 4-12 days

0

22

Gravely 01192900

Washer, Wave .885 x 1.311 x .125

$4.99

$

In Stock, Qty 6

0
