911263 (LM 21 S) - Gravely 21" Walk-Behind Mower, Kohler XT-7, CARB (SN: 000101 & Above) Mower Pan And Bag Parts Diagram

21" Walk-Behind Mower, Kohler XT-7, CARB

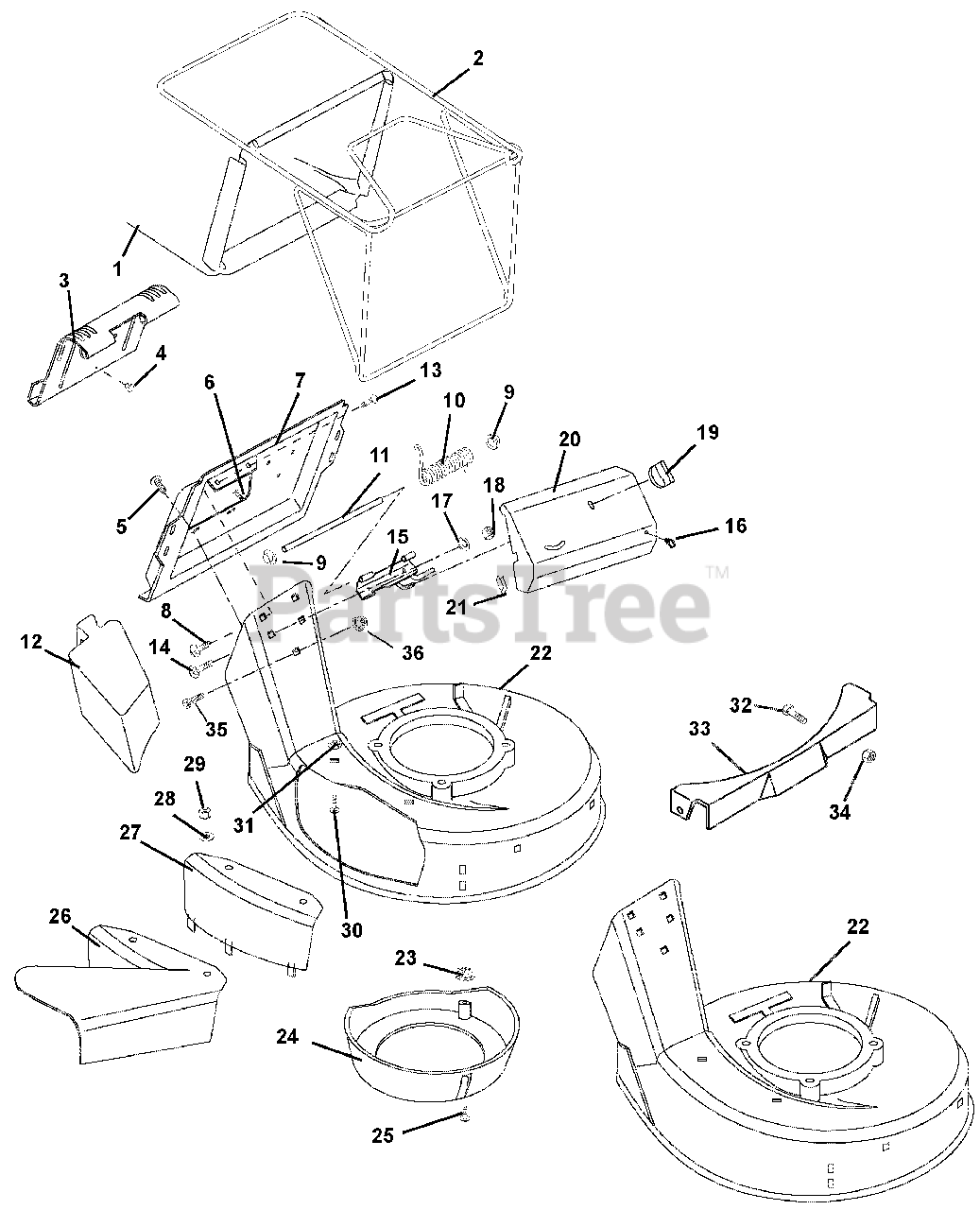

Mower Pan And Bag Parts Diagram

  • Title

1

Gravely 01180500

Bag, Consumer Black

$116.99

$

In Stock, only 1 left!

0

2

Gravely 01138751

Frame, Bagger
(Superseded to 01241851)

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 01136553

Door, Catcher Plate

$

$

Not available

4

Gravely 07516000

Button Bumper

$0.99

$

In Stock, Qty 14

0

5

Gravely 07411900

Screw, Tapping Hex Washer 12-24 x .50
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

6

Gravely 07414900

Screw, Tapping 10-24 x .38 Pan Head

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 01159753

Plate, Catcher

$93.99

$

Usually ships in 4-12 days

0

8

Gravely 06203900

Bolt, Round Head Square Neck .25-20 x .38

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 02215300

Nut, Push

$1.99

$

In Stock, Qty 16

0

10

Gravely 08322400

Spring, Torsion .120 x .68 x 3.09

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 01141000

Pin, Door

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 71102700

Mulch Master Mulcher Accessory

$51.99

$

In Stock, only 1 left!

0

13

Gravely 06530100

Nut, Locking Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 01155553

Hinge Base Weldment

$37.99

$

Usually ships in 4-12 days

0

16

Gravely 01166500

Clip, Snap In (911137, 264, 265)

Note: (911137, 264, 265)

$

$

Not available

17

Gravely 06308000

Washer, Locking .25 x .077

$

$

Not available

18

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

19

Gravely 01159300

Nut, Wing (911136, 137, 262, 263, 264, 265)

Note: (911136, 137, 262, 263, 264, 265)

$

$

Not available

20

Gravely 01158859

Drive Cover (911136, 137, 262, 263, 264, 265)
(Superseded to 01158800)

Note: (911136, 137, 262, 263, 264, 265)

$

$

Not available

21

Gravely 01155400

Trim Bumper
(Superseded to 01177300)

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 51107500

Mower Pan Head with Decals (911136, 137, 262, 263, 264, 265)

Note: (911136, 137, 262, 263, 264, 265)

$

$

Not available

22

Gravely 51107600

Mower Pan Head with Decals (911260, 261)

Note: (911260, 261)

$

$

Not available

23

Gravely 07507600

Grommet, Plastic

$0.99

$

In Stock, Qty 10

0

24

Gravely 01173700

Baffle, Center

$45.99

$

Usually ships in 4-12 days

0

25

Gravely 07415000

Screw, Tapping 10-16 x .62 Hex Washer Head

$

$

Not available

26

Gravely 01180200

Side Discharge Assembly

$35.99

$

In Stock, only 1 left!

0

27

Gravely 01180351

Side Discharge Cover

$38.99

$

In Stock, only 4 left!

0

28

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06530200

Nut, Locking Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06214100

Bolt, Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06222000

Bolt, Round Head Square Neck .31-18 x .50 Grade 5 (911136, 137, 262, 263, 264, 265)
(Superseded to 06200406)

Note: (911136, 137, 262, 263, 264, 265)

$2.99

$

In Stock, Qty 20+

0

33

Gravely 01183553

Front Panel (911136, 137, 262, 263, 264, 265)

Note: (911136, 137, 262, 263, 264, 265)

$79.99

$

Usually ships in 4-12 days

0

34

Gravely 06543100

Nut, Locking-Top-Flange .31-18 (911135, 136, 137, 138)
(Superseded to 06500904)

Note: (911135, 136, 137, 138)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05967000

Bolt, Hex .38-16 x .50 Grade 5 (911260, 261)

Note: (911260, 261)

$3.49

$

Usually ships in 4-12 days

0

36

Gravely 06534900

Nut, Locking Flange Nut, .375-16 (911260, 261)
(Superseded to 06500735)

Note: (911260, 261)

$1.49

$

In Stock, Qty 20+

0
