911253 (PRO 21 XD) - Gravely 21" Walk-Behind Mower, 6hp Kawasaki (SN: 000101 & Above) Wheels Parts Diagram

21" Walk-Behind Mower, 6hp Kawasaki

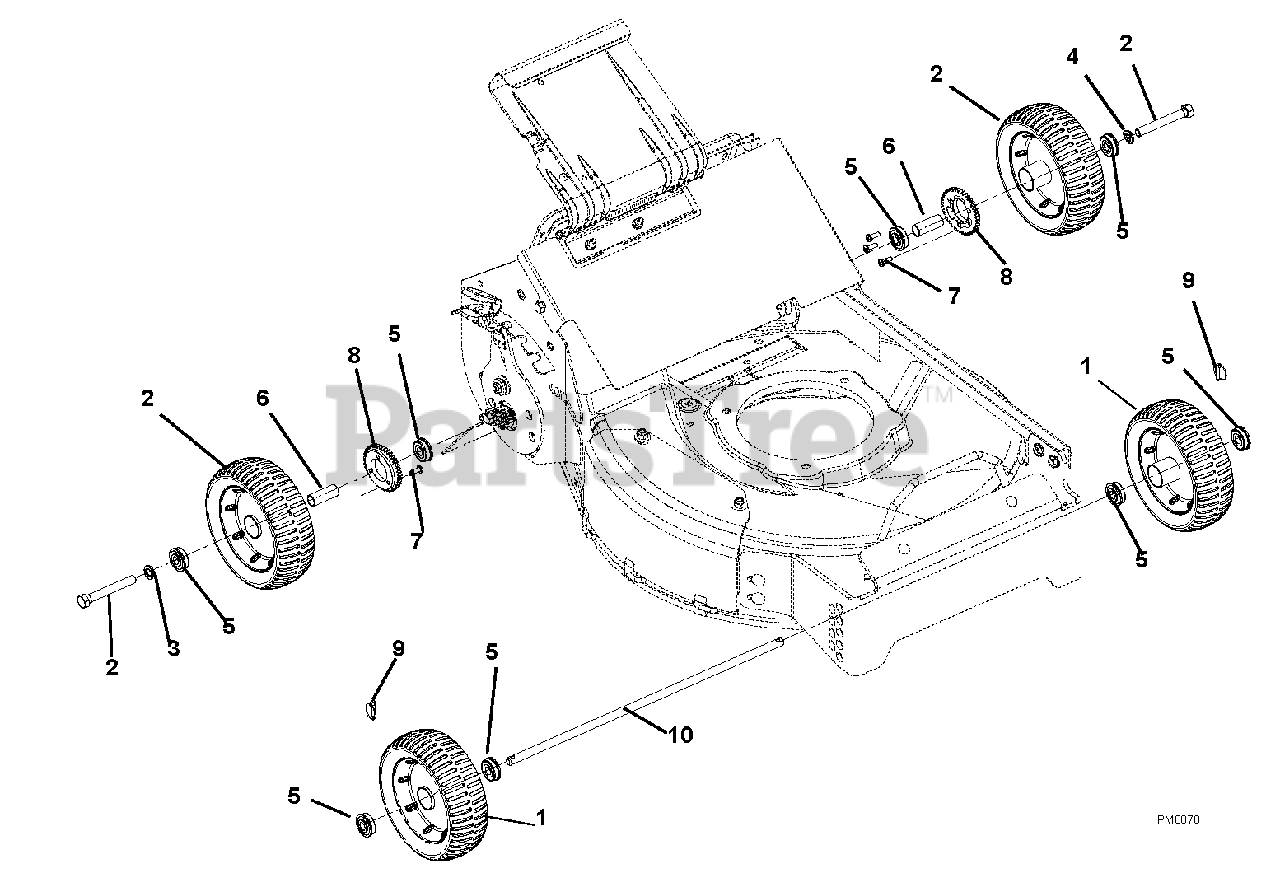

Wheels Parts Diagram

  • Title
1

Gravely 07100126

Wheel Assembly, 8.25 x 2.75 Front (Includes item 5)

Note: (Includes item 5)

$

$

Not available

2

Gravely 07100127

Wheel Assembly, 8.25 x 2.75 Rear (Includes items 5 and 6)

Note: (Includes items 5 and 6)

$171.99

$

In Stock, only 3 left!

0

3

Gravely 05960100

Bolt, Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 06307300

Washer, Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

5

Gravely 05415000

Bearing, Ball .50 x 1.38 x .437

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 00611800

Spacer, Wheel

$

$

Not available

7

Gravely 07430000

Screw, Tapping 1/4-20 x 3/4

$0.99

$

Usually ships in 4-12 days

0

8

Gravely 01296500

Gear, Wheel

$

$

Not available

9

Gravely 07014500

Pin, Klik 1.000 x .188 x 1.25

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 00668800

Axle Shaft

$22.99

$

Usually ships in 4-12 days

0
