911253 (PRO 21 XD) - Gravely 21" Walk-Behind Mower, 6hp Kawasaki (SN: 000101 & Above) Transmission And Height Of Cut Parts Diagram

21" Walk-Behind Mower, 6hp Kawasaki

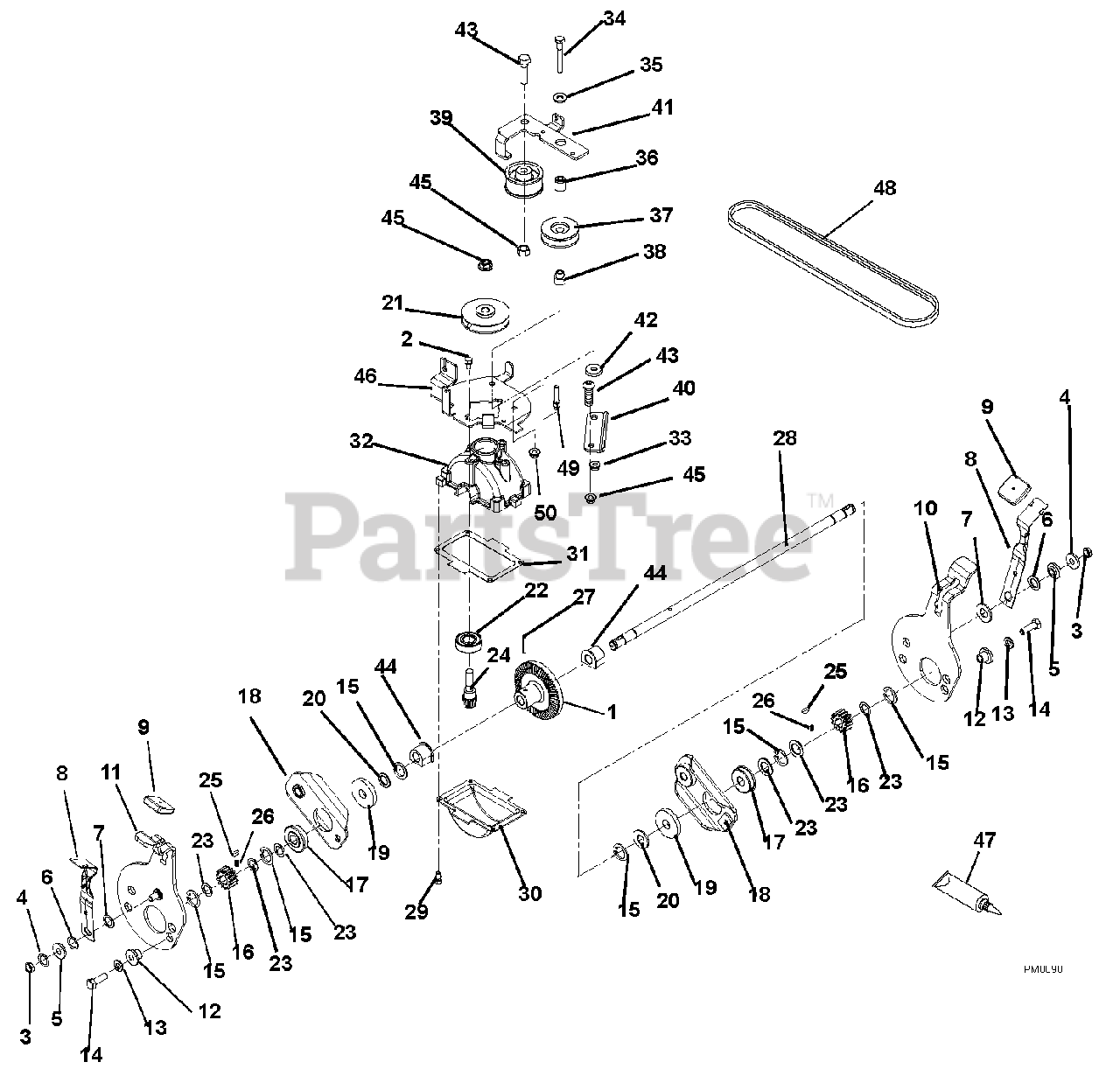

Transmission And Height Of Cut Parts Diagram

  • Title

1

Gravely 01255400

Gear, Reduction

$

$

Not available

2

Gravely 07412100

Screw, Tapping 10-24 x .375 Hex Washer Head Thread Rolling

$0.99

$

Usually ships in 4-12 days

0

3

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05513400

Bushing, Flange .265 x .437 x .250 x .750

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06441100

Washer, Flat-Steel .52 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

7

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 01242000

Lever, Height Adjustment

$25.99

$

In Stock, only 1 left!

0

9

Gravely 07513600

Knob

$7.99

$

In Stock, only 2 left!

0

10

Gravely 00675400

Plate, Detent Support Right

$

$

Not available

11

Gravely 00675500

Plate, Detent Support Left

$

$

Not available

12

Gravely 05514900

Bushing, Flange .325 x .500 x .513 x .875

$3.99

$

In Stock, Qty 12

0

13

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05715600

Ring, Retaining-Internal .50 x .049

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 00670700

Pinion, WBLM Drive

$9.49

$

In Stock, only 2 left!

0

17

Gravely 05480000

Bearing, Ball .50 x 1.38 x .438 Sealed

$13.99

$

In Stock, Qty 20+

0

18

Gravely 00661600

Arm, Wheel Mount

$

$

Not available

19

Gravely 06445000

Washer, Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

20

Gravely 06441900

Washer, Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 01255100

Half, Transmission Input Pulley

$

$

Not available

22

Gravely 05435100

Bearing, Ball .625 x 1.375 x .43

$14.99

$

In Stock, Qty 20+

0

23

Gravely 06400015

Washer, .500 x .750 x .020 Thrust

$1.49

$

In Stock, Qty 20+

0

24

Gravely 01255500

Pinion, Gearbox Input

$64.99

$

In Stock, only 1 left!

0

25

Gravely 06600004

Key, Woodruff .125 x .50 x .20

$2.49

$

In Stock, Qty 20+

0

26

Gravely 08300016

Spring, .134 x .186 x .144 Compression

$3.49

$

In Stock, Qty 14

0

27*

Gravely 05802900

Pin, Roll .156 x 1.00

$0.99

$

In Stock, Qty 18

0

28

Gravely 00619700

Shaft, Transmission Output

$

$

Not available

29

Gravely 07412100

Screw, Tapping 10-24 x .375 Hex Washer Head

$0.99

$

Usually ships in 4-12 days

0

30

Gravely 01255251

Sump, Gearbox

$38.99

$

Usually ships in 4-12 days

0

31

Gravely 01256400

Gasket, Transmission

$15.99

$

Usually ships in 4-12 days

0

32

Gravely 01255000

Casting, WBLM Gear Box

$67.99

$

Usually ships in 4-12 days

0

33

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 05952700

Bolt, Hex .25-20 x 2.25 Grade 8
(Superseded to 05901638)

$3.99

$

In Stock, only 2 left!

0

35

Gravely 06435800

Washer, Flat Steel .328 x 1.0 x .094
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 01259000

Spacer, .390 x .75 x .189

$3.99

$

In Stock, only 1 left!

0

37

Gravely 00444400

Idler, 3L Front Side .38 x 1.875

$22.99

$

In Stock, Qty 6

0

38

Gravely 01258900

Spacer, Idler Pulley

$3.99

$

In Stock, only 2 left!

0

39

Gravely 07326500

Idler, Flat 1.875OD x .75 Wide

$25.99

$

In Stock, only 1 left!

0

40

Gravely 00613551

Strap,Transmission

$

$

Not available

41

Gravely 01280500

Arm, Transmission Idler

$103.99

$

Usually ships in 4-12 days

0

42

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 01255300

Bushing, Transmission Output Shaft

$5.99

$

Usually ships in 4-12 days

0

45

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 01257600

Bracket, Transmission Control

$

$

Not available

47

Gravely 00902700

Lubricate

$

$

Not available

48

Gravely 07200114

V-Belt 3L 35.98

$23.99

$

In Stock, Qty 5

0

49

Gravely 01265600

Finger, Belt

$

$

Not available

50

Gravely 06530100

Nut, Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0
