911253 (PRO 21 XD) - Gravely 21" Walk-Behind Mower, 6hp Kawasaki (SN: 000101 & Above) Handlebar And Controls Parts Diagram

21" Walk-Behind Mower, 6hp Kawasaki

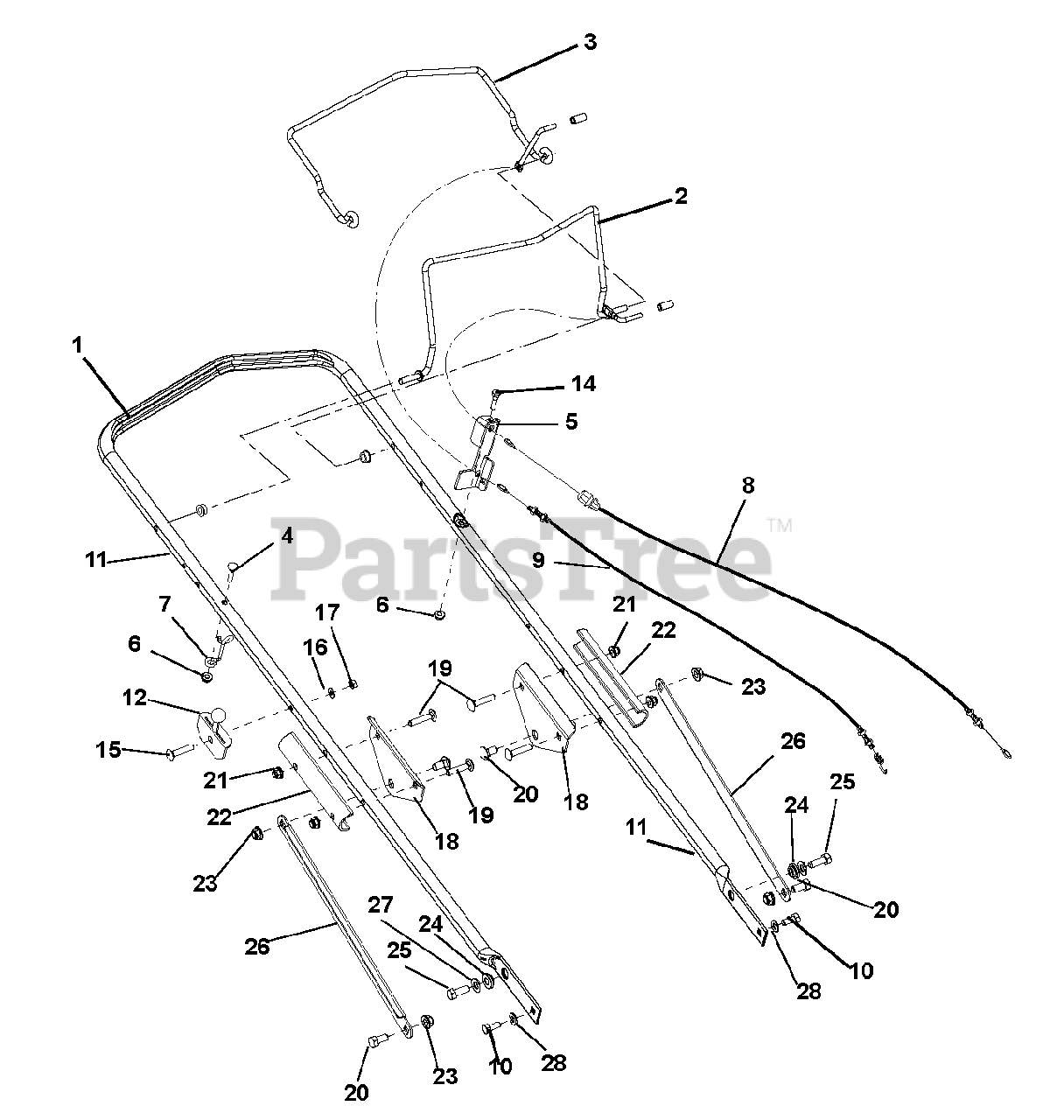

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 00612551

Handlebar

$

$

Not available

2

Gravely 01263751

Bail, Operator Presence

$60.99

$

Usually ships in 4-12 days

0

3

Gravely 01263851

Bail, Clutch

$

$

Not available

4

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 01250651

Anchor, Cable Thumb Adjustment

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 04642100

Guide, Pullcord

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 01283400

Cable, Operator Presence Control (911251, 255)

Note: (911251, 255)

$25.99

$

Usually ships in 4-12 days

0

Gravely 01283500

Cable, Operator Presence Control (911253)
(Superseded to 51113800)

Note: (911253)

$65.99

$

In Stock, only 1 left!

0

9

Gravely 01246500

Cable, XD Double Bail Drive

$64.99

$

Usually ships in 4-12 days

0

10

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07539300

Clip, Conduit (911253)

Note: (911253)

$3.49

$

Usually ships in 4-12 days

0

Gravely 07539300

Clip, Conduit (911251, 255)

Note: (911251, 255)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06900101

Throttle Control, Honda (911251, 255)

Note: (911251, 255)

$59.99

$

Usually ships in 4-12 days

0

13

Gravely 00581051

Plate, Hinge

$

$

Not available

14

Gravely 05947400

Bolt, Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

15

Gravely 06220000

Bolt, Round Head Square Neck .25-20 x 1.75 Grade 5
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06442300

Washer, Flat-Steel .25 x .562 x .049

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 06529700

Nut, Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 00612651

Plate, Handlebar

$

$

Not available

19

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

20

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 02722751

Service Bar Brace

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05515800

Bushing, Flange .406 x .88 x .270 x .140

$9.49

$

In Stock, only 4 left!

0

25

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00612751

Strap, Handlebar

$19.99

$

Usually ships in 4-12 days

0

27

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
