911220 (BRP 21) - Gravely Blade Runner 21" Push Walk-Behind Mower, Kohler XT-7 (SN: 000101 & Above) Handlebar And Controls Parts Diagram

Blade Runner 21" Push Walk-Behind Mower, Kohler XT-7

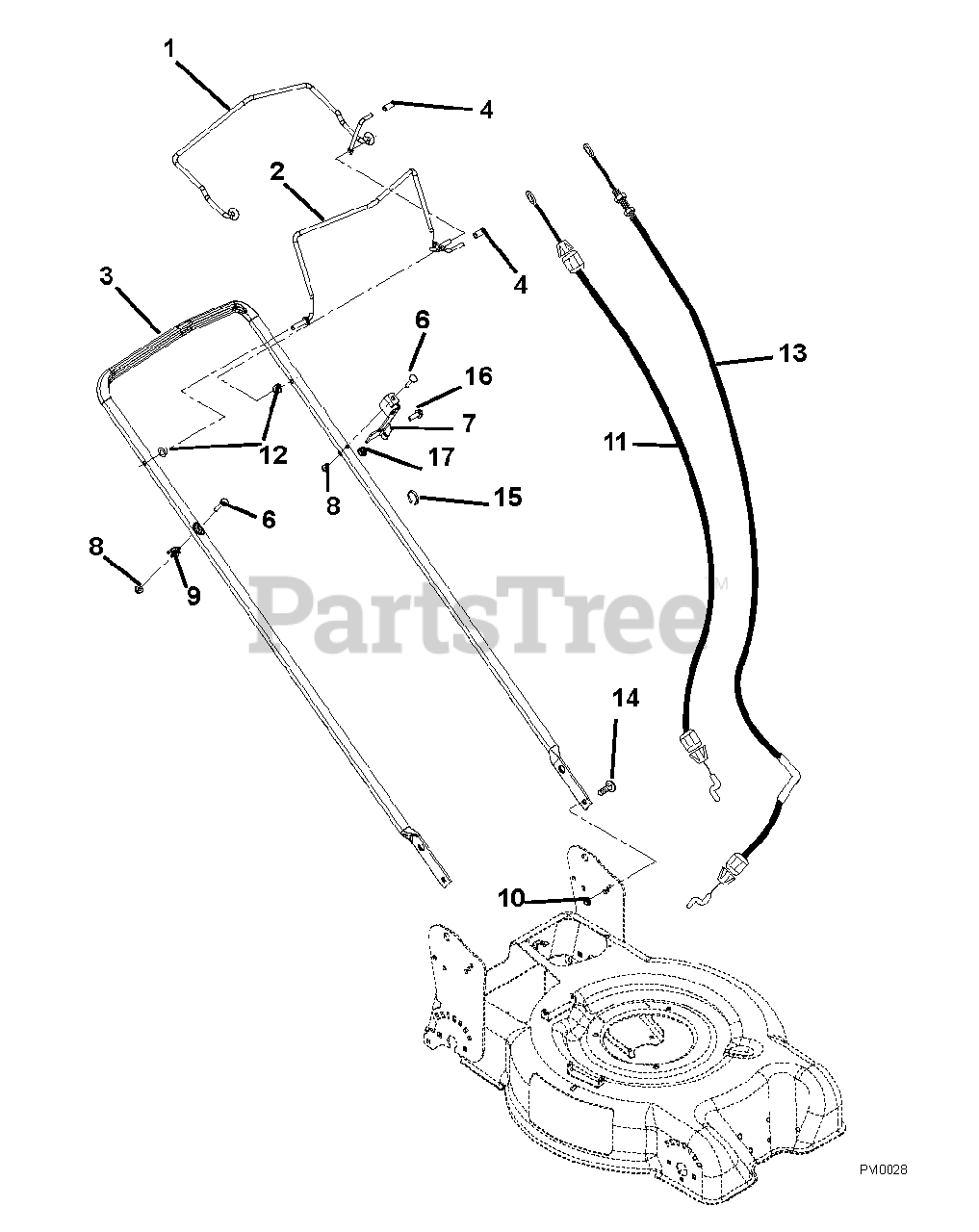

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 01263851

Bail, Drive

$

$

Not available

2

Gravely 01263751

Bail, Operator Presence

$60.99

$

Usually ships in 4-12 days

0

3

Gravely 01261351

Handlebar
(Superseded to 01269051)

$100.99

$

Usually ships in 4-12 days

0

4

Gravely 07517000

Cap, Vinyl .25 I.D.

$3.49

$

In Stock, Qty 10

0

5

Gravely 07517000

Cap, Vinyl .25 I.D.

$3.49

$

In Stock, Qty 10

0

6

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 1 left!

0

7

Gravely 01250651

Anchor, Cable Thumb Adjustment

$13.99

$

Usually ships in 4-12 days

0

8

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 04642100

Guide, Pullcord

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 06530400

Nut, Flange Spinlock .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 01281900

Cable, Operator Presence

$20.99

$

In Stock, only 2 left!

0

12

Gravely 05514500

Bushing, Flange .325 x .444 x.440 x.560

$3.99

$

In Stock, Qty 20+

0

13

Gravely 01266700

Cable, Traction Thumb Adjustment

$77.99

$

Usually ships in 4-12 days

0

14

Gravely 06220800

Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 07539300

Clip, Conduit

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 05947400

Bolt, Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

17

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0
