911207 (PRO 21 XD) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 000101 & Above) Mower Deck and Bagger Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki

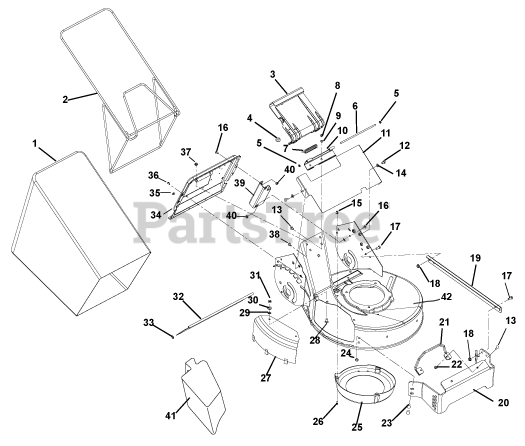

Mower Deck and Bagger Parts Diagram

  • Title

1

Ariens 01180500

BAG, CONSUMER BLACK 15 OZ/YD2

$116.99

$

In Stock, only 1 left!

0

2

Ariens 01241800

FRAME, WBLM BAGGER

$

$

Not available

3

Ariens 01136559

CATCHER PLATE DOOR

$

$

Not available

4

Ariens 07516000

BUTTON BUMPER

$0.99

$

In Stock, Qty 14

0

5

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

6

Ariens 01141000

DOOR PIN

$13.99

$

Usually ships in 4-12 days

0

7

Ariens 08322400

SG-TORS .120X.68X3.09

$6.99

$

Usually ships in 4-12 days

0

8

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

9

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

10

Ariens 01138259

HINGE BASE

$8.99

$

Usually ships in 4-12 days

0

11

Ariens 00615659

COVER
(Superseded to 51111900)

$

$

Not available

12

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

16

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 00663859

ANGLE-SUPPORT

$25.99

$

Usually ships in 4-12 days

0

20

Ariens 00618659

BUMPER,PRO 21"

$

$

Not available

21

Ariens 00663853

ANGLE-SUPPORT

$

$

Not available

22

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 01173700

CENTER BAFFLE

$45.99

$

Usually ships in 4-12 days

0

26

Ariens 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$

$

Not available

27

Ariens 01180351

COVER, SIDE DISCHARGE

$38.99

$

In Stock, only 4 left!

0

28

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

29

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 00677800

TRAILING SHIELD

$35.99

$

Usually ships in 4-12 days

0

33

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

34

Ariens 01159759

CATCHER PLATE

$82.99

$

Usually ships in 4-12 days

0

35

Ariens 07511800

BUMPER

$3.49

$

Usually ships in 4-12 days

0

36

Ariens 07414900

SCR-TAP 10-24X.375 TORX PHD YZ

$3.49

$

Usually ships in 4-12 days

0

37

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 00612459

BKT,BAGGER SUPPORT

$

$

Not available

40

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 71102700

MULCH MASTER MULCHER ACCESSORY

$51.99

$

In Stock, only 1 left!

0

42

Ariens 00654053

CHASSIS,PRO 21 XD

$

$

Not available
