911206 (PRO 21 XD) - Gravely 21" Walk-Behind Mower, 5.5hp Honda (SN: 000101 & Above) Handlebar And Controls Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda

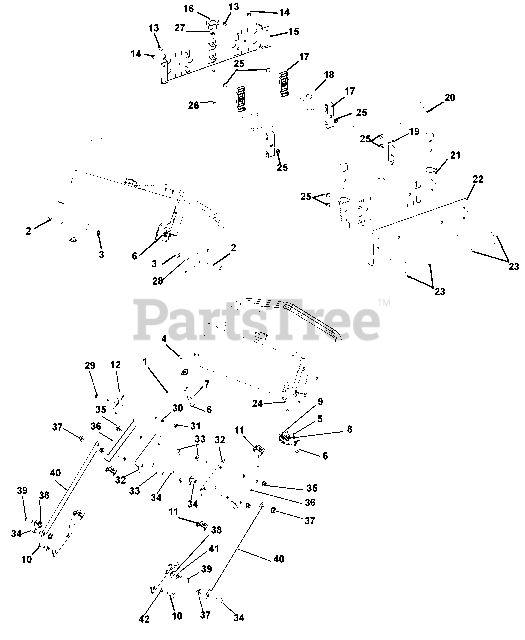

Handlebar And Controls Parts Diagram

  • Title
1

Gravely 00612551

Handlebar

$

$

Not available

2

Gravely 05964700

Bolt, Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

3

Gravely 05513400

Bushing, Flange .265 x .437 x .250 x .750

$2.49

$

In Stock, only 3 left!

0

4

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 1 left!

0

5

Gravely 00589051

Bracket, Cable Anchor

$

$

Not available

6

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 04642100

Guide, Pullcord

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 00616200

Cable-Operator Presence Control (911208, 911216)

Note: (911208, 911216)

$45.99

$

Usually ships in 4-12 days

0

Gravely 00677300

Cable-Operator Presence Control (911206)

Note: (911206)

$

$

Not available

9

Gravely 00674600

Cable-Drive

$68.99

$

Usually ships in 4-12 days

0

10

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07539300

Clip, Conduit (911208, 911216)

Note: (911208, 911216)

$3.49

$

Usually ships in 4-12 days

0

Gravely 07539300

Clip, Conduit (911206)

Note: (911206)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06900101

Throttle Control, Honda

$59.99

$

Usually ships in 4-12 days

0

13

Gravely 06219800

Bolt, Round Head Square Neck .25-20 x 1.00 Grade 5
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

14

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 00581051

Plate, Hinge

$

$

Not available

16

Gravely 07534800

Knob, Nyloc Clamping .312-18

$3.49

$

In Stock, Qty 20+

0

17

Gravely 00587100

Clamp, 4-Bar

$

$

Not available

18

Gravely 00581200

Rod, 4-Bar

$

$

Not available

19

Gravely 00582251

Bracket, Cable Anchor

$

$

Not available

20

Gravely 00584651

Bail, .750 Tube

$

$

Not available

21

Gravely 00581351

Cover, Operator Presence Control
(Superseded to 51112100)

$

$

Not available

22

Gravely 00598651

Cover, Sheetmetal

$

$

Not available

23

Gravely 06219800

Bolt, Round Head Square Neck .25-20 x 1.00 Grade 5
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

24

Gravely 05947400

Bolt, Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

25

Gravely 06530100

Nut, Locking-Top-Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06226200

Bolt, Round Head Square Neck .31-18 x 5 Grade 5

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06439100

Washer, Flat-Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

29

Gravely 06220000

Bolt, Round Head Square Neck .25-20 x 1.75 Grade 5
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 06442300

Washer, Flat-Steel .25 x .562 x .049

$1.99

$

Usually ships in 4-12 days

0

31

Gravely 06529700

Nut, Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 00612651

Plate, Handlebar

$

$

Not available

33

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

34

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 02722751

Service Bar Brace

$14.99

$

Usually ships in 4-12 days

0

37

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 05515800

Bushing, Flange .406 x .88 x .270 x .140

$9.49

$

In Stock, only 4 left!

0

39

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 00612751

Strap, Handlebar

$19.99

$

Usually ships in 4-12 days

0

41

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
