911196 (LM 21 S) - Gravely 21" Walk-Behind Mower, 6hp Kawasaki (SN: 000101 - 021999) Handlebar And Controls Parts Diagram

21" Walk-Behind Mower, 6hp Kawasaki

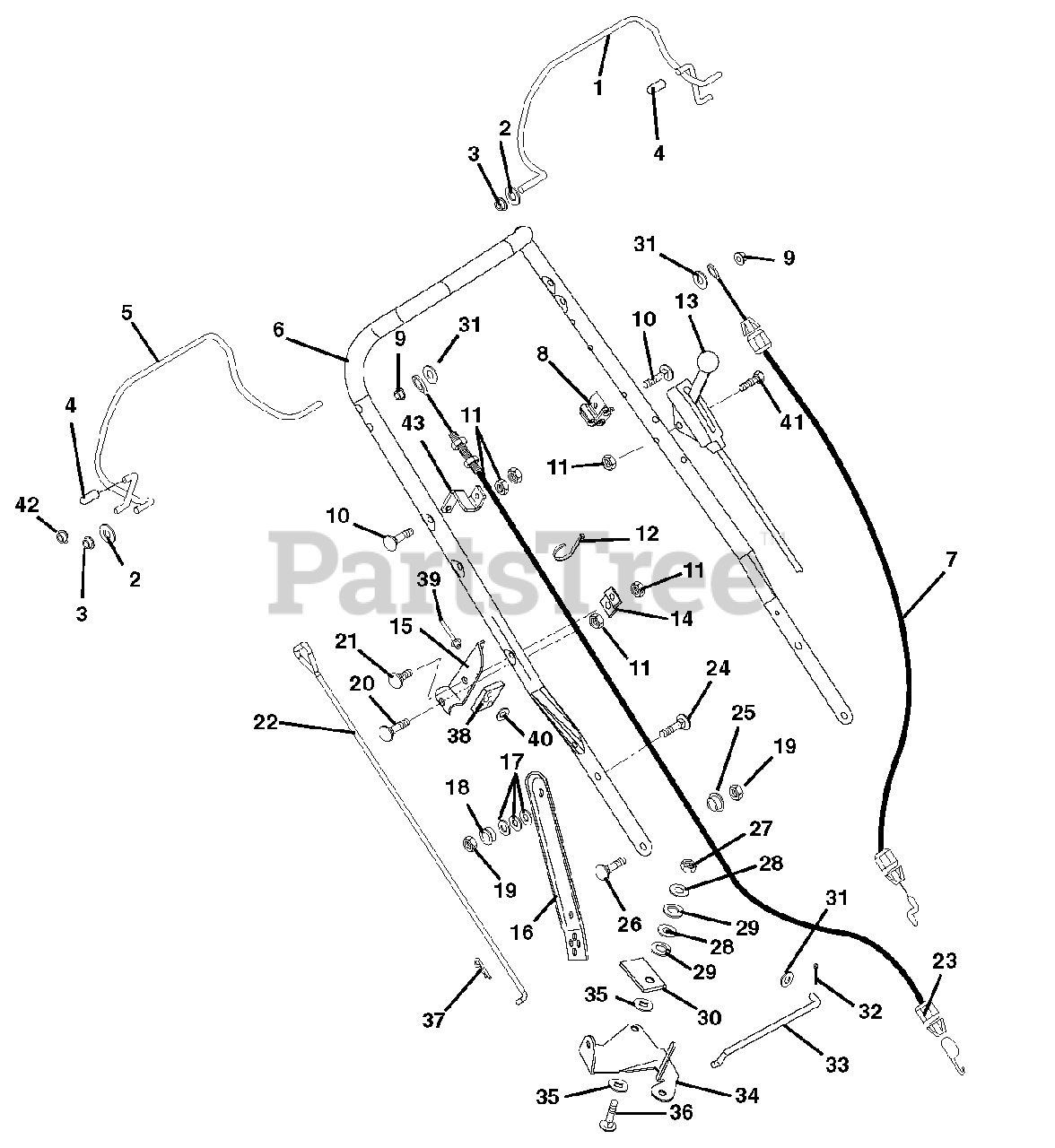

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 01245151

Bail, Engine

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 06437200

Washer, Flat Steel .32 x .44 x .44 x .56 (911196, 197)
(Superseded to 06401017)

Note: (911196, 197)

$0.99

$

In Stock, Qty 20+

0

Gravely 06437200

Washer, Flat Steel .32 x .44 x .44 x .56 (911171)
(Superseded to 06401017)

Note: (911171)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05514500

Bushing, Flange .325 x .688 x .560 (911196, 197)

Note: (911196, 197)

$3.99

$

In Stock, Qty 20+

0

Gravely 05514500

Bushing, Flange .325 x .688 x .560 (911171)

Note: (911171)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 07517000

Cap, Vinyl .25 I.D. (911196, 197)

Note: (911196, 197)

$3.49

$

In Stock, Qty 10

0

Gravely 07517000

Cap, Vinyl .25 I.D. (911171)

Note: (911171)

$3.49

$

In Stock, Qty 10

0

5

Gravely 01245251

Traction Bail (911196, 197)

Note: (911196, 197)

$75.99

$

In Stock, only 1 left!

0

6

Gravely 01330051

Handlebar

$232.99

$

Usually ships in 4-12 days

0

7

Gravely 01282000

Cable, OPC (911171)

Note: (911171)

$20.99

$

In Stock, only 1 left!

0

Gravely 06900014

Cable, Engine Kawasaki (911196)

Note: (911196)

$23.99

$

In Stock, only 1 left!

0

Gravely 01292500

Cable, Engine Kawasaki (911197)

Note: (911197)

$42.99

$

In Stock, only 4 left!

0

8

Gravely 01245600

Cable, Anchor
(Superseded to 01245651)

$

$

Not available

9

Gravely 02215300

Push Nut, .25

$1.99

$

In Stock, Qty 16

0

10

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25 (911196, 197)

Note: (911196, 197)

$2.49

$

In Stock, only 4 left!

0

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25 (911171)

Note: (911171)

$2.49

$

In Stock, only 4 left!

0

11

Gravely 06529700

Nut, Locking Center .25-20 (911196, 197)
(Superseded to 06500812)

Note: (911196, 197)

$0.99

$

In Stock, Qty 20+

0

Gravely 06529700

Nut, Locking Center .25-20 (911171)
(Superseded to 06500812)

Note: (911171)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 07517300

Cable Tie

$

$

Not available

13

Gravely 06948100

Cable, Lockout Control (911197)

Note: (911197)

$68.99

$

Usually ships in 4-12 days

0

14

Gravely 01141851

Brace, Speed Control (911196, 197)

Note: (911196, 197)

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 01137451

Bracket, Speed Control (911196, 197)
(Superseded to 51119700)

Note: (911196, 197)

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 01150051

Link, Handlebar Adjuster Left Hand

$38.99

$

Usually ships in 4-12 days

0

Gravely 01150151

Link, Handlebar Adjuster Right Hand

$27.99

$

Usually ships in 4-12 days

0

17

Gravely 01178700

Washer, Bellville Spring

$2.49

$

In Stock, Qty 6

0

18

Gravely 05514900

Bushing, Flange .325 x .50 x .513 x .875

$3.99

$

In Stock, Qty 12

0

19

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06222300

Bolt, Round Head Square Neck .25-20 x 1.38
(Superseded to 06200331)

$1.49

$

In Stock, Qty 18

0

21

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 03256800

Rod, Speed Control (911196, 197)

Note: (911196, 197)

$27.99

$

Usually ships in 4-12 days

0

23

Gravely 06900013

Traction Cable (911196, 197)

Note: (911196, 197)

$59.99

$

In Stock, only 2 left!

0

24

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 01305900

Shoulder Spacer

$2.49

$

In Stock, only 1 left!

0

26

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

27

Gravely 06529600

Nut, Locking Center .38-16 (911196, 197)
(Superseded to 06500825)

Note: (911196, 197)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065 (911196, 197)
(Superseded to 06401013)

Note: (911196, 197)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06306500

Washer, Lock .375 x .115 Heavy (911196, 197)
(Superseded to 06300120)

Note: (911196, 197)

$3.49

$

In Stock, only 3 left!

0

30

Gravely 01154800

Pressure Flange (911196, 197)

Note: (911196, 197)

$7.99

$

Usually ships in 4-12 days

0

31

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065 (911196, 197)
(Superseded to 06401001)

Note: (911196, 197)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06712400

Pin, Cotter .06 x .50 (911196, 197)

Note: (911196, 197)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 01126100

Shift Link (911196, 197)

Note: (911196, 197)

$21.99

$

Usually ships in 4-12 days

0

34

Gravely 01123900

Bell Crank, Speed Control (911196, 197)
(Superseded to 04756800)

Note: (911196, 197)

$

$

Not available

35

Gravely 01123800

Friction Washer (911196, 197)

Note: (911196, 197)

$3.99

$

In Stock, Qty 20+

0

36

Gravely 06222200

Bolt, Round Head Square Neck .38-16 x 1.25 (911196, 197)
(Superseded to 06200236)

Note: (911196, 197)

$2.49

$

In Stock, Qty 20+

0

37

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18 (911196, 197)
(Superseded to 06700222)

Note: (911196, 197)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 01173800

Support Pad
(Superseded to 04760400)

$

$

Not available

39

Gravely 06815700

Rivet .187 x .575

$1.49

$

In Stock, only 2 left!

0

40

Gravely 06442700

Washer, Flat Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

41

Gravely 06209300

Bolt, Round Head Square Neck .25-20 x 2.00 Grade 5 (911196, 197)

Note: (911196, 197)

$2.99

$

Usually ships in 4-12 days

0

42

Gravely 07008200

Nut, Push .312

$2.49

$

In Stock, Qty 20+

0

43

Gravely 01245451

Anchor, Cable (911196, 197)

Note: (911196, 197)

$28.99

$

Usually ships in 4-12 days

0
