911194 (LM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 023525 - 029999) Swivel Wheels And Brackets Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki

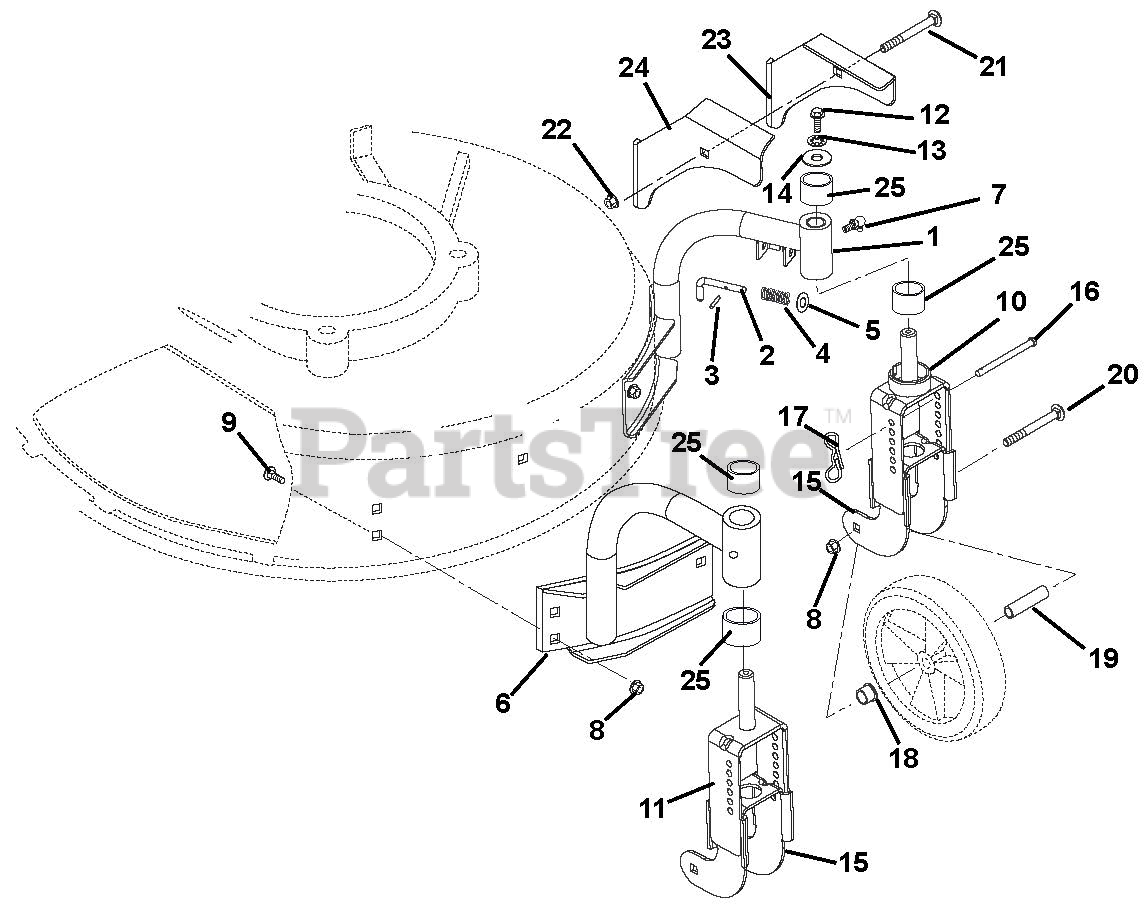

Swivel Wheels And Brackets Parts Diagram

  • Title
1

Ariens 01197059

WELDMENT, LH MOUNT

$137.99

$

Usually ships in 4-12 days

0

2

Ariens 01196900

PIN, LOCKOUT

$18.99

$

In Stock, only 1 left!

0

3

Ariens 05801000

PIN-ROLL .093X.50

$0.99

$

In Stock, Qty 10

0

4

Ariens 08337300

SPRG, COMP--SWVL LOCKOUT

$3.49

$

In Stock, only 2 left!

0

5

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 01197659

WELDMENT, RH MOUNT

$129.99

$

Usually ships in 4-12 days

0

7

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

10

Ariens 01196759

YOKE, OUTER LH

$

$

Not available

11

Ariens 01197459

YOKE, RH OUTER

$50.99

$

In Stock, only 2 left!

0

12

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

14

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 01196600

YOKE-INNER

$22.99

$

Usually ships in 4-12 days

0

16

Ariens 06817100

PIN, HEIGHT ADJUSTMENT

$3.99

$

In Stock, Qty 13

0

17

Ariens 06700001

PIN, BOW TIE LOCKING COTTER

$2.99

$

In Stock, Qty 17

0

18

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

19

Ariens 05533500

SPCR, WHEEL .385X.500X2.00

$9.49

$

Usually ships in 4-12 days

0

20

Ariens 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$2.99

$

In Stock, only 4 left!

0

21

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 01197359

BRACKET, HOOD CABLE--LH

$

$

Not available

24

Ariens 01198159

BRACKET, HOOD CABLE WELDMENT

$

$

Not available

25

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, only 1 left!

0
