911193 (LM 21 S) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 030000 & Above) Friction Wheel And Drive Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki

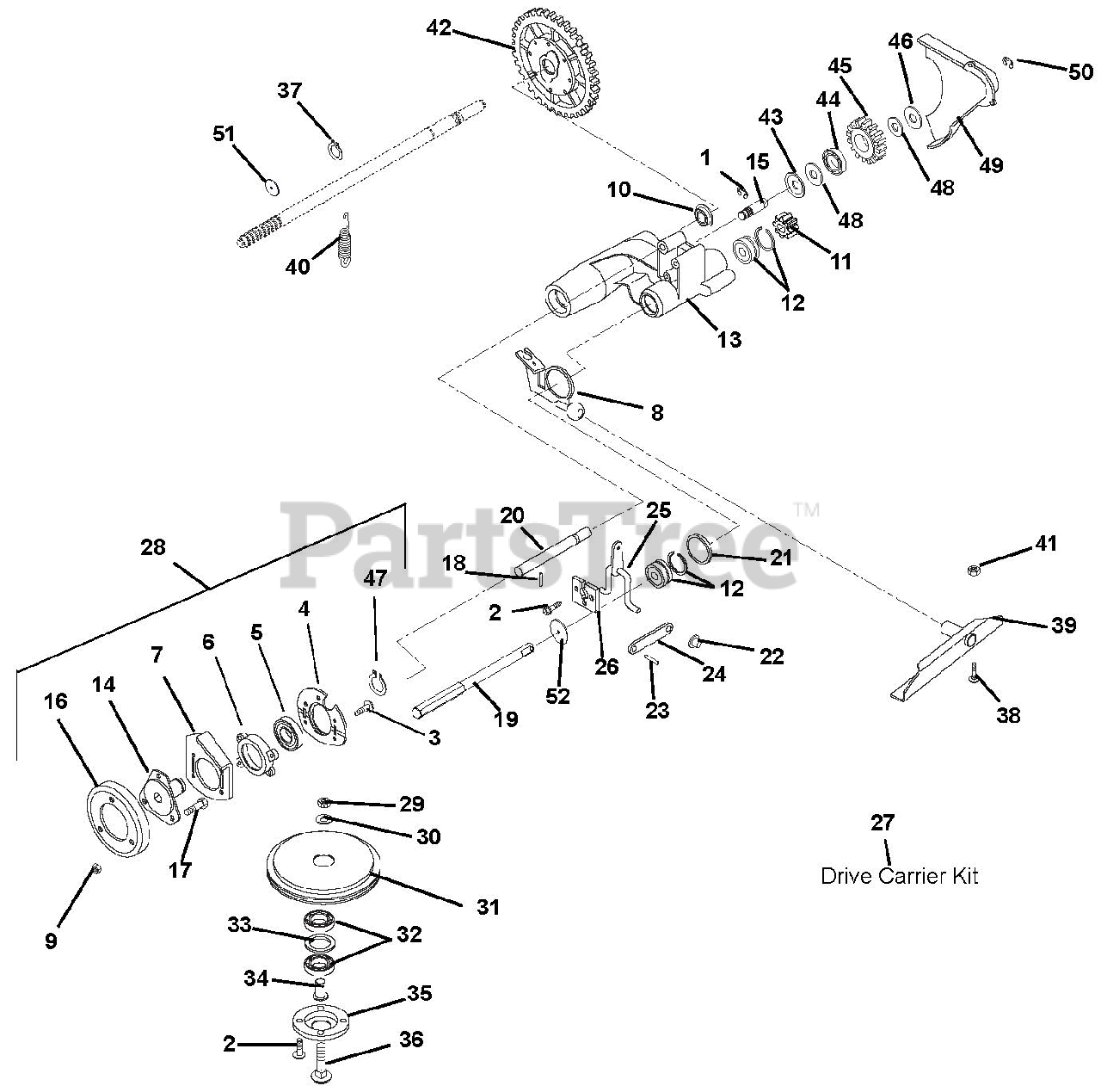

Friction Wheel And Drive Parts Diagram

  • Title

1

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 13

0

2

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

3

Ariens 07415100

SCR-TAP 5HX-0.8X16MM H-FL-YWZC

$3.49

$

Usually ships in 4-12 days

0

4

Ariens 01119200

BEARING RETAINER

$7.49

$

Usually ships in 4-12 days

0

5

Ariens 05416000

BRG-BALL 1.0X2.0X.56 (1641)

$14.99

$

In Stock, only 3 left!

0

6

Ariens 01131800

BEARING RETAINER

$20.99

$

Usually ships in 4-12 days

0

7

Ariens 00174500

PLATE, BEARING

$13.99

$

Usually ships in 4-12 days

0

8

Ariens 01245700

ACTUATOR, WBLM DRIVE

$39.99

$

Usually ships in 4-12 days

0

9

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05417500

BRG-BALL .625X1.378X.44

$17.99

$

Usually ships in 4-12 days

0

11

Ariens 02201101

PINION, D-SHAFT

$19.99

$

In Stock, only 1 left!

0

12*

Ariens 05480000

BRG-BALL .50X1.38X.438 SEALED

$13.99

$

In Stock, Qty 20+

0

13

Ariens 01140600

DRIVE MOUNT

$111.99

$

In Stock, only 1 left!

0

14

Ariens 01133500

FRICTION WHEEL HUB

$59.99

$

Usually ships in 4-12 days

0

15

Ariens 01139700

IDLER SHAFT

$30.99

$

In Stock, only 3 left!

0

16

Ariens 03248300

DISC, FRICTION - 730 MAT'L

$39.99

$

In Stock, Qty 20+

0

17

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05800500

PIN-ROLL .188X.88

$1.99

$

In Stock, only 3 left!

0

19

Ariens 01281700

SHAFT, FRICTION DISK

$76.99

$

In Stock, only 1 left!

0

20

Ariens 01125100

ROD - GUIDE

$73.99

$

Usually ships in 4-12 days

0

21

Ariens 06421600

WSHR-FL-STL 1.390X2.00X.020 PL

$2.99

$

In Stock, only 1 left!

0

22

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

23

Ariens 05803500

PIN-ROLL .125X.50

$0.99

$

In Stock, Qty 10

0

24

Ariens 01124200

SHIFT LINK

$7.99

$

In Stock, Qty 5

0

25

Ariens 01123600

SHIFT ARM WELDMENT

$23.99

$

Usually ships in 4-12 days

0

26

Ariens 01125000

RETAINER PLATE

$

$

Not available

27

Ariens 51108900

KIT, LM DRIVE CARRIER

$439.99

$

Usually ships in 4-12 days

0

28

Ariens 51109700

KIT, COM. DRIVE CONVERSION

$107.99

$

In Stock, only 1 left!

0

29

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

31

Ariens 01127300

FRICTION SHEAVE

$

$

Not available

32*

Ariens 05435100

BRG-BALL .625X1.375X.43

$14.99

$

In Stock, Qty 20+

0

33

Ariens 06420200

WSHR-FL-STL 1.062X1.344X.032PL

$4.49

$

In Stock, Qty 7

0

34

Ariens 01127400

SPINDLE - BEARING

$19.99

$

In Stock, Qty 7

0

35

Ariens 01127500

RETAINER - BEARING

$19.99

$

Usually ships in 4-12 days

0

36

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

37

Ariens 05711900

RG-RTNG-EXT .579X.035

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 01161959

PIVOT CHANNEL WELDMENT
(Superseded to 01161951)

$49.99

$

Usually ships in 4-12 days

0

40

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$5.99

$

In Stock, only 1 left!

0

41

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 61125600

DIFFERENTIAL ASSEMBLY

$

$

Not available

43

Ariens 01135100

RETAINER

$12.99

$

In Stock, only 1 left!

0

44*

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 15

0

45

Ariens 01131700

IDLER GEAR

$51.99

$

Usually ships in 4-12 days

0

46

Ariens 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 1 left!

0

48

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

49

Ariens 01121051

COVER, GEAR

$38.99

$

Usually ships in 4-12 days

0

50

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 13

0

51

Ariens 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$2.49

$

In Stock, only 3 left!

0

52

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0
