911189 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower, BBC (SN: 000101 - 000351) Mower Deck And Bagger Parts Diagram

21" Self-Propelled Walk-Behind Mower, BBC

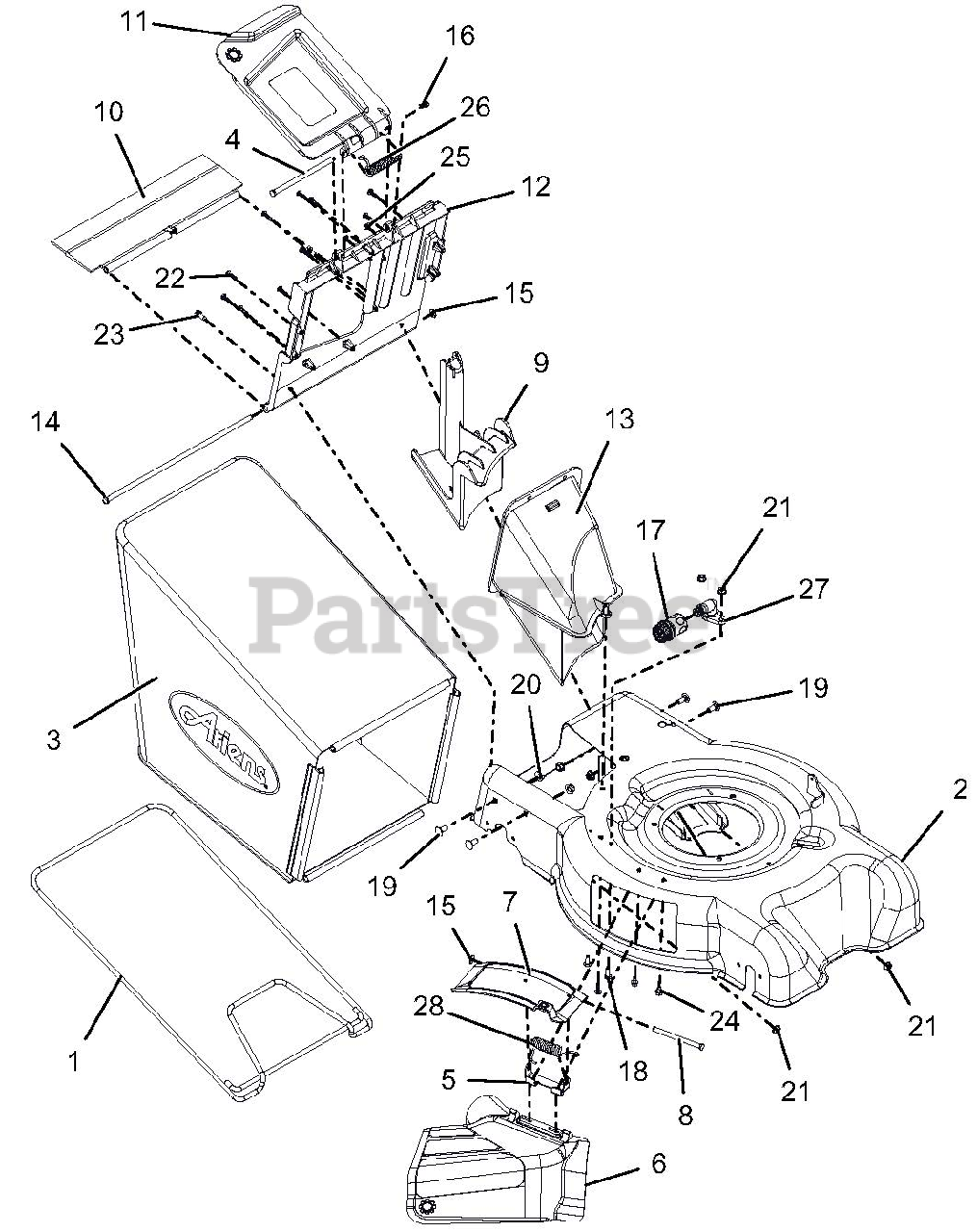

Mower Deck And Bagger Parts Diagram

  • Title
1

Ariens 04520659

FRAME, BAG
(Superseded to 04718959)

$139.99

$

Usually ships in 4-12 days

0

2

Ariens 04830459

WLDMT, ARIENS WP DECK

$

$

Not available

3

Ariens 04544100

BAGGER, ARIENS LM
(Superseded to 05088500)

$28.99

$

In Stock, only 1 left!

0

4

Ariens 00475800

PIN, 5/16 X 5.80"

$9.49

$

Usually ships in 4-12 days

0

5

Ariens 04514651

BRKT, HINGE LM

$40.99

$

Usually ships in 4-12 days

0

6

Ariens 04514800

CHUTE, SIDE DISCHARGE - LM

$22.99

$

In Stock, only 1 left!

0

7

Ariens 04514900

COVER, SIDE DISCHARGE - LM
(Superseded to 51122400)

$47.99

$

In Stock, only 2 left!

0

8

Ariens 04534000

PIN, HINGE

$8.99

$

In Stock, only 1 left!

0

9

Ariens 04534300

PLUG, MULCH

$17.99

$

In Stock, only 1 left!

0

10

Ariens 04534400

GUARD, REAR
(Superseded to 51122800)

$82.99

$

Usually ships in 4-12 days

0

11

Ariens 51116800

REAR DOOR W/ SAFETY DECAL

$

$

Not available

12

Ariens 04534700

HANGER, BAG
(Superseded to 51122800)

$82.99

$

Usually ships in 4-12 days

0

13

Ariens 04547900

CHUTE, REAR DISCHARGE LM

$35.99

$

Usually ships in 4-12 days

0

14

Ariens 04556200

ROD, REAR GUARD

$20.99

$

Usually ships in 4-12 days

0

15

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 04396500

COUPLING, QUICK DISCONNECT

$21.99

$

In Stock, only 2 left!

0

18

Ariens 05900338

BLT-HEX .25-20X.63 GR5 YWZC
(Superseded to 05901722)

$

$

Not available

19

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07400101

SCR-TAP 12-14X.75PLSTITE @BLZC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07400103

@SCR-TAP .25-20X.62 HWH TR YWZ
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

24

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07500301

PLUG,5/16 HOLE,.125 MATL PLSTC

$

$

Not available

26

Ariens 08322400

SG-TORS .120X.68X3.09

$6.99

$

Usually ships in 4-12 days

0

27

Ariens 04428900

ASSY, WASHOUT PORT W/ O-RING

$9.99

$

Usually ships in 4-12 days

0

28

Ariens 08300614

SPRING, SIDE DISCHARGE DOOR

$9.49

$

In Stock, only 1 left!

0
