911179 (LMSPE) - Ariens Razor 21" Self-Propelled Walk-Behind Mower (SN: 021140 - 021154) Engine And Blade Cont'd Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower

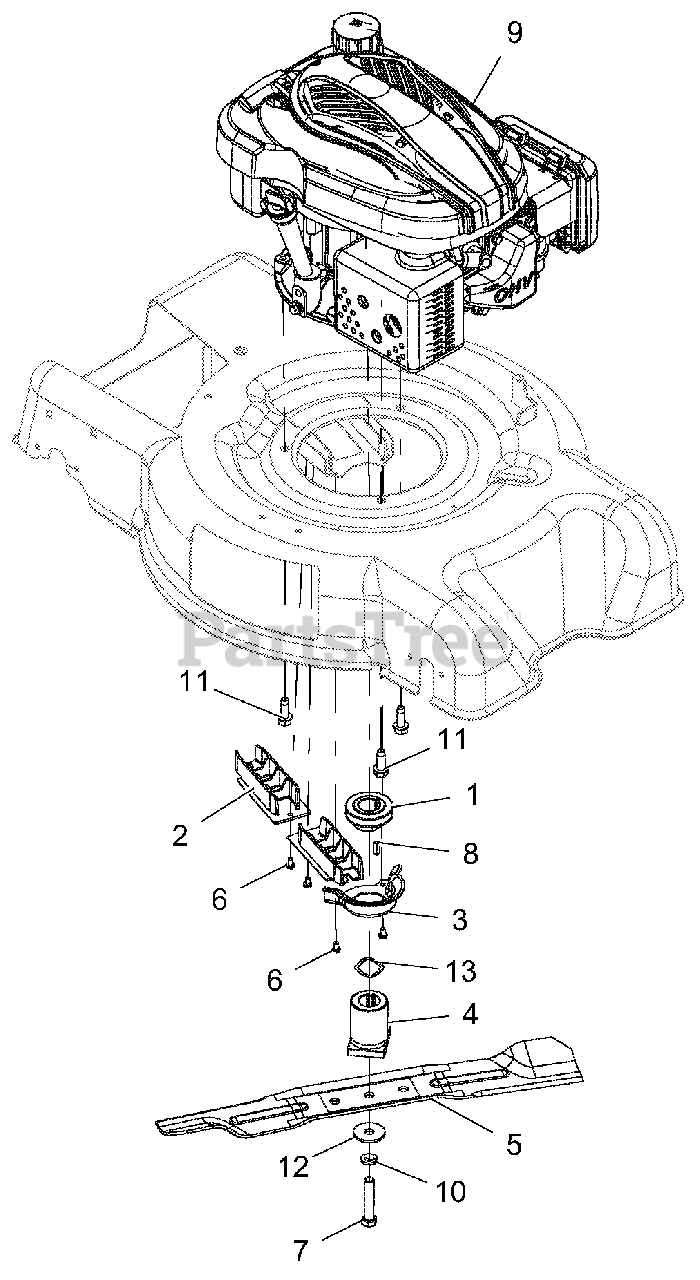

Engine And Blade Cont'd Parts Diagram

  • Title

1

Ariens 04527000

PULLEY, GROUND DRIVE, LM

$28.99

$

Usually ships in 4-12 days

0

2

Ariens 04733800

GUIDE, BELT INNER

$9.49

$

In Stock, only 1 left!

0

3

Ariens 04533851

GUIDE, BELT CRANK

$38.99

$

Usually ships in 4-12 days

0

4

Ariens 04539400

ADAPTER, BLADE

$16.99

$

Usually ships in 4-12 days

0

5

Ariens 04544400

BLADE, MOWER 21" HIGH LIFT

$25.99

$

In Stock, Qty 20+

0

6

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.49

$

Usually ships in 4-12 days

0

7

Ariens 05901515

@BLT-HEX .4375-20X2.25 GR8 YWZ

$4.49

$

In Stock, only 4 left!

0

8

Ariens 06600219

KEY-SQ .188X.188X.625

$1.99

$

In Stock, only 2 left!

0

9

Ariens 08200830

ENGINE, LONCIN 159CC VERT. ES

$

$

Not available

10

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

11

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

12

Ariens 06400925

WSHR-FL-STL .4375X1.50X.125 YZ

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 09250700

WASHER - WAVE 1.09X1.37X.016

$3.49

$

In Stock, only 1 left!

0
