911179 (LMSPE) - Ariens Razor 21" Self-Propelled Walk-Behind Mower (SN: 000101 - 020625) Electrical Components Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower

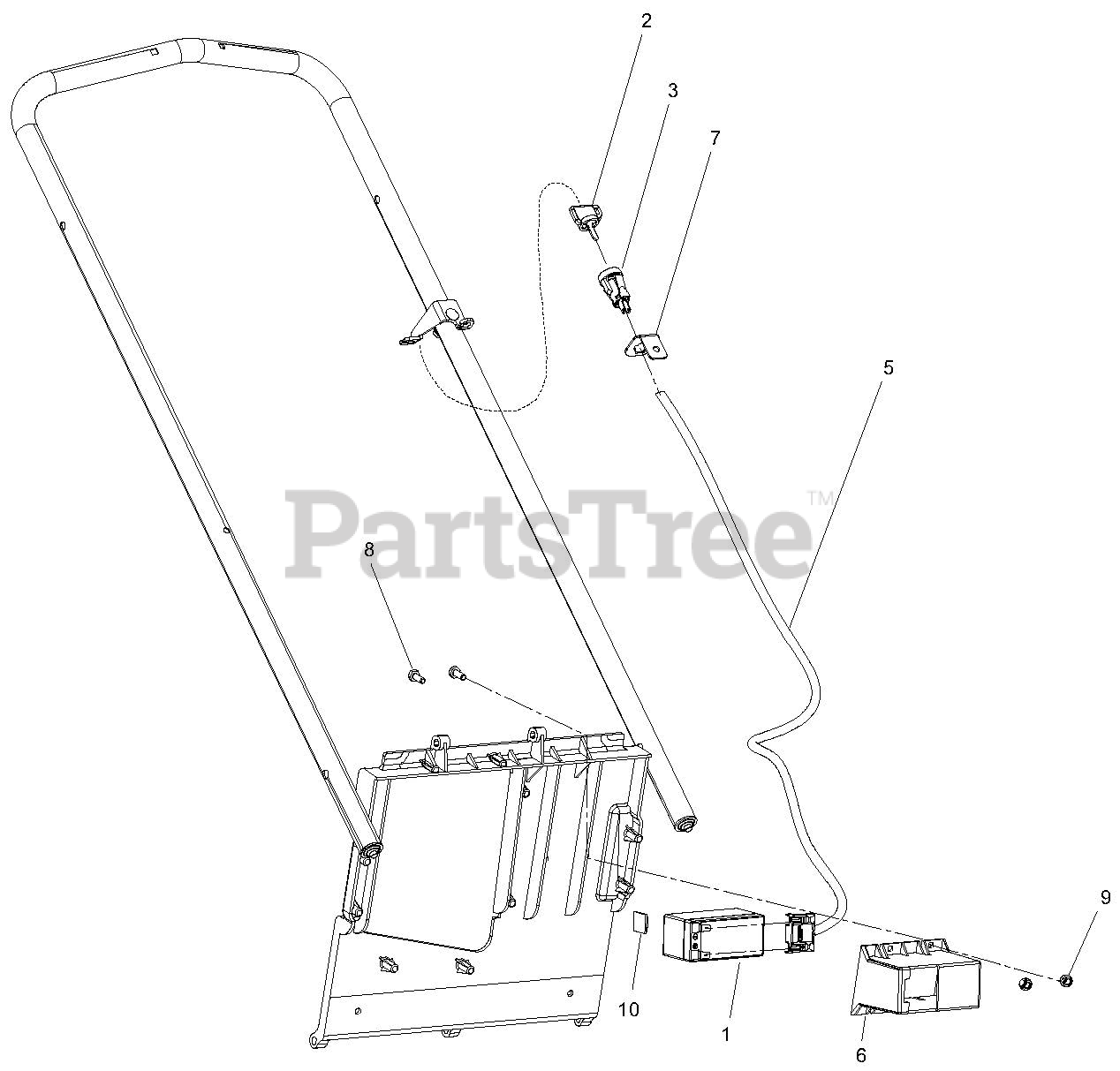

Electrical Components Parts Diagram

  • Title
1

Ariens 04536800

BATTERY,LM(SEE BULLETIN B2117)

$

$

Not available

2

Ariens 04556300

KEYS, IGNITION

$5.99

$

In Stock, only 3 left!

0

3

Ariens 04536900

SWITCH, KEY

$

$

Not available

5

Ariens 04574200

HARNESS, ELEC START - LONCIN

$34.99

$

Usually ships in 4-12 days

0

6

Ariens 04537200

COVER, BATTERY

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 04573351

BRKT, KEY SWITCH

$

$

Not available

8

Ariens 05900338

BLT-HEX .25-20X.63 GR5 YWZC
(Superseded to 05901722)

$

$

Not available

9

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 04537000

CHARGER, BATTERY

Note: Not Shown

$28.99

$

Usually ships in 4-12 days

0
