911178 (XD3 LM SPE) - Gravely 21" Walk-Behind Mower, Electric Start (SN: 021580 - 025999) Engine And Blade Parts Diagram

21" Walk-Behind Mower, Electric Start

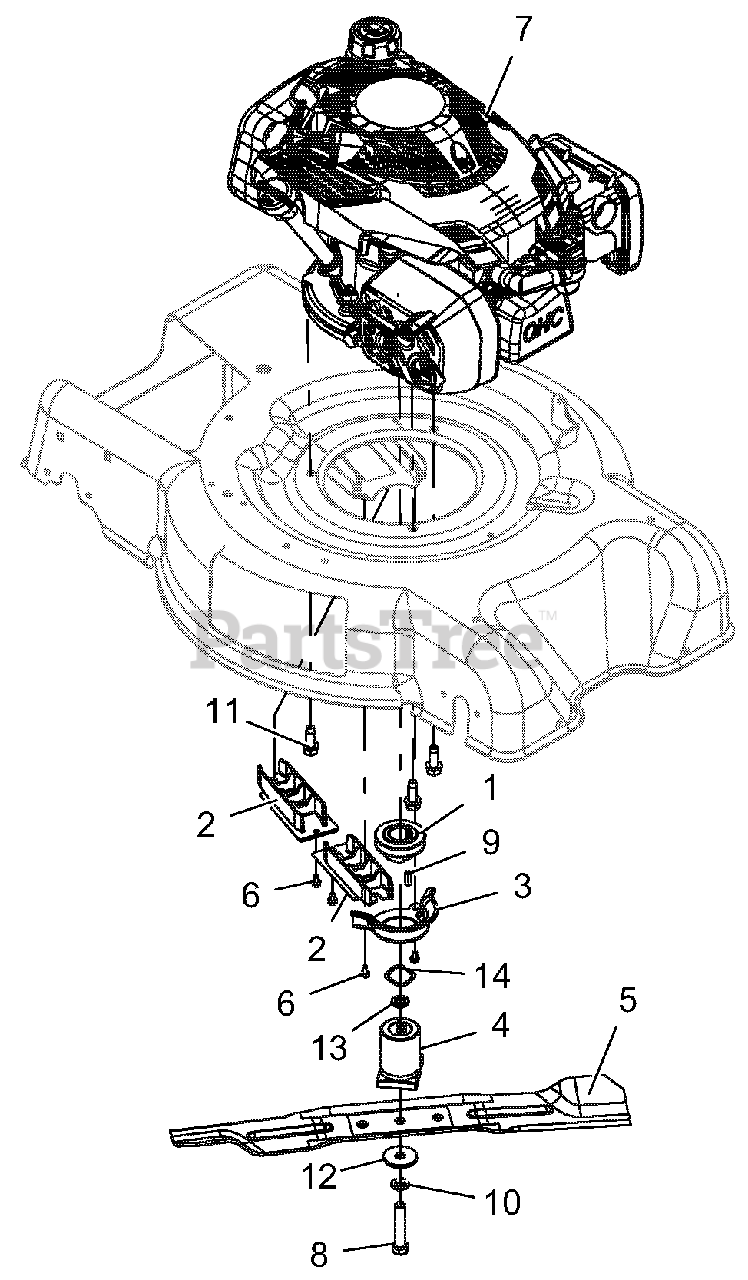

Engine And Blade Parts Diagram

  • Title

1

Gravely 04527000

PULLEY, GROUND DRIVE, LM

$28.99

$

Usually ships in 4-12 days

0

2

Gravely 04733800

GUIDE, BELT INNER

$9.49

$

In Stock, only 1 left!

0

3

Gravely 04533851

GUIDE, BELT CRANKSHAFT

$38.99

$

Usually ships in 4-12 days

0

4

Gravely 04539400

ADAPTOR, BLADE

$16.99

$

Usually ships in 4-12 days

0

5

Gravely 04544400

BLADE, MOWER 21" HIGH-LIFT

$25.99

$

In Stock, Qty 20+

0

6

Gravely 07400033

SCR, TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 08200827

ENGINE, SUBARU ES

$

$

Not available

8

Gravely 05901515

BLT-HEX .44-20X2.25 GR8 YWZC

$4.49

$

In Stock, only 4 left!

0

9

Gravely 06600219

KEY-SQ .188X.188X.625

$1.99

$

In Stock, only 2 left!

0

10

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

11

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06400925

WSHR-FL-STL .4375X1.50X.125 YWZC

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06400926

WSHR-FL-STL .459X.750X.105 YWZC

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 09250700

WASHER, WAVE

$3.49

$

In Stock, only 1 left!

0
