911177 (LMSP) - Ariens Razor 21" Self-Propelled Walk-Behind Mower, BBC (SN: 035000 - 036999) Engine And Blade Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, BBC

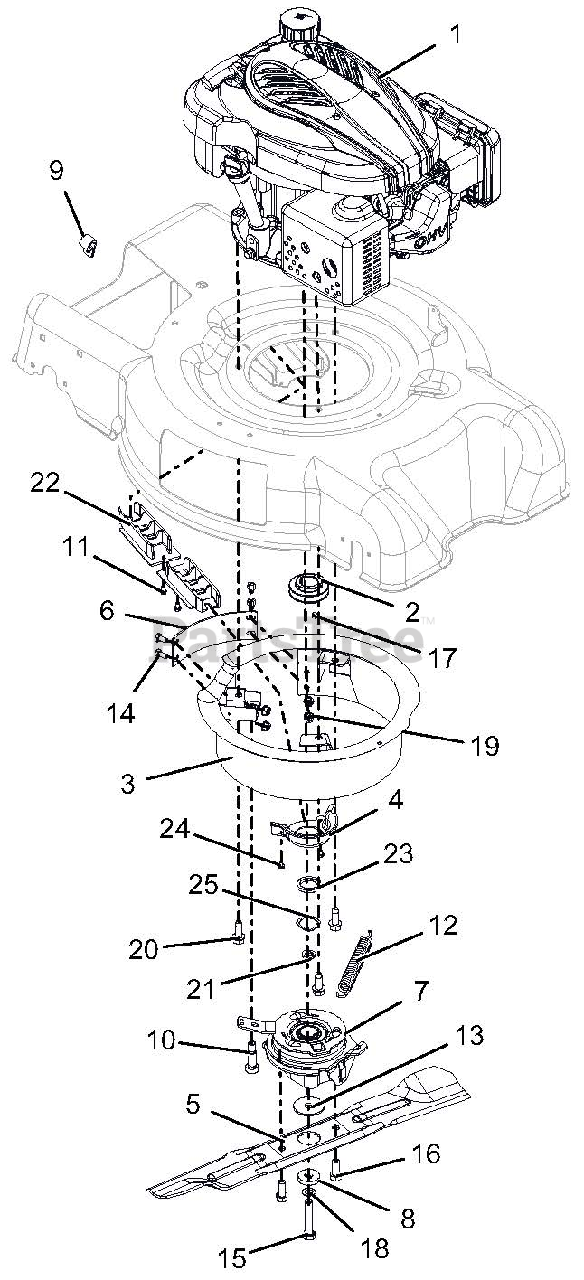

Engine And Blade Parts Diagram

  • Title
1

Ariens 08200831

ENGINE, LONCIN 159CC VERT. BBC

$

$

Not available

2

Ariens 07343700

PULLEY, GROUND DRIVE, LM

$25.99

$

Usually ships in 4-12 days

0

3

Ariens 04716451

WLDMT, ENCLOSURE - BBC

$

$

Not available

4

Ariens 04533851

GUIDE, BELT CRANK

$38.99

$

Usually ships in 4-12 days

0

5

Ariens 04692700

BLADE, MOWER 21" HIGH LIFT-BBC

$26.99

$

In Stock, only 1 left!

0

6

Ariens 04720451

BAFFLE, BBC

$58.99

$

Usually ships in 4-12 days

0

7

Ariens 04728100

CLUTCH, RAZOR/XD3, 25MM

$258.99

$

In Stock, only 1 left!

0

8

Ariens 06400934

WSHR-FL-STL .44X1.25X.25 YWZC

$8.49

$

Usually ships in 4-12 days

0

9

Ariens 06900512

CLAMP, LM CABLE

$

$

Not available

10

Ariens 07001724

BLT,SHLDR 12MM X 25 W/ M10 THD

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.49

$

In Stock, only 2 left!

0

12

Ariens 08300608

SPRING, EXTENSION BBC

$20.99

$

Usually ships in 4-12 days

0

13

Ariens 06400933

WSHR-FL-STL .469X1.75X.10 YWZC

$

$

Not available

14

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 05901515

@BLT-HEX .4375-20X2.25 GR8 YWZ

$4.49

$

In Stock, only 4 left!

0

16

Ariens 05943000

BLT-HEX M10 X 1.5X25 YWZC

$2.99

$

Usually ships in 4-12 days

0

17

Ariens 06600215

KEY-SQ .188X.188X.375

$2.49

$

In Stock, only 1 left!

0

18

Ariens 06400935

WSHR-FL-STL .45X.75X.033

$

$

Not available

19

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

21

Ariens 06400926

WSHR-FL-STL .459X.750X.105 YZC

$4.99

$

Usually ships in 4-12 days

0

22

Ariens 04733800

GUIDE, BELT INNER

$9.49

$

In Stock, only 1 left!

0

23

Ariens 05501224

SPCR, 1.00 X 1.375 X .179

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 07415500

SCR-TAP 10-24X.25 CRSLPH TR YZ

$

$

Not available

25

Ariens 09250700

WASHER - WAVE 1.09X1.37X.016

$3.49

$

In Stock, only 1 left!

0
