911176 (XD3 LM SP) - Gravely 21" Walk-Behind Mower, Subaru, BBC (SN: 026070 - 026207) Handlebar And Controls Parts Diagram

21" Walk-Behind Mower, Subaru, BBC

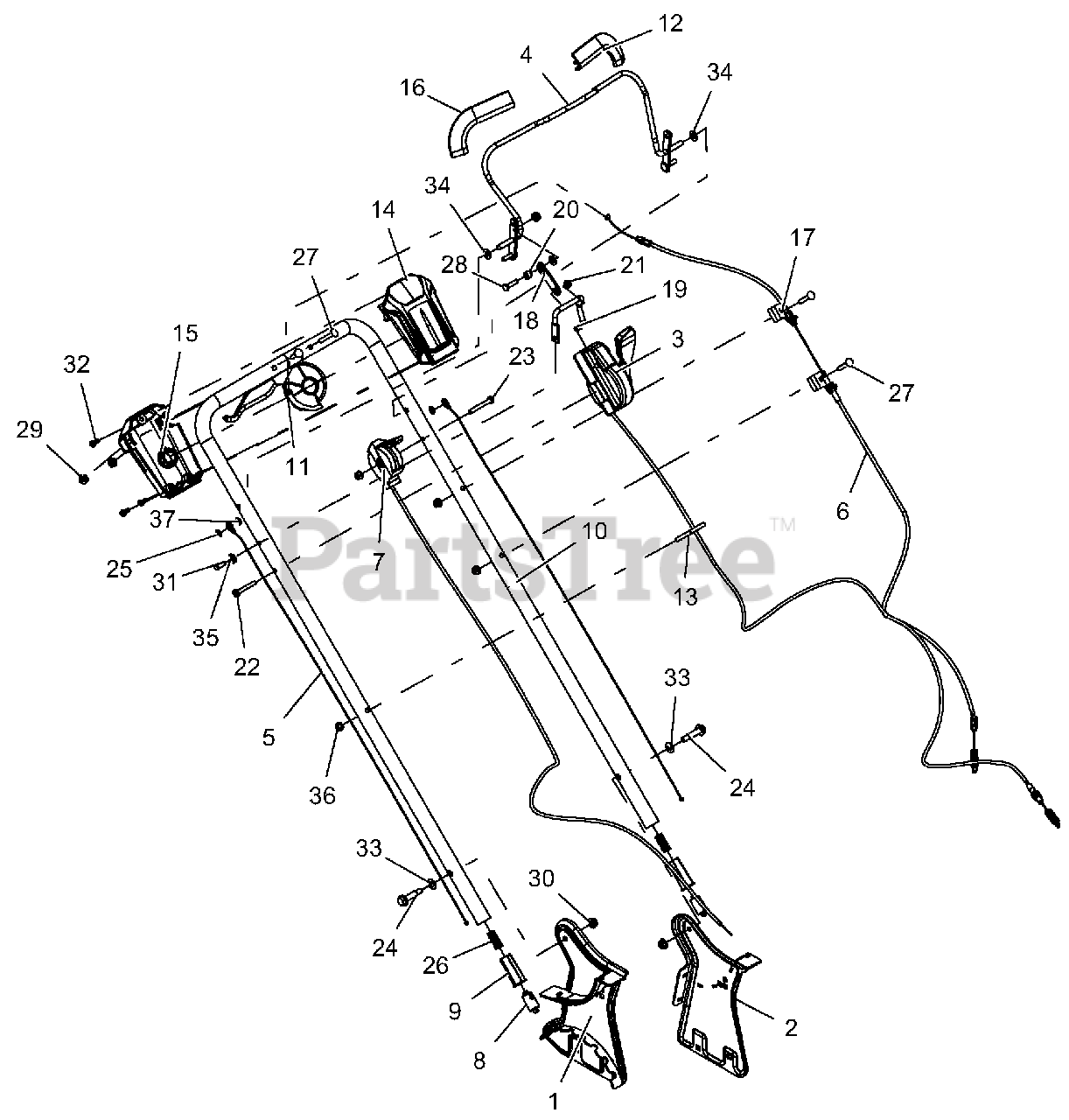

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 04516351

WLDMT, RH SIDE PLATE

$190.99

$

Usually ships in 4-12 days

0

2

Gravely 04516451

WLDMT, LH SIDE PLATE

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 04668900

ASM, BBC CONTROL

$63.99

$

In Stock, only 1 left!

0

4

Gravely 04716153

WLDMT, OPC BAIL, BBC

$

$

Not available

5

Gravely 06900528

CABLE, LM HANDLE ADJUST

$6.99

$

In Stock, only 4 left!

0

6

Gravely 06900535

CABLE, DRIVE CONTROL

$36.99

$

In Stock, only 2 left!

0

7

Gravely 06900538

CONTROL, THROTTLE

$34.99

$

In Stock, only 1 left!

0

8

Gravely 04521400

PIN, LM HANDLEBAR LOCKING

$7.99

$

In Stock, Qty 7

0

9

Gravely 04528600

HANDLEBAR ADJUSTMENT INSERT

$3.99

$

In Stock, Qty 12

0

10

Gravely 04735051

HANDLEBAR, LM

$62.99

$

Usually ships in 4-12 days

0

11

Gravely 04535400

HANDLE, DRIVE CONTROL

$5.99

$

In Stock, Qty 20+

0

12

Gravely 04535600

GUARD, FINGER - LH

$

$

Not available

13

Gravely 04535767

GUIDE, RECOIL ROPE

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 04549000

HOUSING, UPPER DRIVE CONTROL

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 04549100

HOUSING, LOWER DRIVE CONTROL

$11.99

$

In Stock, only 1 left!

0

16

Gravely 04551100

GUARD, FINGER - RH

$

$

Not available

17

Gravely 04575351

BRKT, CABLE - DRIVE

$23.99

$

Usually ships in 4-12 days

0

18

Gravely 04716251

COUPLER, LINK

$

$

Not available

19

Gravely 04716351

WIREFORM, BBC CONTROL

$52.99

$

Usually ships in 4-12 days

0

20

Gravely 05501132

BSHG, BBC LATCH

$

$

Not available

21

Gravely 05501208

BUSHING, NYLON .31, SPLIT

$17.99

$

Usually ships in 4-12 days

0

22

Gravely 06100219

SCR, MACHINE M6-1X45 PANHD

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 06100221

SCREW, MACHINE .25-20X2.00 PH PAN

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 07001709

BLT, SHLDR .50X1.30X.38-16 GR5

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 07027600

NUT, PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

26

Gravely 08300028

SPRG, COMPRESSION

$4.99

$

In Stock, Qty 7

0

27

Gravely 06222300

BLT-RDHDSQNK .25-20X1.50 G5 Y
(Superseded to 06200331)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

29

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06800122

PIN, CVS .250X.750X.609 YWZC

$

$

Not available

32

Gravely 07400101

SCR-TAP #12-14X.75 PLASTITE BLZC

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06400840

WSHR-FL-STL .385x.745x.030 YWZC
(Superseded to 06401107)

$2.49

$

In Stock, only 1 left!

0

34

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

37

Gravely 05717600

RG-RTNG-EXT .250 X .010

$0.99

$

In Stock, Qty 19

0
