911176 (XD3 LM SP) - Gravely 21" Walk-Behind Mower, Subaru, BBC (SN: 000101 - 025999) Engine And Blade Parts Diagram

21" Walk-Behind Mower, Subaru, BBC

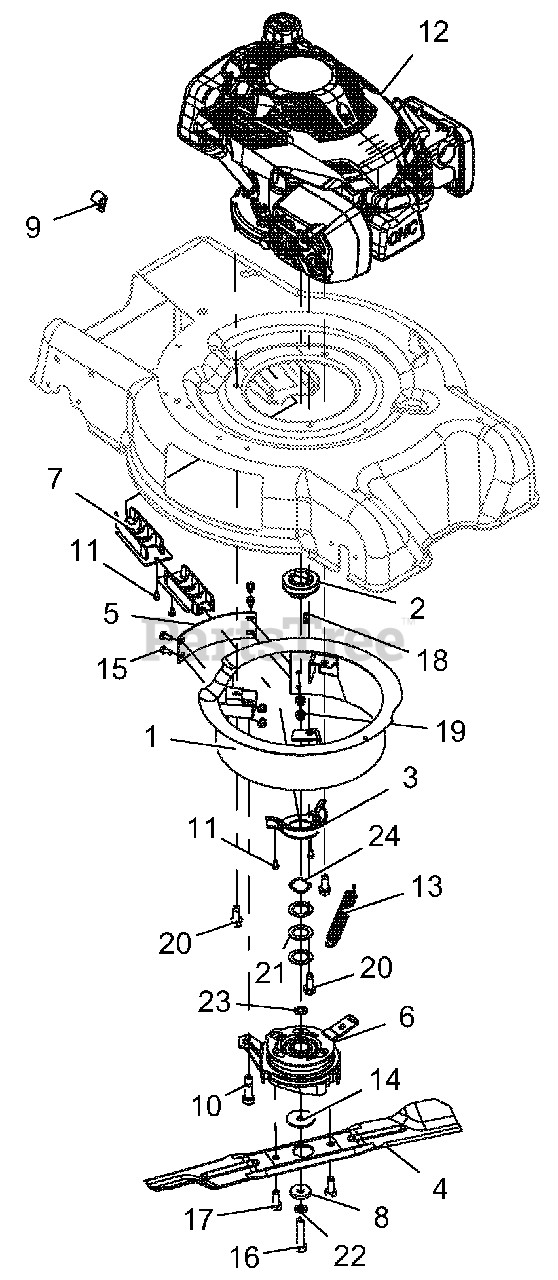

Engine And Blade Parts Diagram

  • Title
1

Gravely 04716451

WLDMT, ENCLOSURE - BBC

$

$

Not available

2

Gravely 04527000

PULLEY, GROUND DRIVE, LM

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 04533851

GUIDE, BELT CRANKSHAFT

$38.99

$

Usually ships in 4-12 days

0

4

Gravely 04692700

BLADE, MOWER 21" HIGH LIFT-BBC

$26.99

$

In Stock, only 1 left!

0

5

Gravely 04720451

BAFFLE, BBC

$58.99

$

Usually ships in 4-12 days

0

6

Gravely 04728100

CLUTCH, RAZOR BBC

$258.99

$

In Stock, only 1 left!

0

7

Gravely 04733800

GUIDE, BELT INNER

$9.49

$

In Stock, only 1 left!

0

8

Gravely 06400934

WASHER-FLAT-STL, .44 X 1.25 X .25 YWZC

$8.49

$

Usually ships in 4-12 days

0

9

Gravely 06900512

CLAMP, LM CABLE

$

$

Not available

10

Gravely 07001724

BLT, SHLDR 12MM X 25 W/M10 THD

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 07400033

SCR, TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 08200826

ENGINE, SUBARU BBC

$

$

Not available

13

Gravely 08300608

SPRG, EXTENSION BBC

$20.99

$

Usually ships in 4-12 days

0

14

Gravely 06400933

WSHR-FL-STL .469X1.75X.10 YWZC

$

$

Not available

15

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05948600

BLT-HEX .44-20X2.00 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 05943000

BLT-HEX M10 X 1.5X20 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 06600219

KEY-SQ .188X.188X.625

$1.99

$

In Stock, only 2 left!

0

19

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062 YWZC
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06400935

WSHR-FL-STL .450X.750X.033 YWZC

$

$

Not available

23

Gravely 06400926

WSHR-FL-STL .459X.750X.105 YWZC

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 09250700

WASHER, WAVE

$3.49

$

In Stock, only 1 left!

0
