911175 (LMSP) - Ariens Razor 21" Self-Propelled Walk-Behind Mower (SN: 000101 - 021563) Engine And Blade Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower

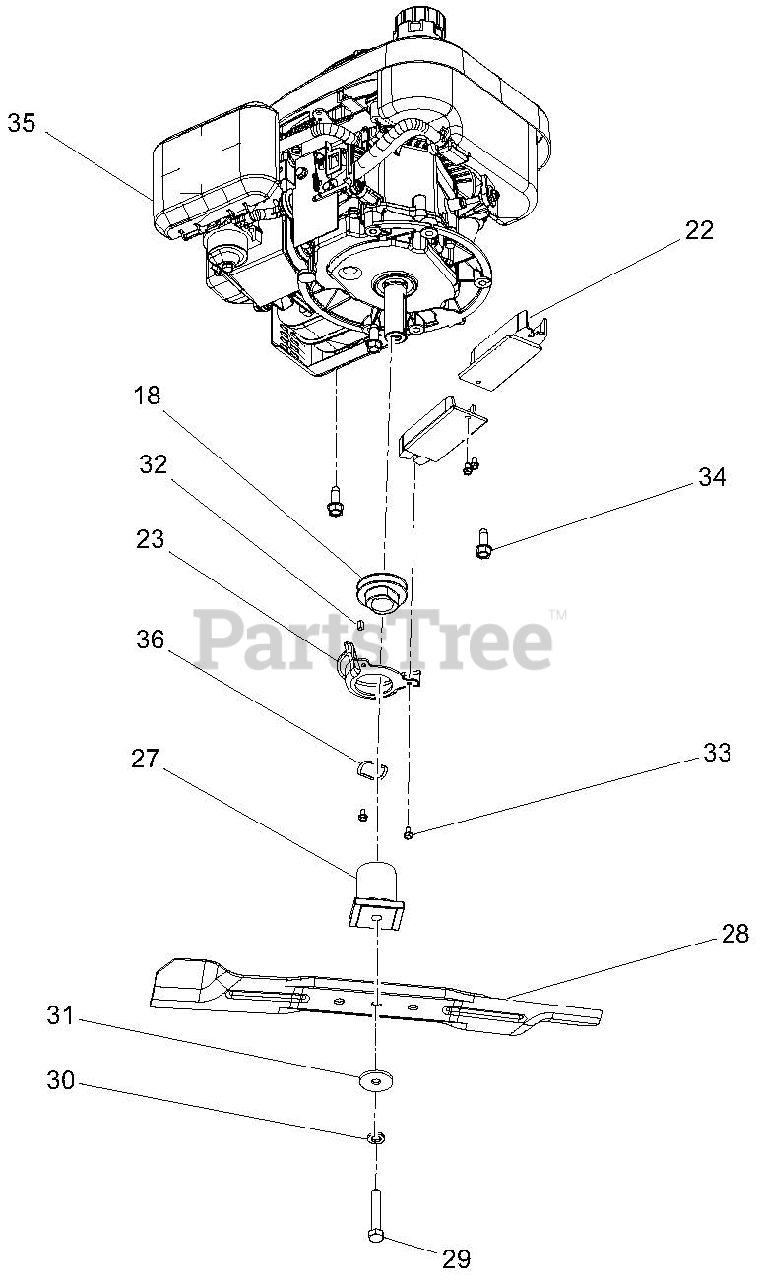

Engine And Blade Parts Diagram

  • Title

18

Ariens 04527000

PULLEY, GROUND DRIVE, LM

Note: (911175, 179, 181)

$28.99

$

Usually ships in 4-12 days

0

22

Ariens 04533700

GUIDE, BELT INNER
(Superseded to 04733800)

$9.49

$

In Stock, only 1 left!

0

23

Ariens 04533851

GUIDE, BELT CRANK

Note: (911175, 179, 181)

$38.99

$

Usually ships in 4-12 days

0

27

Ariens 04539400

ADAPTER, BLADE

$16.99

$

Usually ships in 4-12 days

0

28

Ariens 04544400

BLADE, MOWER 21" HIGH LIFT

$25.99

$

In Stock, Qty 20+

0

29

Ariens 05901515

@BLT-HEX .4375-20X2.25 GR8 YWZ

$4.49

$

In Stock, only 4 left!

0

30

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

31

Ariens 06400925

WSHR-FL-STL .4375X1.50X.125 YZ

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 06600219

KEY-SQ .188X.188X.625

Note: (911175, 179, 181)

$1.99

$

In Stock, only 2 left!

0

33

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

Note: (911175, 179, 181)

$3.49

$

Usually ships in 4-12 days

0

33

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

Note: (911173)

$3.49

$

Usually ships in 4-12 days

0

34

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

35

Ariens 21110001

ENGINE,SERVICE,AC SERIES

Note: (911173, 175, 181)

$409.99

$

Usually ships in 4-12 days

0

35

Ariens 21110002

ENGINE,SERVICE,AC SERIES,ELEC

Note: (911179)

$465.99

$

Usually ships in 4-12 days

0

36

Ariens 09250700

WASHER - WAVE 1.09X1.37X.016

Note: (911175, 179, 181)

$3.49

$

In Stock, only 1 left!

0
