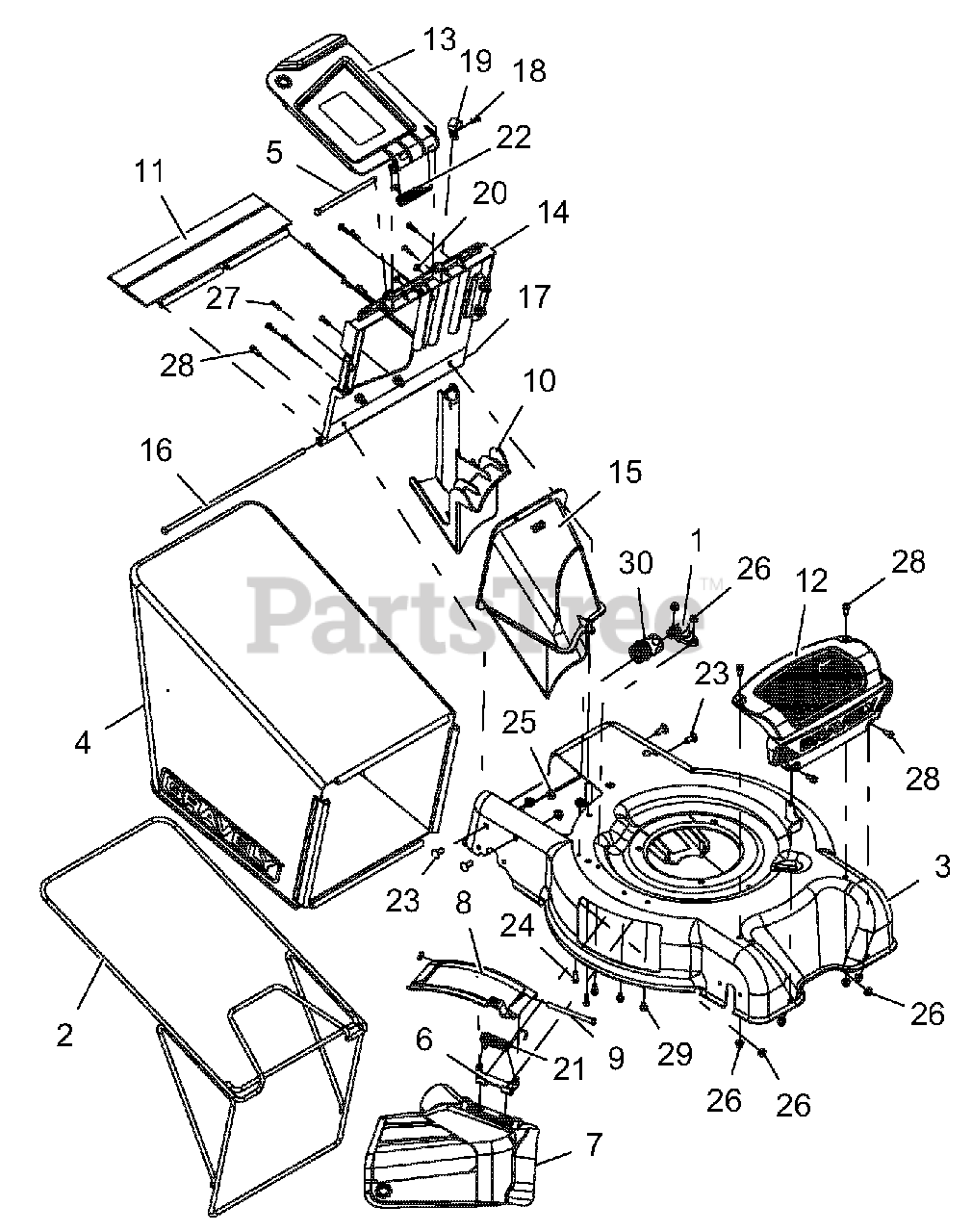

911174 (XD3 LM SP) - Gravely 21" Walk-Behind Mower, Subaru (SN: 022659 - 023846) Mower Deck And Bagger Parts Diagram

21" Walk-Behind Mower, Subaru

Mower Deck And Bagger Parts Diagram

  • Title

1

Gravely 04428900

ASM, WASHOUT PORT W/ O-RING

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 04520653

FRAME, BAGGER
(Superseded to 04718953)

$139.99

$

Usually ships in 4-12 days

0

3

Gravely 51121400

WLDMT, DECK XD3

$398.99

$

Usually ships in 4-12 days

0

4

Gravely 04544200

BAGGER, GRASS GRAVELY

$34.99

$

In Stock, only 1 left!

0

5

Gravely 00475800

PIN, 5/16 x 5.50

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 04514651

BRKT, HINGE LM

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 04514800

CHUTE, SIDE DISCHARGE - LM

$22.99

$

In Stock, only 1 left!

0

8

Gravely 04514900

COVER, SIDE DISCHARGE - LM
(Superseded to 51122400)

$47.99

$

In Stock, only 2 left!

0

9

Gravely 04534000

PIN, SIDE DISCHARGE

$8.99

$

In Stock, only 1 left!

0

10

Gravely 04534300

PLUG, MULCH

$17.99

$

In Stock, only 1 left!

0

11

Gravely 04534400

GUARD, REAR
(Superseded to 51122800)

$82.99

$

Usually ships in 4-12 days

0

12

Gravely 04534500

TRIM, FRONT

$15.99

$

Usually ships in 4-12 days

0

13

Gravely 51116800

DOOR, REAR

$

$

Not available

14

Gravely 04534700

HANGER, BAG
(Superseded to 51122800)

$82.99

$

Usually ships in 4-12 days

0

15

Gravely 04547900

CHUTE, REAR DISCHARGE

$35.99

$

Usually ships in 4-12 days

0

16

Gravely 04556200

ROD, REAR GUARD

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 06514900

NUT, PUSH .312

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06713500

PIN, HAIR INT .08 x .18 x 1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06900512

CLAMP, LM CABLE

$

$

Not available

20

Gravely 07500301

PLUG, 5/16 HOLE, .125 MATL PLASTIC

$

$

Not available

21

Gravely 08300535

SPRG, TORSION
(Superseded to 08300614)

$9.49

$

In Stock, only 1 left!

0

22

Gravely 08322400

SPRG, TORSION

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 06215700

BLT-RDHDSQNK .31-18 x .75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 05900338

BLT-HEX .25-20 x .63 GR5 YWZC
(Superseded to 05901722)

$

$

Not available

25

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 07400101

SCR-TAP #12-14 x .75 PLASTITE BLZC

$0.99

$

In Stock, Qty 20+

0

28

Gravely 07400103

SCR-TAP .25-20 x .62 HWH TR YWZ
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

29

Gravely 07411600

SCR-TAP .25-20 x .37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 04396500

Coupling, Quick Disconnect

$21.99

$

In Stock, only 2 left!

0
