911174 (XD3 LM SP) - Gravely 21" Walk-Behind Mower, Subaru (SN: 022636 - 022658) Handlebars And Controls Parts Diagram

21" Walk-Behind Mower, Subaru

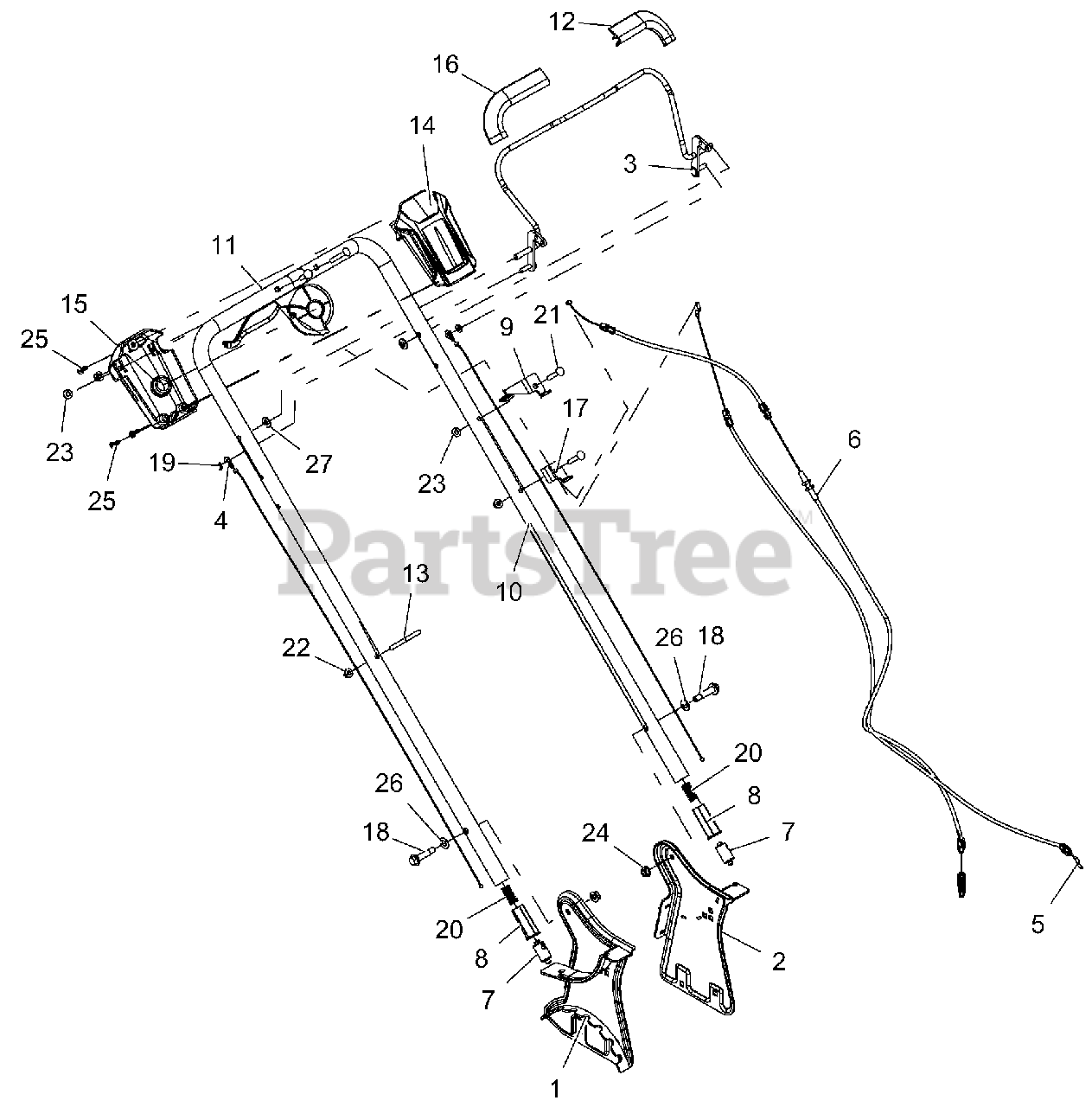

Handlebars And Controls Parts Diagram

  • Title
1

Gravely 04516351

WLDMT, RH SIDE PLATE

$190.99

$

Usually ships in 4-12 days

0

2

Gravely 04516451

WLDMT, LH SIDE PLATE

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 04535553

BAIL, OPC

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 06900528

CABLE, LM HANDLE ADJUST

$6.99

$

In Stock, only 4 left!

0

5

Gravely 06900529

CABLE, OPC

$12.99

$

In Stock, only 1 left!

0

6

Gravely 06900535

CABLE, DRIVE CONTROL

$36.99

$

In Stock, only 2 left!

0

7

Gravely 04521400

PIN, LM HANDLEBAR LOCKING

$7.99

$

In Stock, Qty 7

0

8

Gravely 04528600

HANDLEBAR ADJUSTMENT INSERT

$3.99

$

In Stock, Qty 12

0

9

Gravely 04533651

BRKT, CABLE ANCHOR

$45.99

$

In Stock, only 1 left!

0

10

Gravely 04535351

HANDLEBAR,

$

$

Not available

11

Gravely 04535400

HANDLE, DRIVE CONTROL

$5.99

$

In Stock, Qty 20+

0

12

Gravely 04535600

GUARD, FINGER - LH

$

$

Not available

13

Gravely 04535767

GUIDE, RECOIL ROPE

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 04549000

HOUSING, UPPER DRIVE CONTROL

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 04549100

HOUSING, LOWER DRIVE CONTROL

$11.99

$

In Stock, only 1 left!

0

16

Gravely 04551100

GUARD, FINGER - RH

$

$

Not available

17

Gravely 04575351

BRKT, CABLE - DRIVE

$23.99

$

Usually ships in 4-12 days

0

18

Gravely 07001709

BLT, SHLDR .50 x 1.30 x .38-16 GR5

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 07027600

NUT, PUSH .25 x .50 O.D.

$2.49

$

In Stock, Qty 9

0

20

Gravely 08300028

SPRG, COMPRESSION

$4.99

$

In Stock, Qty 7

0

21

Gravely 06222300

BLT-RDHDSQNK .25-20 x 1.50 G5 Y
(Superseded to 06200331)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

23

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07400101

SCR-TAP #12-14 x .75 PLASTITE BLZC

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06400840

WSHR-FL-STL .385 x .745 x .030 YWZC
(Superseded to 06401107)

$2.49

$

In Stock, only 1 left!

0

27

Gravely 06437200

WSHR-FL-STL .344 x .688 x .065 YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
