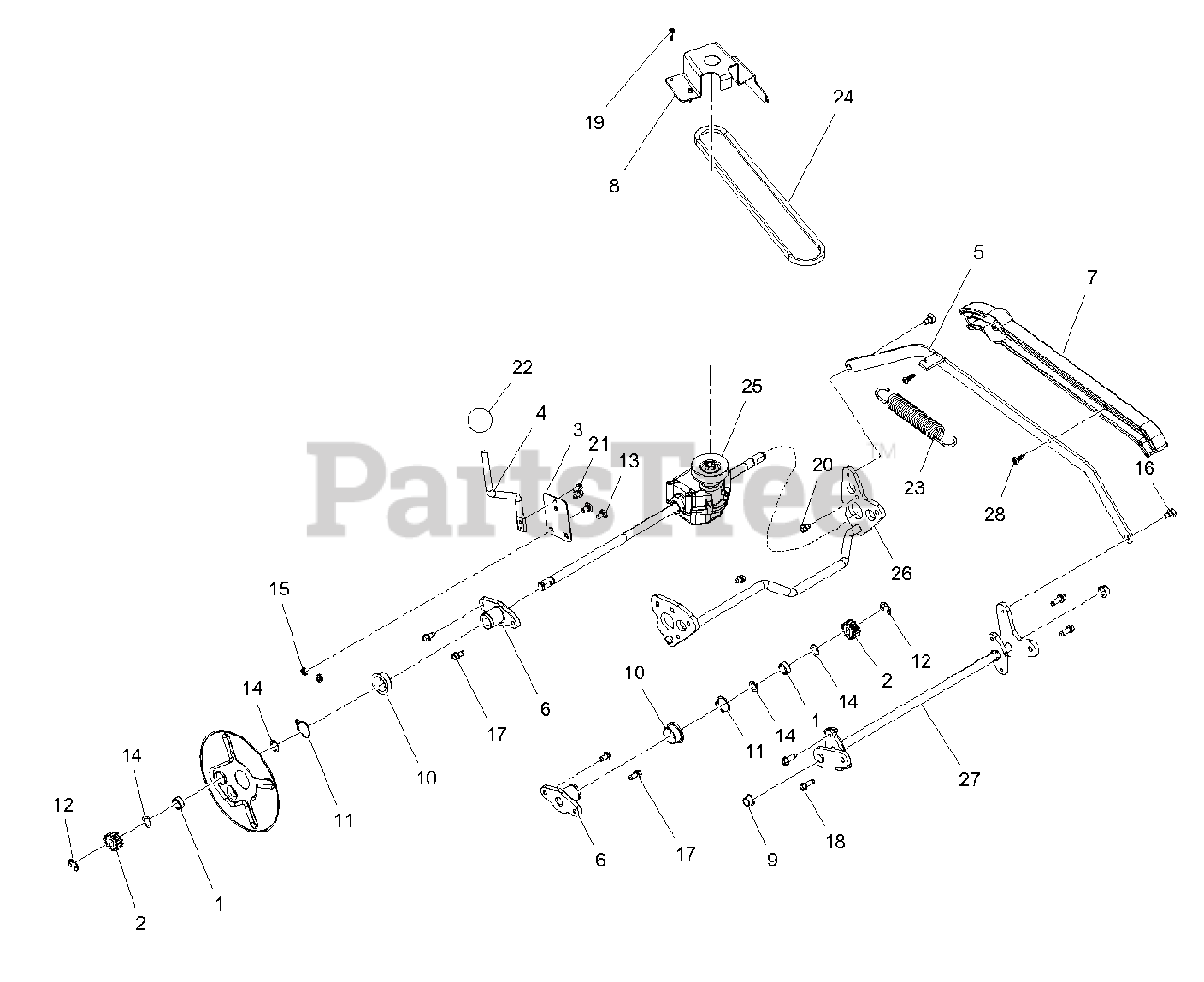

911174 (XD3 LM SP) - Gravely 21" Walk-Behind Mower, Subaru (SN: 021284 - 022635) Transmission (911174, 178) and Height of Cut Parts Diagram

21" Walk-Behind Mower, Subaru

Transmission (911174, 178) and Height of Cut Parts Diagram

  • Title
1

Gravely 00211100

SPCR, PM .500ID X .750D X .321

$3.49

$

In Stock, Qty 5

0

2

Gravely 04507500

GEAR, PINION, LM WHEEL DRIVE

$6.99

$

In Stock, Qty 20+

0

3

Gravely 04513751

PLATE, HOC SPRING

$33.99

$

In Stock, only 1 left!

0

4

Gravely 04516167

LEVER, HOC ADJUST

$146.99

$

Usually ships in 4-12 days

0

5

Gravely 04516253

LINK, HOC CONNECT

$

$

Not available

6

Gravely 04516900

HUB, LM REAR AXLE

$17.99

$

In Stock, Qty 20+

0

7

Gravely 04534200

COVER, LINK ROD

$

$

Not available

8

Gravely 04534951

GUIDE, BELT TRANSMISSION

$

$

Not available

9

Gravely 05500026

BSHG, SPLIT NYLON

$2.99

$

In Stock, Qty 20+

0

10

Gravely 05501124

BSHG, FLANGE 1.0x1.25x.50x1.375

$3.99

$

In Stock, Qty 20+

0

11

Gravely 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 1 left!

0

12

Gravely 05710200

RG-RTNG-EXT .500X.042 €

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06220600

@BLT-RDHDSQNK .25-20X.50 G5 Y
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06400015

WASHER-FLAT-STL, .500 X .750 X .020

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500635

@NUT-LK-CTR-JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 07001708

BOLT, SHLDR .320X.210X.25-20 SELF-TAPPING

$2.99

$

In Stock, only 2 left!

0

17

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07400111

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

19

Gravely 07400112

SCR-TAP #10-14X.75 PLASTITE BLZC

$1.99

$

Usually ships in 4-12 days

0

20

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

22

Gravely 07533500

KNOW, BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 7

0

23

Gravely 08316800

SPRG, EXTENSION

$34.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, Qty 20+

0

25

Gravely 04509200

TRANSAXLE, AUTOMATIC, LM, 9:1

$79.99

$

In Stock, only 1 left!

0

26

Gravely 04515967

WLDMT, LM REAR AXLE

$

$

Not available

27

Gravely 04516067

WLDMT, LM FRONT AXLE

$103.99

$

In Stock, only 1 left!

0

28

Gravely 07400101

SCR-TAP #12-14X.75 PLASTITE BLZC

$0.99

$

In Stock, Qty 20+

0
